3
10.1" TOUCHSCREEN-DISPLAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB-LCD10-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Joy-it RB-LCD10-2

Summary of Contents for Joy-it RB-LCD10-2

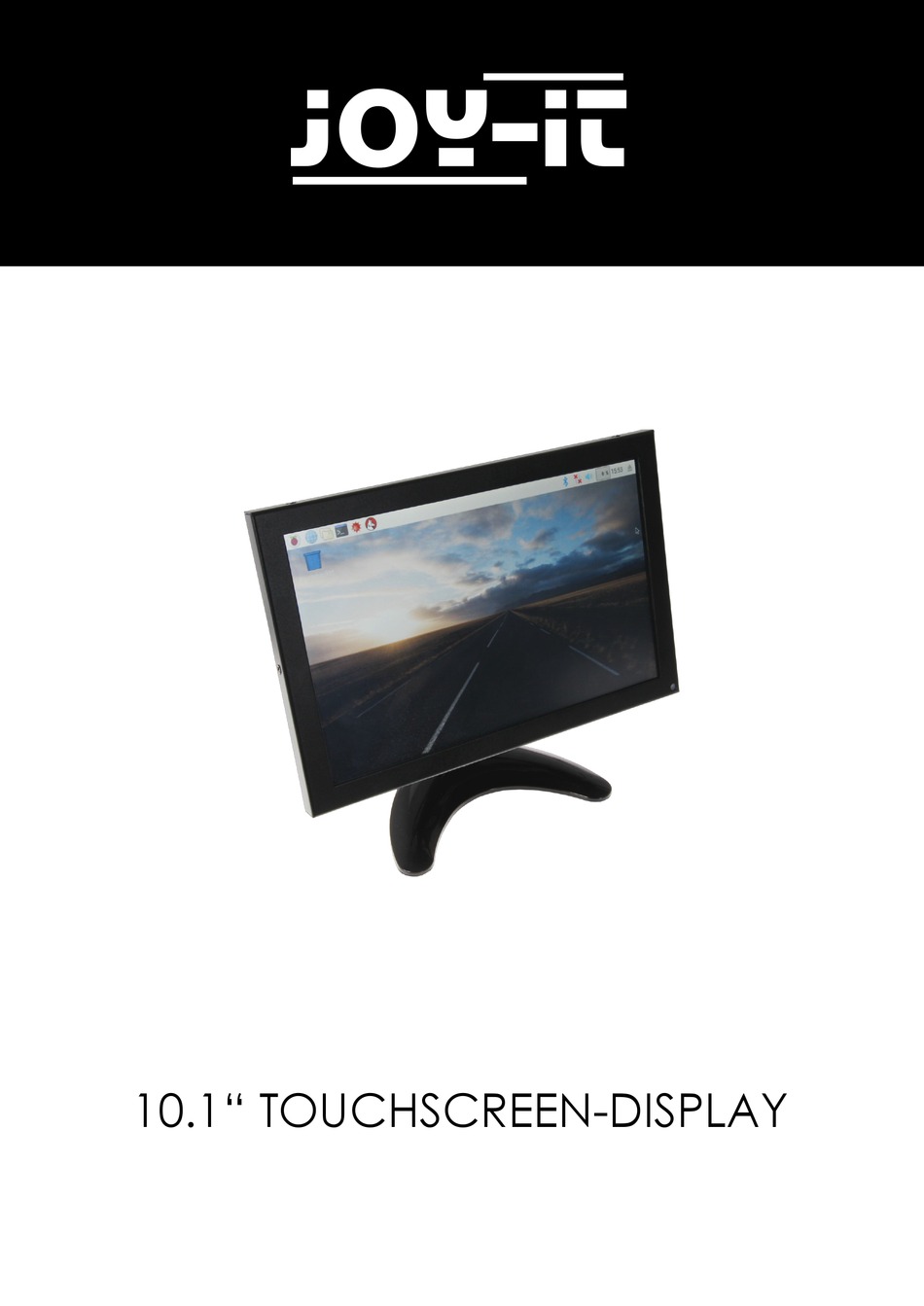

  • Page 1 10.1“ TOUCHSCREEN-DISPLAY...

  • Page 2: Table Of Contents

    Setting up the display Mounting the display Assembly of a Raspberry Pi Connecting to a device Use of the display Installing the software Manual Installation & Calibration Using with a Windows PC Additional information Support Published: 28.06.2019 Copyright by Joy-IT...

  • Page 3: Setting Up The Display

    (near the USB label). Secure the socket neck by tightening the round washer located directly in front of the metal rectangle. Now insert the socket neck into the stand and screw it tight with the screws provided. Published: 28.06.2019 Copyright by Joy-IT...

  • Page 4: Assembly Of A Raspberry Pi

    After you have mounted your Raspberry Pi, place the mounting platform on the back of the display and mount it (screw holes 9-Vesa). The display is now completely assembled and should correspond to the following picture. Published: 28.06.2019 Copyright by Joy-IT...

  • Page 5: Connecting To A Device

    In order to be able to use the touch functions, the USB cable must also be connected to the display and the device to be used. Attention! Do not mistake the USB ports. To be able to use the touch functions, the USB port with the inscription "Touch" must be used on the display. Published: 28.06.2019 Copyright by Joy-IT...

  • Page 6: Use Of The Display

    10.1“ TOUCHSCREEN DISPLAY USE OF THE DISPLAY Installing the software Install the FBTFT image on your SD card with the help of the Win32 Disk Imager program. The image can be downloaded here: RB-LCD10-2_Image-Download Published: 28.06.2019 Copyright by Joy-IT...

  • Page 7: Manual Installation & Calibration

    To ensure that the image is displayed correctly when the display is switched on with the Raspberry Pi, the "config.txt" file must first be edited. Open it with the following command: sudo nano /boot/config.txt Published: 28.06.2019 Copyright by Joy-IT...
  • Page 8 /usr/share/X11/xorg.conf.d/99-calibration.conf Enter the following settings in this file: Section "InputClass" Identifier "calibration" MatchProduct "eGalax Inc. USB TouchController" Option "Calibration" "4094 -35 4026 10" Option "SwapAxes" "1" EndSection Restart your Raspberry Pi: sudo reboot Published: 28.06.2019 Copyright by Joy-IT...
  • Page 9 "eGalax Inc. USB TouchController" Option "Calibration" "4094 -35 4026 10" Driver "evdev" EndSection Now you need to restart your Raspberr Pi for the last time: sudo reboot Now the touch function is ready to use. Published: 28.06.2019 Copyright by Joy-IT...

  • Page 10: Using With A Windows Pc

    In order to ensure the touch function of the display even when using several screens, the multiple monitor function must be activated in the eGalax Touch program. To do this, first open the program: You must then select the Display tab: Published: 28.06.2019 Copyright by Joy-IT...
  • Page 11 10.1“ TOUCHSCREEN DISPLAY Now activate the multiple monitor function: After activation, you will be prompted to perform another calibration. If this is not done automatically, proceed as follows: Select the Tools tab: Published: 28.06.2019 Copyright by Joy-IT...
  • Page 12 If there is a problem with the USB touch screen driver detection, the eGalax Touch driver must be uninstalled and reinstalled. During the installation, make sure that you have connected the USB cable to the computer and the touch interface of the display. Published: 28.06.2019 Copyright by Joy-IT...

  • Page 13: Additional Information

    Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.

  • Page 14: Support

    We are also support you after the purchase. If you still have questions or encounter any problems, we are also available by e-mail, telephone and ticket support system. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Phone: +49 (0)2845 98469 – 66 (9:30 - 17:00 o‘clock) For further information please visit our website: www.joy-it.net Published: 28.06.2019 Copyright by Joy-IT...
