Discount Car Stereo C6-HF Quick Start Install Manual

Bluetooth for c6 corvette with xm tuner module
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
Driving without distraction is a necessity for a safer driving experience.
C6-HF
Quick Start Bluetooth Install Guide for C6 Corvette with XM Tuner Module
Created: July 17, 2016
Revised December 27, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C6-HF and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo C6-HF

Summary of Contents for Discount Car Stereo C6-HF

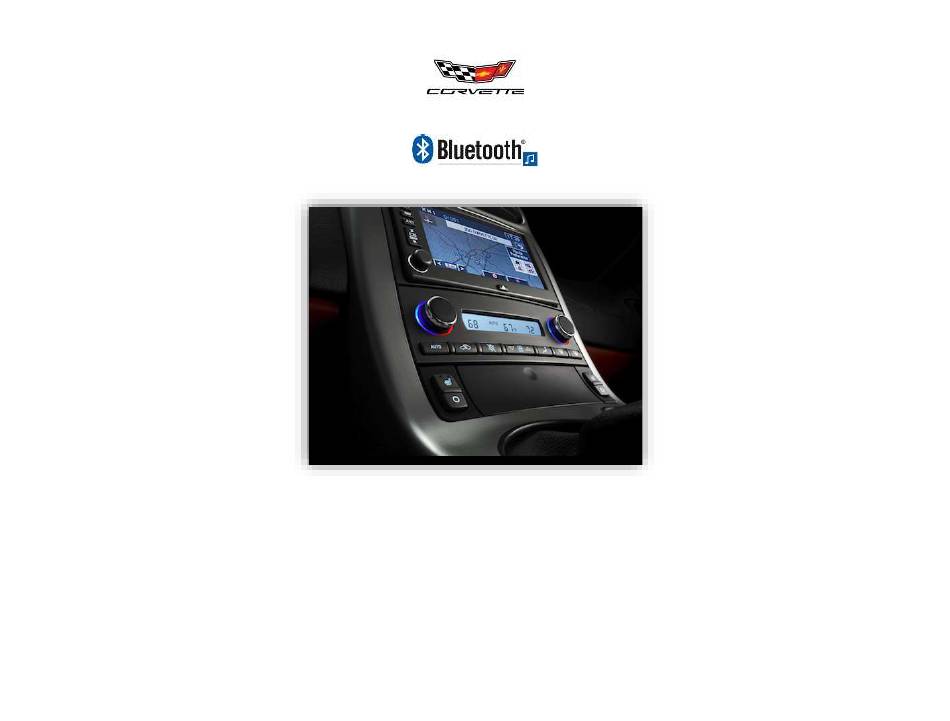

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Driving without distraction is a necessity for a safer driving experience. C6-HF Quick Start Bluetooth Install Guide for C6 Corvette with XM Tuner Module Created: July 17, 2016 Revised December 27, 2019...

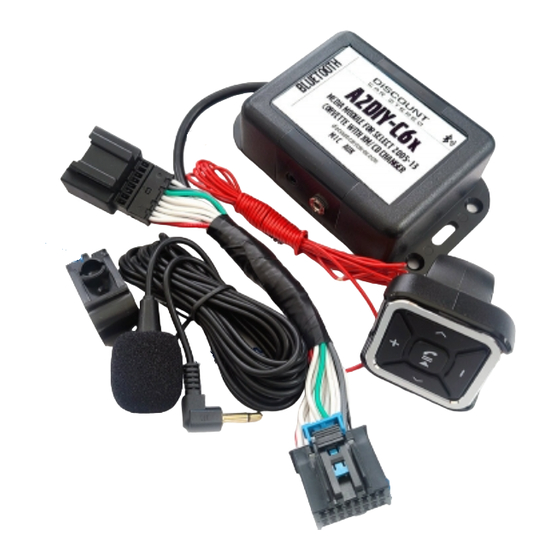

  • Page 2 If your C6 has an XM Tuner (with or without subscription) and interested in adding Bluetooth capabilities without changing factory radio you should consider adding the C6-HF. Safety comes first when you’re on the road, so having an intuitive and easy to use Bluetooth kit is essential to reducing driver distraction.
  • Page 3 (Mp3 player, iPod etc.) on the car system. With this option XM playback is inhibited, however XM Tuner is still required and remains connected. Noteworthy: The C6-HF module is capable of retaining XM subscription or provide an Aux input (one or the other; not both) Fig. 3 1.
  • Page 4 Fig. 7 Fig. 8 3.5male to male audio cable We suggest one of the following fuse circuits: (circled in fuse fox diagram) 6. Route installation harness red wire to fuse panel under passenger 1. HTD Seat/WPR RLY (Heated Seat/Wiper Relay) floor board and tap to included Add-A-Fuse circuit (See Fig.8).

  • Page 5: Usb Charging Port

    8. Consider where to install control/mic button. Keep in mind the control USB CHARGING PORT button must be within reach of the driver and facing driver for voice Module includes a USB Charging port. Should you decide to use it, we suggest commands and phone dialog (cable is 6ft.
  • Page 6 USB with Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. of radio and mount USB support bracket (See Fig. 15) to surface using adhesive/tape or screws. Fig. 12 Module USB port Push USB (See Fig. 13) until it snaps in place and flush with mounting surface (See Fig.

  • Page 7: Bluetooth Operation

    Bluetooth Pairing and Connection Use radio volume button to set playback level This process is required the very first time you use the C6-HF. After initial pairing, the C6-HF will automatically reconnect with the paired phone upon Music Commands entering vehicle.

  • Page 8: Frequent Asked Questions

    NO; XM ready means radio is capable of controlling optional XM Tuner but tuner is not currently installed. Early C6 were pre-wired for this option, but for the C6-HF to work, vehicle must have an XM Tuner module (with or without subscription).
  • Page 9 Email support@discountcarstereo.com © 1995-Dec-19 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
