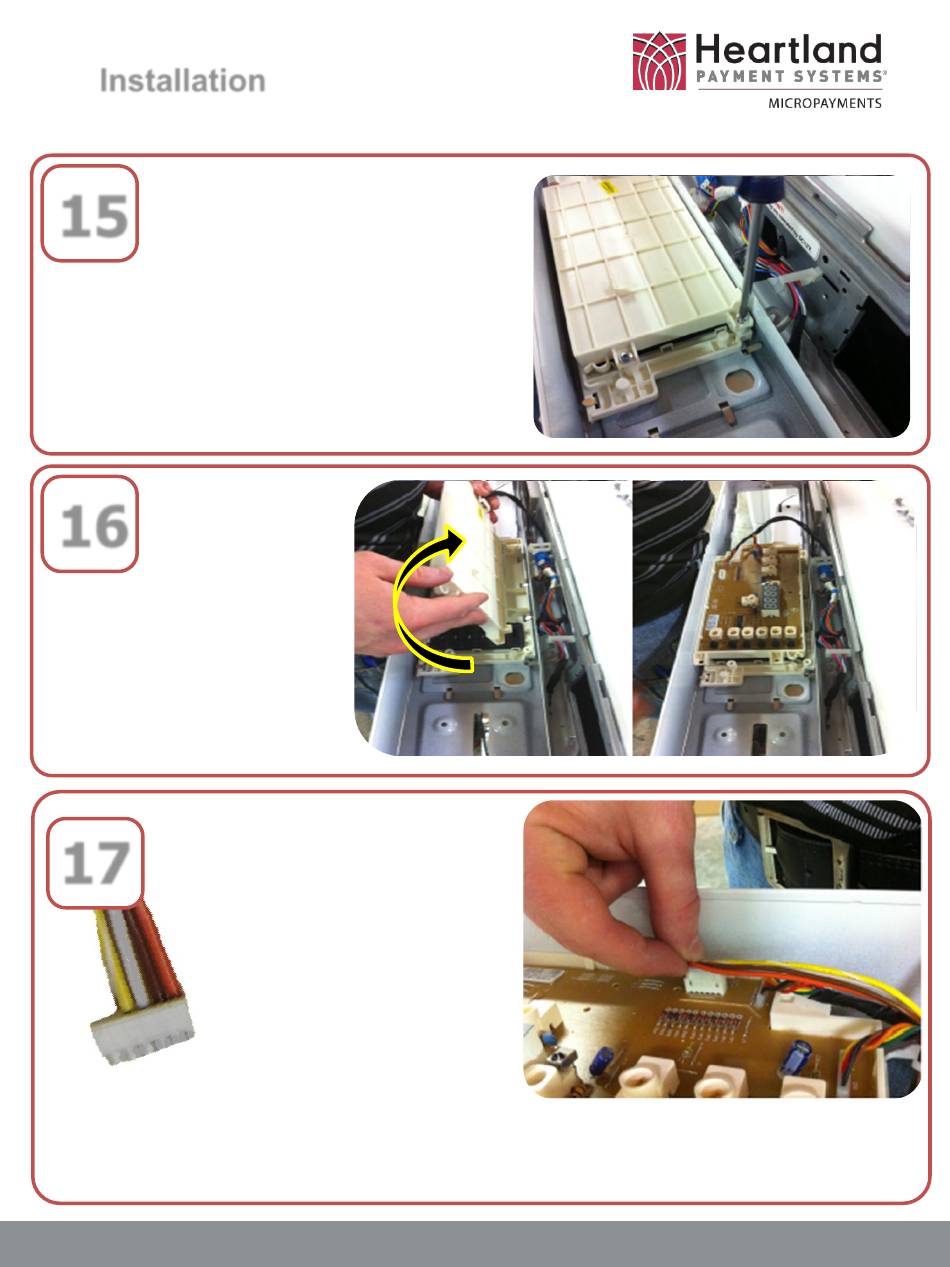

Installation
15
With the Control Panel flipped
down, locate the white controller
box. On the controller box will be
4 Phillips head machine screws
located 2 to each side. Remove
the screws from the unit and
set aside for re-installation
16
Flip the
controller
box cover
over as
shown.
17 Looking down on top of
the LG Controller board,
in the bottom left hand
corner find the
connector labeled
"ESUDS OUT PIN2."
Using the WaveReader Interface Cable, locate the connector with four wires attached:
brown, orange, yellow, and white. Plug the connector into "ESUDS OUT PIN2."
