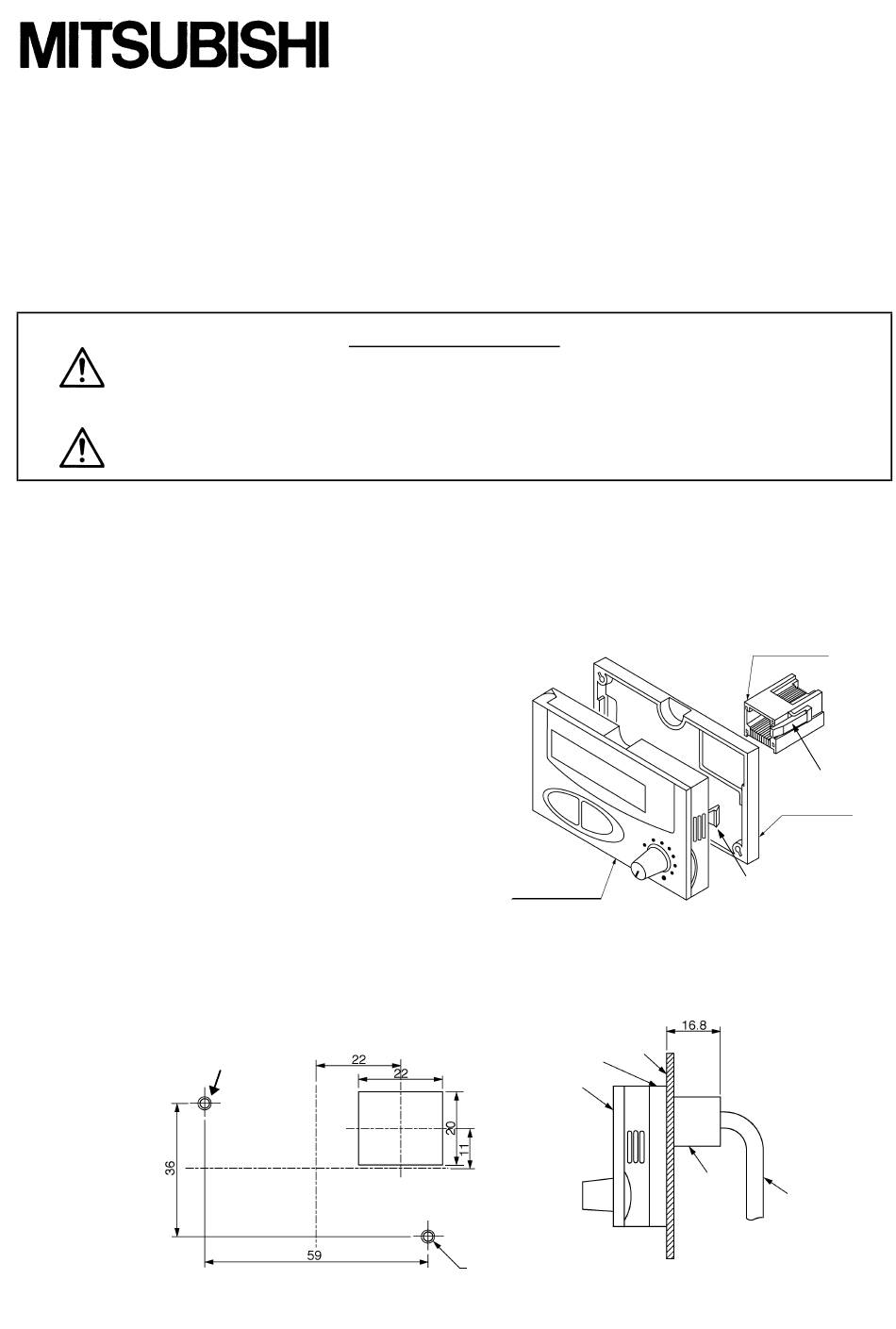

Mitsubishi FR-E5P Quick Start Manual

TRANSISTORIZED INVERTER
Control Panel Rear Cover and Adapter Set
Thank you for purchasing the control panel rear cover and adapter set. This instruction manual
describes handling and considerations for using this product. As errors in handling will cause
unforeseen trouble, before using the product be sure to read this instruction manual thoroughly, so that
the product may be used correctly.
Please ensure that this instruction manual is delivered to the end user of the product.
Do not touch the inverter when the power is ON, during operation, and for some time
after the power has been turned OFF, as the inverter will be very hot. Failure to observe
this could lead to burns.
Do not drop the control panel rear cover and adapter set or subject it to a strong impact.
This control panel rear cover and adapter set is used when the control panel is removed from the
inverter main unit and installed on the panel face of another storage panel.

1. Installation

1.1 Installing and removing the control panel cover and adapter set
(1) Fix by inserting the claws of the control panel
into the control panel rear cover.
To remove, press in on the sides of the
control panel to release the claws.
(2) Insert the adapter into the control panel until
a "click" is heard.
To remove, press in on the claws of the
adapter and pull off.

1.2 Installing the control panel unit on a single panel

Panel cut dimensions drawing

Safety precautions

M3 screw
Front view
<FR-E5P>
Control
panel
Rear cover
Control
panel
Hole
M3 screw
Adapter
Claw
Panel
Adapter
Cable
Claw
Rear cover
(Unit: mm)
