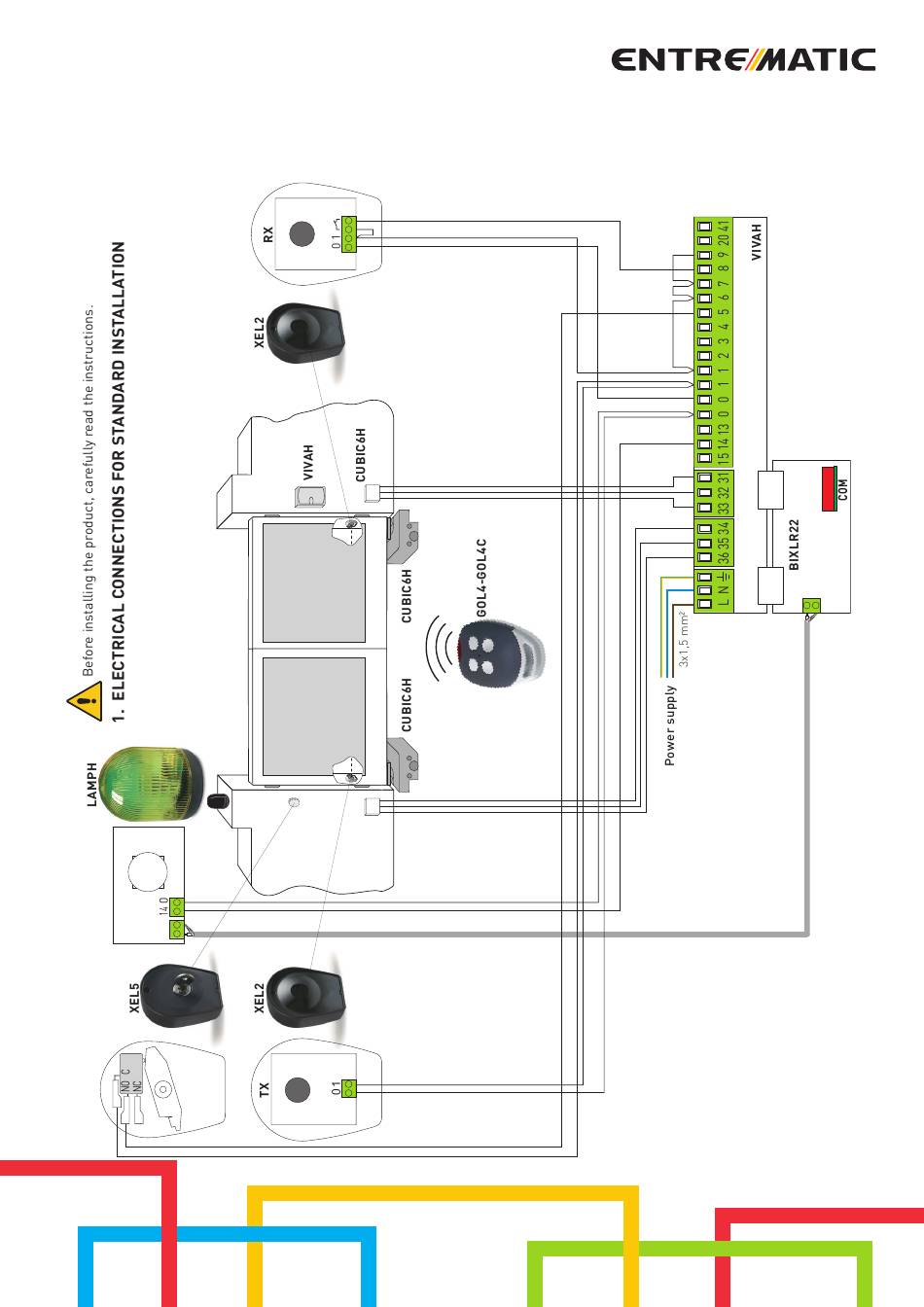

- Page 1 CUBIC6H - VIVAH Quick reference IP1956 • 2015-07-16 4x0,5 mm² 3x1,5 mm² (max 10 m) 3x1,5 mm² (max 10 m) 2x1,5 mm² RG58 (max 10 m) 4x0,5 mm² 4x0,5 mm² www.ditecentrematic.com...
- Page 2 2. Limit switches connection (optional) Motor 24V= Closing limit switch adjustment Opening limit switch adjustment 1N4007 3. CUBIC6H motors connection 36 35 MOTOR 2 MOTOR 1 33 32 MOTOR 2 MOTOR 1 24V= 24V= MOTOR 1 MOTOR 2 33 32...
- Page 3 4.1 Usage without limit switches MOTOR 2 MOTOR 1 OPENING CYCLE FC = ON VM speed 1° setting M1 time 2° setting MOTOR 2 MOTOR 1 M2 time 2° CLOSING CYCLE setting Slow down speed after M1/M2 time setting. 4.2. Usage with slow down limit switches (optional) MOTOR 2 MOTOR 1 FC = ON...
- Page 4 OPENING RADIO MODE 2 3 4 5 6 DIP1 = OFF JR14 STEP BY STEP RADIO MODE CUBIC6H SETTING 36 35 33 32 31 0 0 1 1 2 3 4 5 6 7 8 9 20 41 6. Radio enabling 1°...
