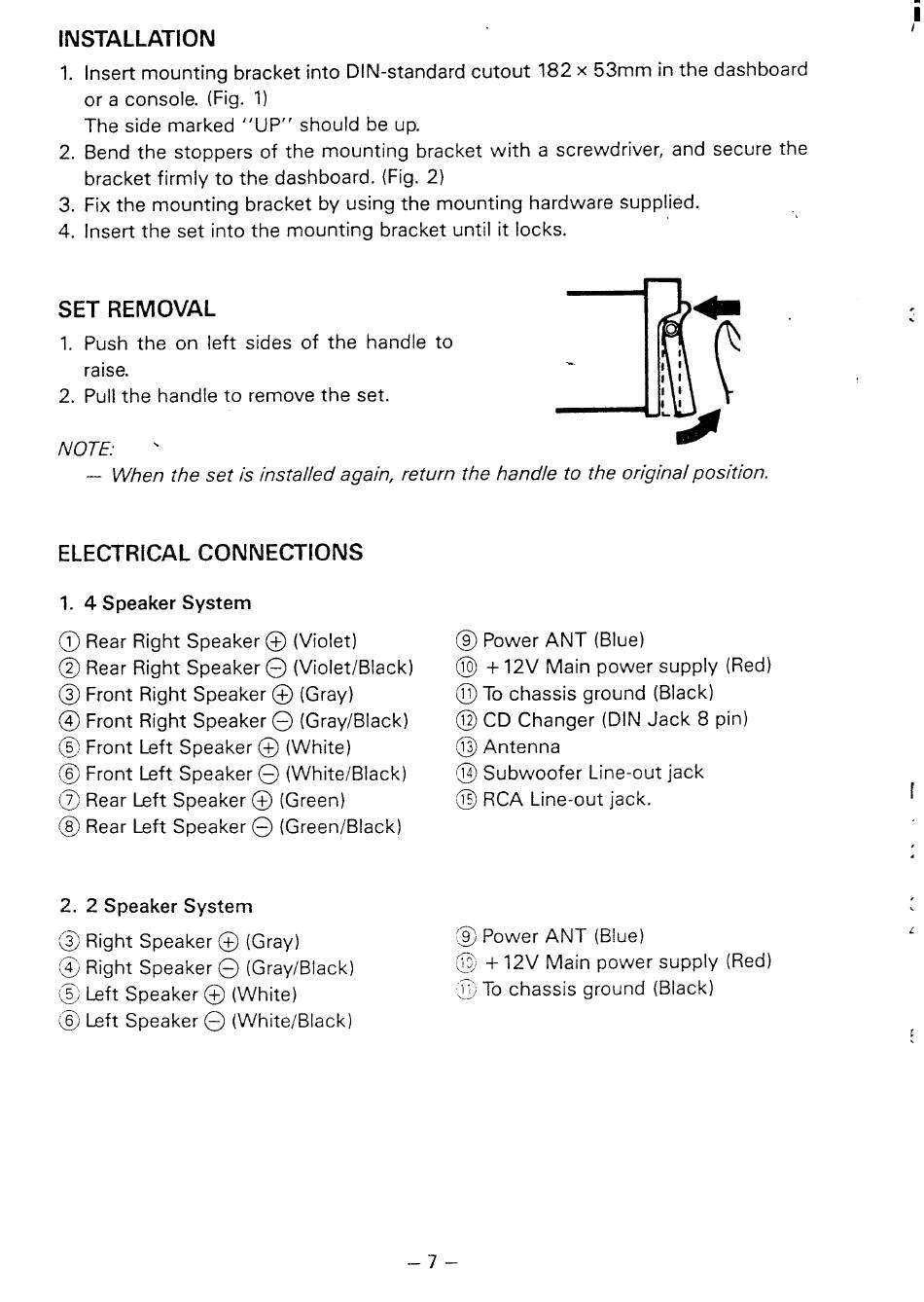

INSTALLATION
1.
2.
3.
4.
Insert mounting
bracket into D! N-standard
cutout
182x
53mm
in the dashboard
or a console. (Fig. 1)
The side marked "UP"
should be up.
Bend the stoppers
of the mounting
bracket with a screwdriver,
and secure the
bracket firmly to the dashboard.
(Fig. 2)
Fix the mounting
bracket by using the mounting
hardware
supplied.
Insert the set into the mounting
bracket until it locks.
-,
SET REMOVAL
1.
Push the on left sides of the handle to
raise.
2. Pull the handle to remove the set.
NOTE:
'
"t
"
- f
II
11
II
II
L
Eil#
When the set is installed again, return the handle to the original position.
ELECTRICAL CONNECTIONS
1.
4 Speaker System
(i) Rear Right Speaker @ (Violet)
@ Rear Right Speaker@
(Violet/Black)
@ Front Right Speaker@
(Gray)
@ Front Right Speaker@
(Gray/Black)
@ Front Left Speaker@
(White)
@ Front Left Speaker@
(White/Black
@ Rear Left Speaker@
(Green)
@ Rear Left Speaker@
(Green/Black
2. 2 Speaker System
@ Right Speaker@
(Gray)
@) Right Speaker @ (Gray/Black)
~
Left Speaker @ (White)
@ Left Speaker@
(White/Black)
)
@ Power ANT (Blue)
@ + 12V Main power supply (Red)
@To
chassis ground (Black)
@CD
Changer
(DIN Jack 8 pin)
@ Antenna
t@ Subwoofer
Line-out jack
@ RCA Line-out jack.
f~ Power ANT (Blue)
@j + 12V Main power supply (Red)
~j TO chassis ground (Black)
–7–
