TANDBERG 8000 MXP Installation Sheet
  1. Manuals
  2. Brands
  3. TANDBERG Manuals
  4. Conference System
  5. 8000 MXP
  6. Installation sheet

TANDBERG 8000 MXP Installation Sheet

Hide thumbs Also See for 8000 MXP:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Installation Sheet

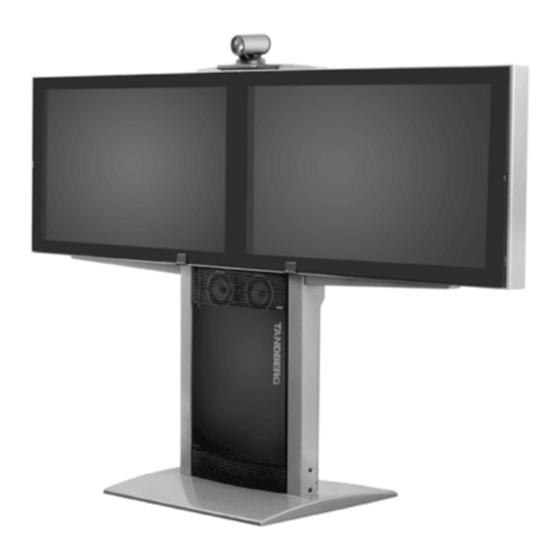

The TANDBERG 8000
MXP
1.
Box 1

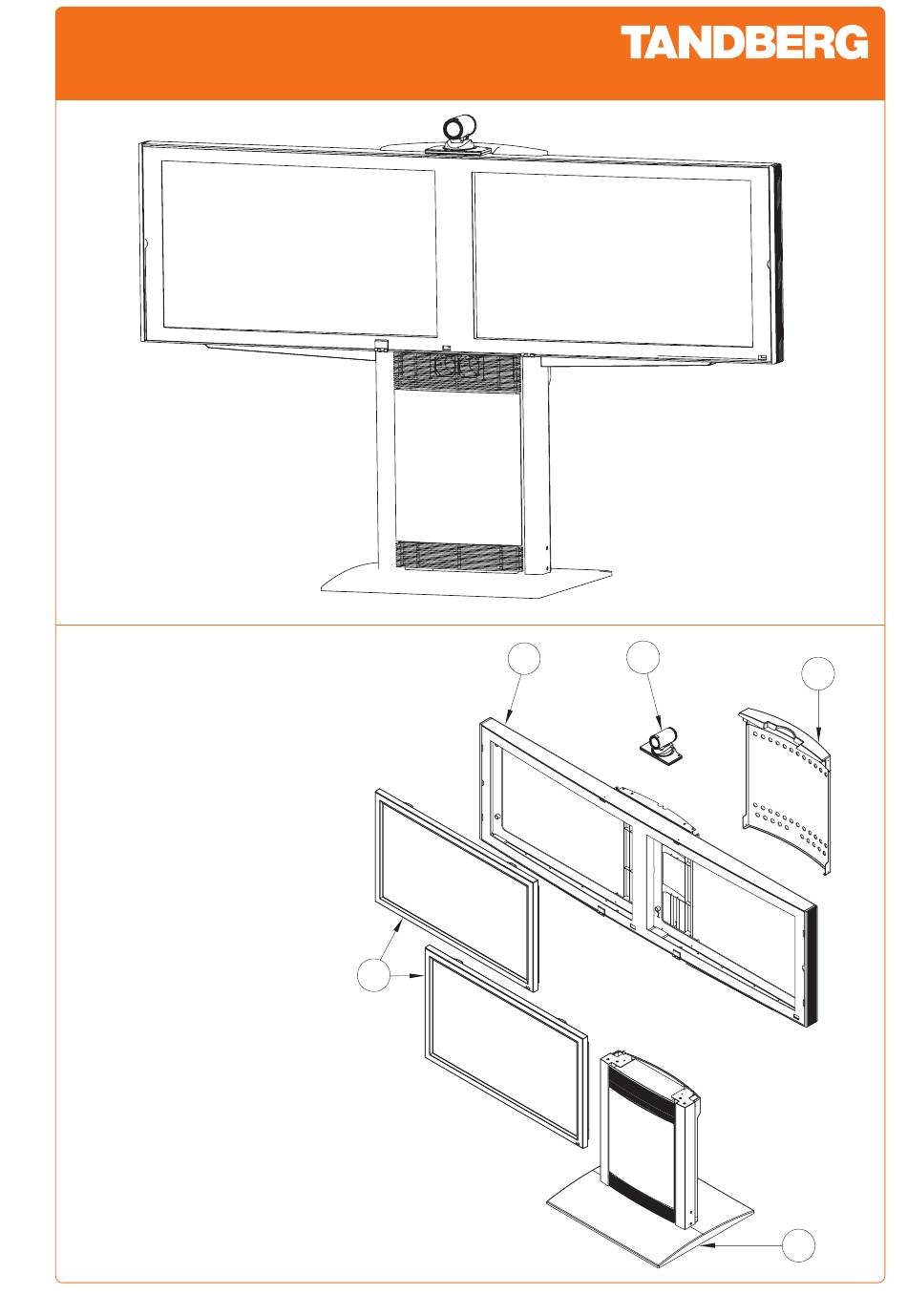

: Base (1), Rear Cover ABS (2), TANDBERG
Precision HD Camera (5), Accessories box
2.
Box 2
: The Dual Monitor Frame (3)
3.
Box 3
: The Plasma Monitors (4)
11304801 Page 1
is shipped in three boxes:
4
TANDBERG 8000 MXP
5
3
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8000 MXP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TANDBERG 8000 MXP

Summary of Contents for TANDBERG 8000 MXP

  • Page 1 Installation Sheet TANDBERG 8000 MXP The TANDBERG 8000 is shipped in three boxes: Box 1 : Base (1), Rear Cover ABS (2), TANDBERG Precision HD Camera (5), Accessories box Box 2 : The Dual Monitor Frame (3) Box 3 : The Plasma Monitors (4)
  • Page 2 Installation Sheet TANDBERG 8000 MXP Accessories TANDBERG MXP User Documentation User Manuals CD TANDBERG Remote TANDBERG Control Tracker 3 x Microphones Cables: • 7 x Power Cables 4 x Type M4x16 • 1 x LAN Cable • 1 x ISDN Bundle Cable •...
  • Page 3 Installation Sheet TANDBERG 8000 MXP Installation of TANDBERG 8000 MXP To install the monitors we recommend that there are 3 people present. NOTE! Due to the weight of the system, the base should be placed in its permanent location at once.

  • Page 4: Connecting Cables

    Installation Sheet TANDBERG 8000 MXP 3) TANDBERG Precision HD Camera Place the camera centrally on top of the Monitor Frame. Make sure it is placed in parallel to the edge of the front of the Monitor in order to allow the IR sensor to pick up the signals from the remote control.

  • Page 5: How To Place The Microphones

    Installation Sheet TANDBERG 8000 MXP 7) How to Place the Microphones Your TANDBERG 8000 videoconferencing system is shipped with two (or three) high quality microphones in order to ensure superb audio quality. The number of microphones shipped with the system will depend on the system type.
  • Page 6 TANDBERG 8000 MXP 8) Video System - Quick Setup The IR sensors for the remote control are placed at the lower right of each monitor. Use the TANDBERG Remote Control to access the video system menus. 1. Open the Control Panel...
