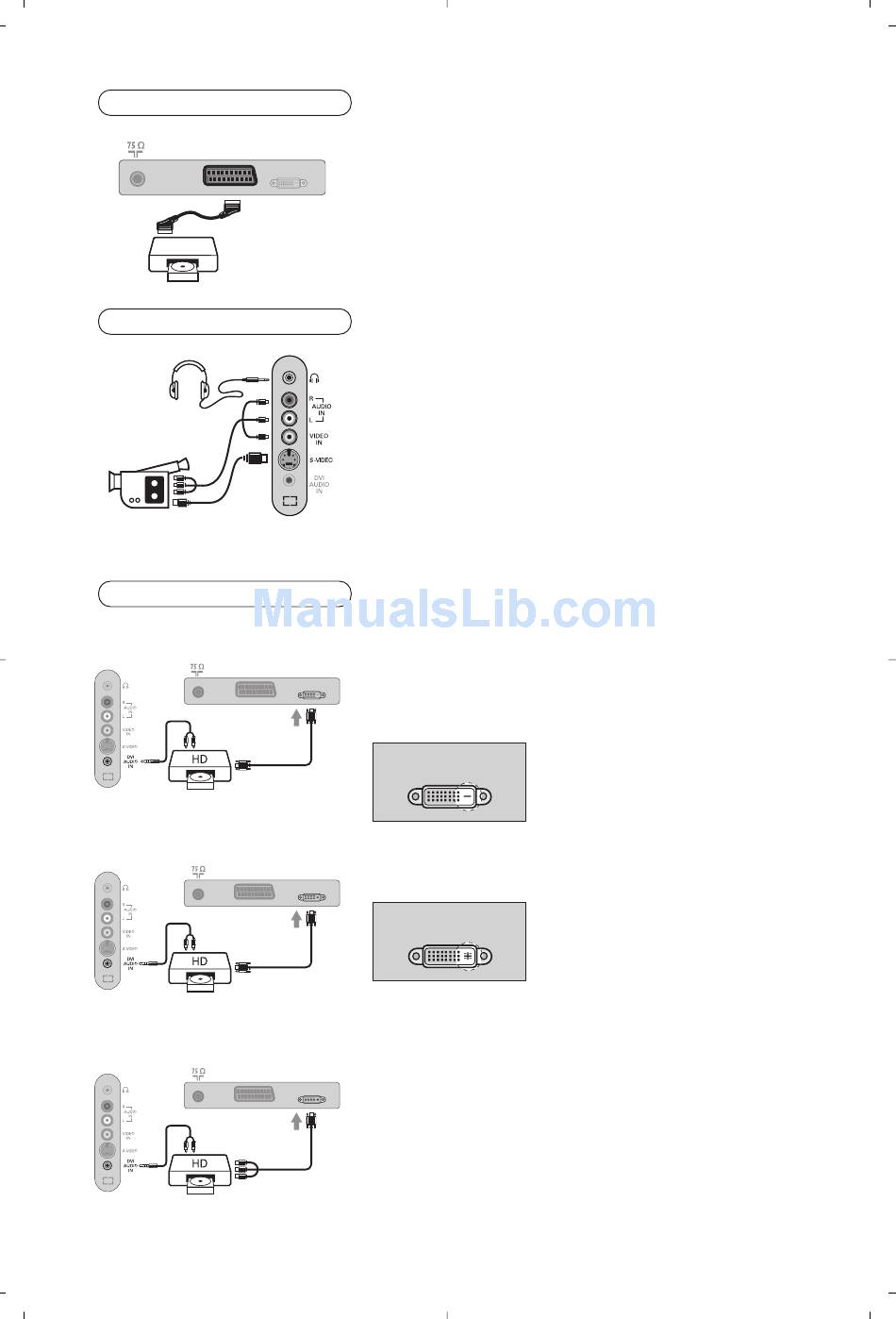

Other equipment

EXT 1

Side connections

HD equipment

HD Digital Connection (DVI-D)
EXT 1
DVI-D
HD Digital Connection (DVI-I)
EXT 1
DVI-I
HD Analogue Connection (DVI-I)
EXT 1
Y Pb Pr
12
Satellite receiver, decoder, CDV, games, etc.
DVI-D In
Carry out the connections shown opposite.
Make the connections as shown opposite.
With the
AV
For a mono set, connect the sound signal to the AUDIO L (or
AUDIO R) input.The sound automatically comes out of the left and
right speakers of the set.
Headphones
When headphones are connected, the sound on the TV set will be
cut.The
VOLUME -/+
The headphone impedance must be between 32 and 600 Ohms.
Make the connections as shown opposite.
(depending on your version)
DVI-D In
With the
AV
For more information on using HD mode see page 10.
DVI-D
DVI-D DVI-D
DVI-I In
DVI-I DVI-I
DVI-I
DVI-I In
DVI-I
key, select .
AV/S-VHS
keys are used to adjust the volume level.
key, select .
HD
Supports Digital signals only.
Supports both Analogue (YPbPr) and Digital
signals.
