  • Page 1 Stagepix Line 100 IP Stagepix Line 50 IP LED strip...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.06.2020, ID: 486339, 486342...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 12 Installation and starting up........................ 14 Connections and controls........................17 Technical specifications........................20 Cleaning...............................

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Stagepix Line 100 IP Stagepix Line 50 IP...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – danger zone. Stagepix Line 100 IP Stagepix Line 50 IP LED strip...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as a lighting effect in connection with a Stagepix Brain IP (item no. 486345). Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Compatible devices The device may only be used with Ignition Stagepix Brain IP (item no. 486345). Stagepix Line 100 IP Stagepix Line 50 IP LED strip...

  • Page 12: Features

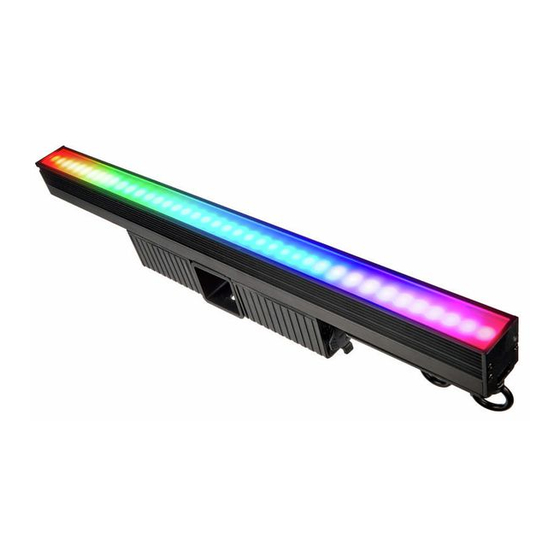

    Features Features Stagepix Line 100 IP (item no. 486339): LED line light with 80 SMD LEDs (RGB) in 40 segments Stagepix Line 50 IP (item no. 486342): LED line light with 40 SMD LEDs (RGB) in 20 segments Control via Stagepix Brain IP (item no. 486345), not included. Flexibility due to interchangeable light diffusers Connection of several LED strips with a clamping mechanism Robust aluminium housing...
  • Page 13 Features Information about protection Equipment with protection class IP65 are dust-tight and completely protected against contact class IP65 (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors.

  • Page 14: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation and starting up NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). Mounting options You can install the unit in hanging position.
  • Page 16 Connect the device via a suitable RJ45 data cable (Cat) to the Stagepix Brain IP (item no. 486345). A maximum of four Ignition Stagepix Line 100 IP LED strips (item no. 486339) or a maximum of eight Ignition Stagepix Line 50 IP LED strips (item no. 486342) may be connected in series to each serial interface of the controller.

  • Page 17: Connections And Controls

    Connections and controls Connections and controls Stagepix Line 100 IP (Item no. 486339) Stagepix Line 100 IP Stagepix Line 50 IP LED strip...
  • Page 18 Connections and controls Stagepix Line 50 IP (Item no. 486342) Stagepix Line 100 IP Stagepix Line 50 IP LED strip...
  • Page 19 Connections and controls 1 Fastening element for the mechanical connection of two pixel rails using a clamping mechanism 2 [INPUT] RJ45 input for power supply and control of the device by means of Stagepix Brain IP (item no. 486345) 3 Retaining bracket for attaching the device to a suitable truss bar 4 [OUTPUT] RJ45 output for power supply and control of the following pixel strip 5 Safety eyelets and connector for seamless connection of multiple bars...

  • Page 20: Technical Specifications

    Technical specifications Technical specifications Light source Stagepix Line 100 IP: 80 × 5050 SMD, RGB Stagepix Line 50 IP: 40 × 5050 SMD, RGB Optical properties Beam angle 120° Pixel pitch 25 mm Luminance 1050 Nit Refresh rate 3000 Hz Control Via Stagepix Brain IP (item no.
  • Page 21 Technical specifications Mounting options Hanging Stagepix Line 100 IP: 101 mm × 85 mm × 36 mm Dimensions (W × H × D) Stagepix Line 50 IP: 51 mm × 85 mm × 36 mm Stagepix Line 100 IP: 1.9 kg Weight Stagepix Line 50 IP: 1.0 kg Ambient conditions...
  • Page 22 Technical specifications Further information Outdoor-ready Colour mixture LEDs individually controllable LED type Xin1 Fanless Remote control Not possible Wireless DMX Housing colour black Stagepix Line 100 IP Stagepix Line 50 IP LED strip...

  • Page 23: Cleaning

    Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth.

  • Page 24: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 25 Notes Stagepix Line 100 IP Stagepix Line 50 IP LED strip...
  • Page 26 Notes Stagepix Line 100 IP Stagepix Line 50 IP LED strip...
  • Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
