Summary of Contents for thomann Light Pro

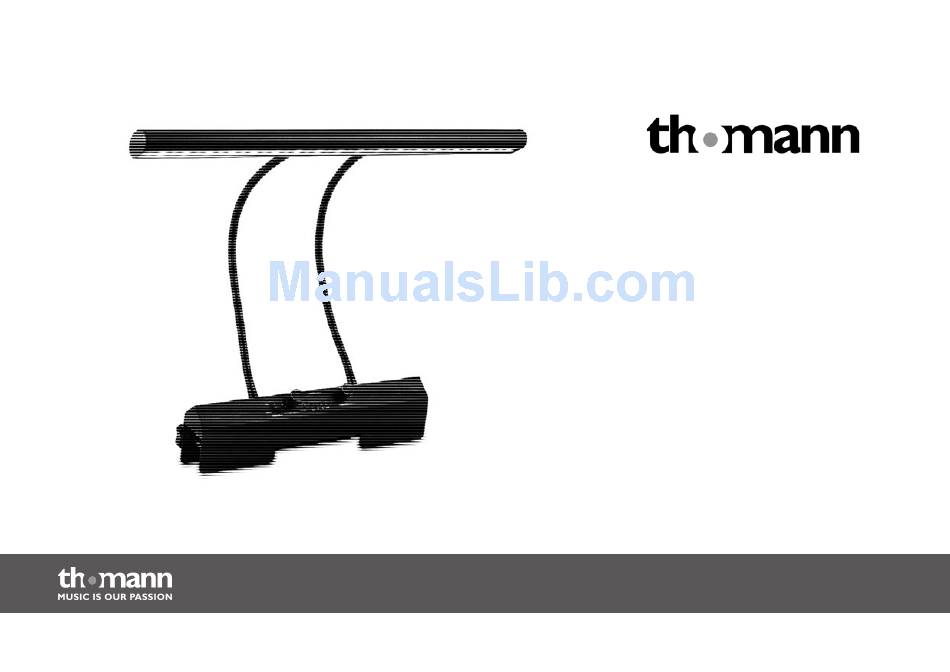

- Page 1 LED Music Stand Light Pro music stand light user manual...
- Page 2 Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 05.02.2015, ID: 330169 | SW 1.1...
-
Page 3: Table Of Contents
Connections and operating elements................... 19 Operating..............................24 7.1 Starting the device in mains operation..................24 7.2 Starting the device in battery operation................. 25 7.3 Main menu............................26 7.4 Menu overview..........................30 7.5 Functions in 6 channel DMX mode................... 31 LED Music Stand Light Pro... - Page 4 Table of contents Technical specifications........................34 Plug and connection assignments....................35 Protecting the environment......................36 Troubleshooting............................37 music stand light...
-
Page 5: General Information
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. LED Music Stand Light Pro... -
Page 6: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
References to other locations in this manual are identified by an arrow and the specified page number. In the electronic version of the manual, you can click the cross-reference to jump to the specified location. Example: See Ä ‘Cross-references’ on page 7. LED Music Stand Light Pro... -
Page 8: Symbols And Signal Words
General information 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 9 General information Warning signs Type of danger Warning – danger zone. LED Music Stand Light Pro...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to illuminate music stands. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 11 Never look directly into the light source. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. LED Music Stand Light Pro...
- Page 12 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
-
Page 13: Features
Colour temperature of approx. 2700 K - 5200 K adjustable directly on the lamp DMX controllable Flexible double-gooseneck Built-in rechargeable battery for approx. 3.5 operating hours (maximum) Low power consumption Shock-proof Incl. power supply with Euro plug Black metal housing LED Music Stand Light Pro... -
Page 14: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 15 If required, loosen the thumbscrews to lock the music stand lamp so far that the surface on which you want to clamp the lamp, fits between clamping panel and jaws. Then put the lamp on this surface and tighten the thumbscrews again until the lamp stays securely in place. LED Music Stand Light Pro...
-
Page 16: Starting Up
Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. music stand light... - Page 17 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Music Stand Light Pro...
- Page 18 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
-
Page 19: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel LED Music Stand Light Pro... - Page 20 Connections and operating elements 1 Lamp head 2 Flexible double-gooseneck Keeps the lamp head in the desired orientation. 3 [DIMMER MODE] Toggles the brightness control between DMX control (AUTO) and local control (MANUAL). 4 [CW (COLOR TEMPERATURE) WW] Controls the colour temperature. Left-hand stop: warm white, right-hand stop: cold white. 5 [FUNCTION DISPLAY] Display area for device functions.
- Page 21 ENTER: confirms the displayed option or value. 7 [DIMMER / POWER SWITCH] Controls the brightness of the lamp head in manual mode; turns the device on / off. 8 Clamping panel, to clamp the device to the music stand. LED Music Stand Light Pro...
- Page 22 Connections and operating elements Rear panel music stand light...
- Page 23 DMX output to feed the DMX signal to the next device in the DMX chain. 12 DMX IN DMX input for the DMX controlled brightness control. 13 9V Connector for power supply via included mains adapter. LED Music Stand Light Pro...
-
Page 24: Operating
Operating Operating 7.1 Starting the device in mains operation Connect the cable of the mains adapter to the 9V socket on the rear panel of the device. Then connect the mains adapter to a power outlet. Rotate the control [ +(DIMMER / POWER SWITCH)-] clockwise past the resistance to turn the device on. The device is then ready for use. -
Page 25: Starting The Device In Battery Operation
During charging, the lighting may be switched on or off. With the lights on, the charging time may increase. After charging is complete, rotate the control [+(DIMMER / POWER SWITCH)-] clockwise past the resistance to turn the device on. The device is then ready for use. LED Music Stand Light Pro... -
Page 26: Main Menu
Operating If you want to control the brightness yourself the switch [DIMMER MODE] must be in MANUAL position. Otherwise the brightness is adjusted via DMX control. Rotate the control [+(DIMMER / POWER SWITCH)-] clockwise to increase the brightness. Turn it counter-clockwise to decrease the brightness. - Page 27 Press [MENU] repeatedly until the display shows ‘SLAU’ . Now confirm with ‘ENTER’ to set the device in Slave mode. ‘SLA’ is flashing in the display. The device is now DMX controlled by another device configured as ‘Master’. LED Music Stand Light Pro...
- Page 28 Operating Dimmer mode Press [MENU] repeatedly until the display shows ‘ ’. Press ‘ENTER’ to subsequently use to switch the Dimmer mode on or off. When the dimmer mode is enabled, the inputs for brightness and colour temperature via the rotary controls will be executed with a slight delay, when the dimmer mode is off, the inputs are executed directly.
- Page 29 Operating Showing software version Press [MENU] repeatedly until the display shows ‘uEr’ and confirm with ‘ENTER’ . Press [ENTER] to display the software version used by the device. LED Music Stand Light Pro...
-
Page 30: Menu Overview
Operating 7.4 Menu overview music stand light... -
Page 31: Functions In 6 Channel Dmx Mode
Setting cold white LEDs from low to high 0 – 255 Setting warm white LEDs from low to high 0 – 1 No function (default) 2 – 240 Setting colour temperature of LEDs 241 – 255 Optical sensors for ‘Auto dimmer’ LED Music Stand Light Pro... - Page 32 Operating Value Function channel 0 – 255 0 – 255 Setting colour temperature, when ‘Optical sensors’ is selected for channel 4 0 – 255 0 – 9 All IDs 170 – 179 ID 17 ID 34 ID 51 10 – 19 ID 1 180 –...
- Page 33 ID 30 ID 47 ID 64 140 – 149 ID14 ID 31 ID 48 ID 65 150 – 159 ID 15 ID 32 ID 49 ID 66 160 – 169 ID 16 ID 33 ID 50 LED Music Stand Light Pro...
-
Page 34: Technical Specifications
Technical specifications Technical specifications LEDs 18 × warm white, 18 × cold white Dispersion angle approx. 45 ° Number of DMX channels Colour temperature approx. 2700 K – 5200 K Operating voltage supply DC 9 V , 2 A Power consumption 15 W Permitted ambient temperature 0 °... -
Page 35: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Music Stand Light Pro... -
Page 36: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. -
Page 37: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Music Stand Light Pro... - Page 38 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer‐ ence to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. music stand light...
- Page 40 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
