Simplex 3000 Series Faq

Note: If your lock is opening on every turn of the knob or lever, except upon entering a code, this may
be a ZERO CODE. Before attempting to remove the lock from the door, refer to the troubleshooting
procedures outlined at bottom of this document for a zero code symptom/solution.

Changing the Code/Combination

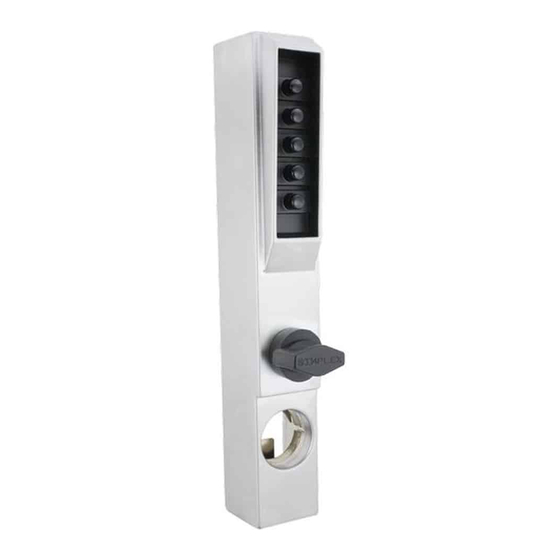

Simplex 3000
3000 Series FAQ
Changing the Code/Combination
Important: Perform this procedure with the DOOR OPEN. The lock should be
set for pushbutton access to retract latch.
Tools Required: DF59 Control Key & Small flat 1.8" blade screwdriver.
Read the instructions through once before attempting to change
the combination.
The factory pre-set combination is 2 and 4 pressed simultaneously (and re-
leased), then press 3 (and release).

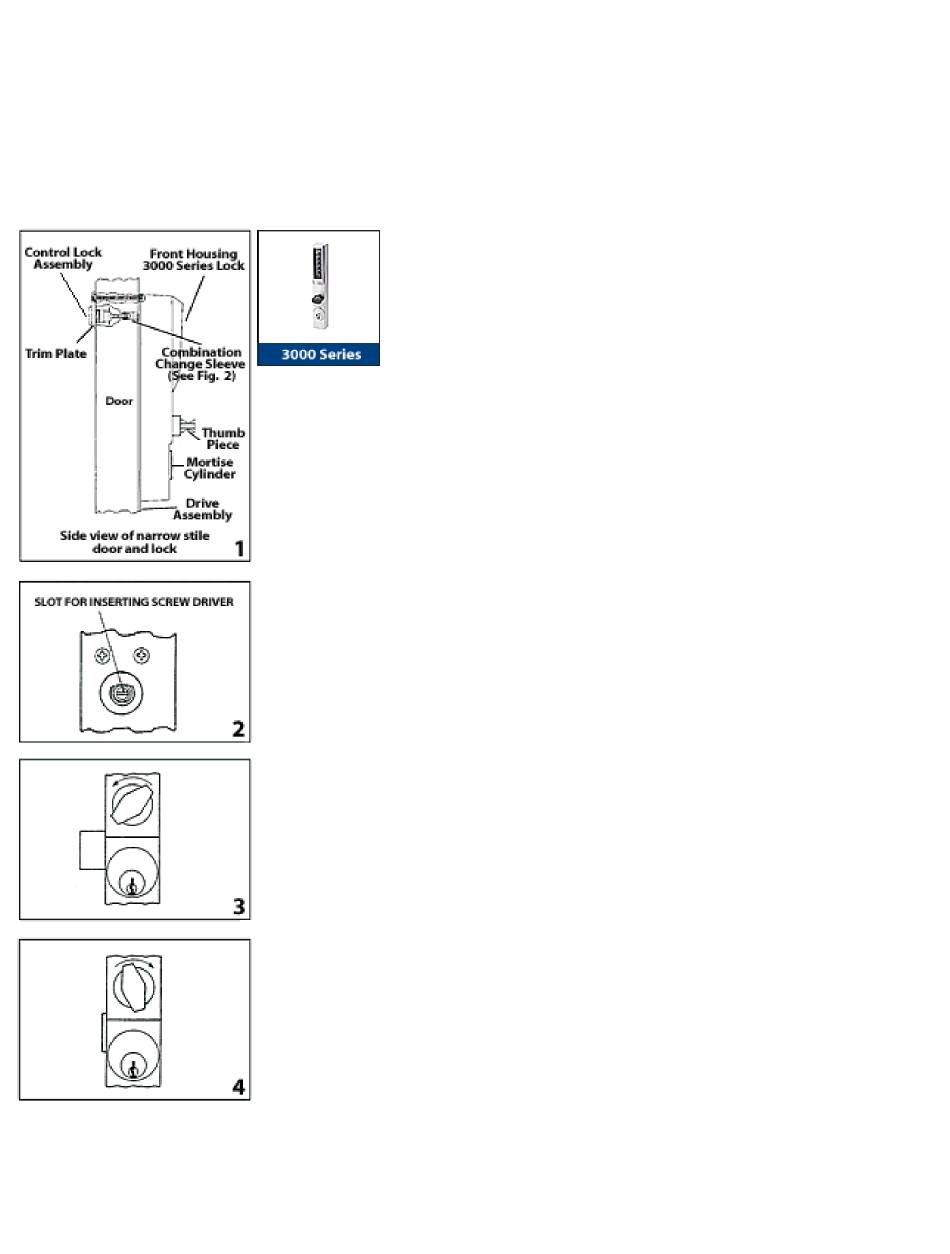

1. Remove the control lock assembly and trim plate using the DF59 Control
Key provided with the lock (see figure 1). Turn the key to the left
(counterclockwise) until control lock assembly can be removed and the
combination change sleeve is exposed (see figure 2).
2. Turn the outside thumb piece to the left (counterclockwise) to the stop
position and release. This clears the lock of previously used buttons
(see figure 3).
3. Enter the existing combination. Make sure you depress each button fully
and release.
4. Insert screwdriver into combination change sleeve slot (see figure 2).
Turn screwdriver to the right (clockwise) to the stop position. You should
feel a slight click. Turn the screwdriver to the left (counterclockwise) to
stop, and remove.
5. Rotate the thumb piece to the left (counterclockwise) to the stop
position and release. This clears the old combination (see figure 3).
6. Select a new combination, write it down. Some or all of the buttons may
be used for your new combination - pressed individually or simultane-
ously. Each button may be used only once. We do not recommend the
use of a one-button combination.
