DL50
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL50 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex DL50

Summary of Contents for Simplex DL50

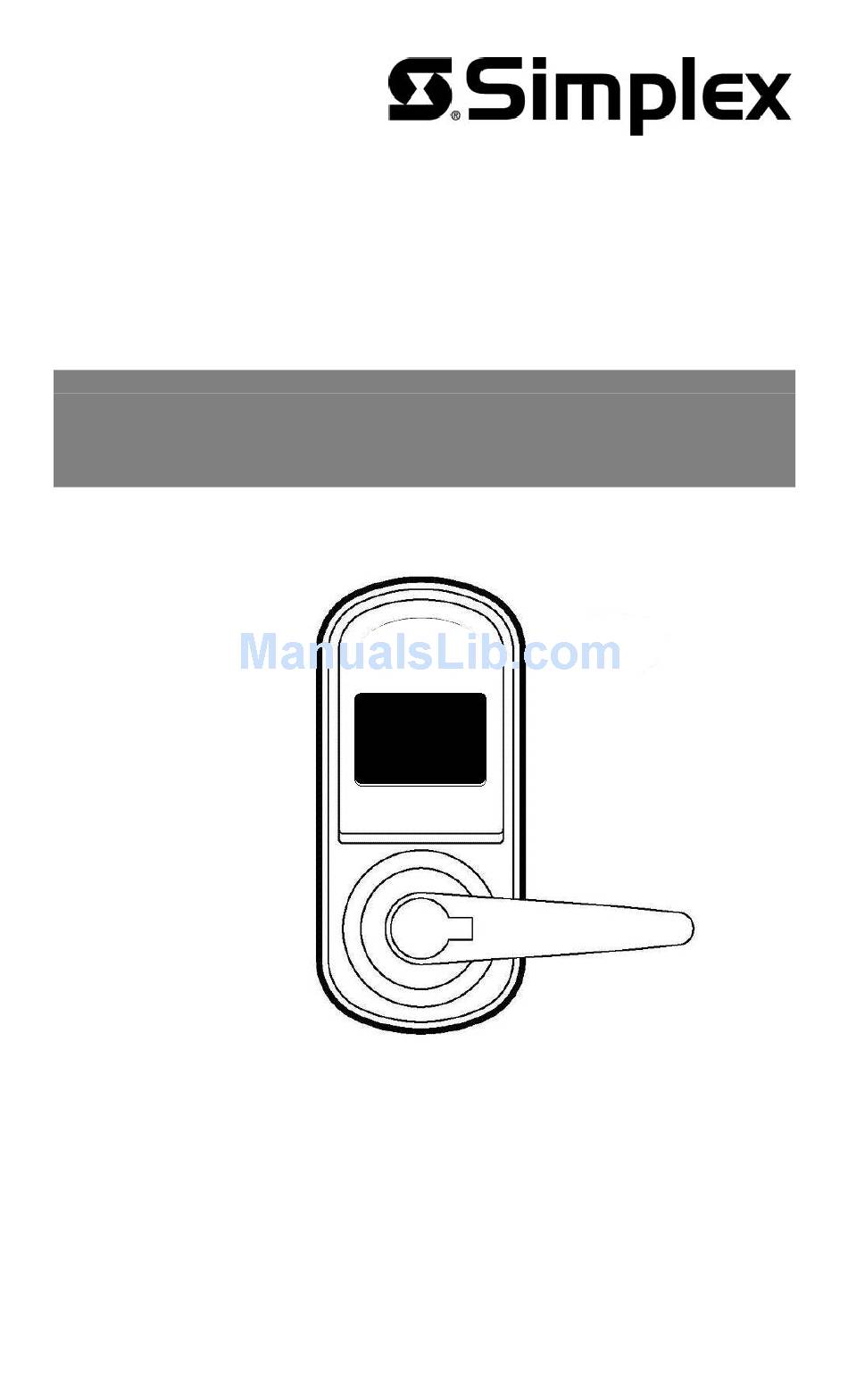

  • Page 1 DL50 USER’S MANUAL...
  • Page 2 © 2011 SimplexGrinnell LP. All rights reserved. SimplexGrinnell is continually improving its products; specifications are subject to change without notice. SimplexGrinnell, Simplex and Be Safe are trademarks of Tyco International Services AG or its affiliates. License numbers available at www.simplexgrinnell.com or contact your local SimplexGrinnell office.

  • Page 3: Important! Please Read First

    IMPORTANT! Please Read First: The DL50 is designed for INTERIOR use only. The DL50 is not reversible from Right hand to Left hand or vice- versa. Note: When facing the door from exterior, if hinges are on the right, you need a right hand DL50.

  • Page 4: Installation

    SimplexGrinnell Introduction The DL50 is a keyless proximity door lock that fits most standard doors. Simply replace your existing cylindrical style door handle with the DL50 for an economical access control system for your business or home. The locks provide stand alone operation and do not require the use of a computer or any external device for programming.
  • Page 5 When a badge or key fob is placed over the reader window of the DL50, it instantly reads its unique encoded ID number and verifies that it has been authorized to open the door. The DL50 comes with five preprogrammed badges which can be used immediately following installation with no additional setup required.
  • Page 6 Bad Badge If a badge or key fob has not been programmed into the lock, the DL50 will flash a red light and a sound a negative tone. The handle will not engage the latch and the door will not open.
  • Page 7 The Master not only allows access through the door, but also provides additional administrative rights to the holder so they can add and remove users as needed. The DL50 supports up to two (2) Master badges or key fobs. Each Master can add up to 59 individual Users.
  • Page 8 A User badge or key fob allows access through the door. User badges or key fobs are added by a Master badge. There can be up to 59 User badges assigned to each Master card. The DL50 comes with four (4) preprogrammed User badges. These badges do not have the global key sticker like the Master badge.
  • Page 9 DL50 User’s Manual Backup Keys The keys enclosed with your DL50 are for backup purposes in the event of badge loss or battery failure only. Keep your keys in a protected and easy-to-remember location. SimplexGrinnell does not manufacture or stock extra keys. You are responsible for their safekeeping.
  • Page 10 SimplexGrinnell Adding a Master Badge Remove the interior handle from over the battery compartment. Press the Program Button four times, one right after another. Press Program Button Release 4 Times The blue light will appear and you will hear a long beep. Light Turns BLUE...
  • Page 11 Select badge to assign as a Master, and place it over the reader window. Note: If this is a current User badge, you must first delete this User from the DL50 before it can be added as a Master. Light...
  • Page 12 SimplexGrinnell Adding a User Badge Place a Master badge over the reader window until you hear a beep. Master Badge The blue light will begin flashing. Place a new User badge over the reader window. New User Flashing Badge BLUE light You will hear an ascending tone, and the User badge is now added.
  • Page 13 DL50 User’s Manual Deleting an Individual Badge Only You can not individually delete a Master badge. Only User badges can be individually deleted. You must reset the lock, deleting ALL badges, to delete a Master badge (see Resetting the Lock).
  • Page 14 SimplexGrinnell Deleting All User Badges Only You can delete all of the User badges assigned to a specific Master badge without deleting the Master badge itself. Place the Master badge, originally used to add the Users, over the reader window four (4) times in succession. You will hear a beep each time and the blue light will flash.
  • Page 15 DL50 User’s Manual Customize Unlock Window Time This specifies the door open time after a valid badge is used. Remove the interior handle from over the battery compartment. Press the Program Button once to set the unlock window to 3 seconds.

  • Page 16: Resetting The Lock

    SimplexGrinnell Resetting the Lock Remove the Interior handle. Press and hold down the Program Button for 5 seconds. Press Program and Hold Button for 5 Seconds The blue LED will appear and you will hear one beep, followed by 3 ascending tones. Release the Program Button. The lock is now completely reset and all badges have been removed.
  • Page 17 DL50 User’s Manual Using Multiple Locks If you have purchased multiple DL50s, you can configure and change the badge accessibility to each of your locks as you prefer. Remember that each lock is stand alone which means you must program them individually. However, this also means you have great flexibility to customize access to rooms as employees or work areas change.

  • Page 18: Maintaining The Lock

    SimplexGrinnell Maintaining the Lock The SimplexGrinnell DL50 is designed for years of trouble-free operation. The only routine maintenance typically required is the changing of batteries and occasional cleaning. You should routinely check your batteries every few months depending on the usage of door.

  • Page 19: Installing The Lock

    DL50 User’s Manual Installing the Lock PLEASE NOTE: We have used a Right hand DL50 for purposes of demonstration in this User Guide. 1. Affix the gaskets to the Exterior handle and battery pack. Use the 4 “dimple” guides in each corner and insert them in corresponding holes, peel away sticker and attach.
  • Page 20 SimplexGrinnell 3. Insert axle into center turning hub. Make sure the “dot” is up on the turning hub and holes are vertical on axle. 4. Insert securing pin downward thru top of turning hole, thru axle until pin is completely thru. 5.
  • Page 21 DL50 User’s Manual 6. If the axle and pillars fit, you may elect to keep your current latch in place or remove it and replace with the latch included. Latch included is expandable up to 2 ¾”. To expand latch, hold front of latch with one hand and pull on center axle hub.
  • Page 22 SimplexGrinnell 9. Run wire thru rectangular opening in battery pack (to side of center hole). 10. Secure battery pack with 2 long connector screws at each side of opening into connecting pillars. 11. Make sure Exterior handle and battery pack are straight as you tighten connector screws.
  • Page 23 DL50 User’s Manual 12. Connect wire to circuit board underneath the bottom battery on the battery pack. Observe how pins align with plastic connector. 13. Install 4 new AA (1.5 volt) alkaline batteries (not included) into battery pack on Interior handle. Make sure they are installed in the correct direction and are firmly seated in position.
  • Page 24 SimplexGrinnell Preparing a New Door Verify that your new door is 1 3/8” – 2 1/8” (35-55mm) thick. 1. Use the enclosed “Door Cutting Template” to mark your drill holes. Note: Position template at correct height (suggested: 38” or 97 mm from floor). Mark center for lock hole. 2.
  • Page 25 DL50 User’s Manual Latch Installation Use enclosed “Strike Plate Cutting Template” to cut and install latch in door as indicated below. 1. Insert latch into 1 1/8” latch hole in “width” of door. Latch is expandable, depending on the size of your door hole, to 2 ¾”.
  • Page 26 SimplexGrinnell Strike Plate & Dust Boot Installation 1. If you are installing on an existing door jamb, you may be able to use your existing strike. However, it is recommended that you use the strike included. 2. On a new door, use the “Strike Plate Cutting Template” to mark and install the strike plate.

  • Page 27: Troubleshooting

    DL50 User’s Manual Troubleshooting Problem Solution Make sure you’re holding badge on window No response from badge 1 – 2 seconds. and allow Batteries may be expired. Replace with new batteries. Badge damaged – replace badge. Badge not assigned – follow steps to enroll...

  • Page 28: Limited Warranty

    SimplexGrinnell Warranty Limited Warranty Subject to the limitations set forth below, SimplexGrinnell warrants that the Products shall be free from defects in material and workmanship under normal use for the period of 90 days commencing on the date of 1) first beneficial use of all or any part of Product if installed by SimplexGrinnell or 2) Product shipment, whichever is earlier.
  • Page 29 AS1000 Touch Screen Time Clock System (1412-9001) Windows CE embedded technology! The AS1000 offers a touch screen to interact with the terminal or the same proximity badge used with the DL50 to clock in and out. Page 29...
  • Page 30 Corporate Sales and Marketing: 50 Technology Drive, Westminster, MA 01441-0001, Toll Free: 1-888-7777-9237 Canada: 2400 Skymark Avenue, Mississauga, Ontario L4W 5K5 Telephone 1-800-565-5400 © 2011 SimplexGrinnell LP. All rights reserved. Printed in the U.S.A. MC109-151-619...
