Resetting the Code/Combination
Note: There is no way to determine a forgotten, unknown or lost combina-
tion code from the front or outside of the lock. However, it can be reset and
recovered or reset and changed to a new code by following the steps in this
section.

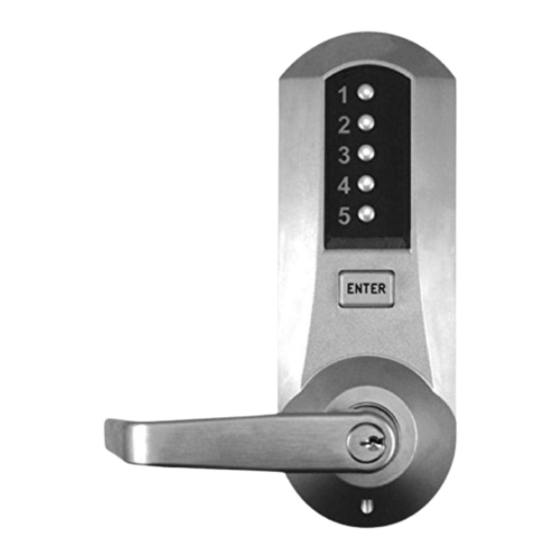

5000 Series FAQ
Resetting the Code/Combination From a Lost Code
Warning: Since this procedure is of a technical nature, only technically
trained personnel in the lock and hardware field should undertake this
operation. For further assistance, call the Kaba Access Control technical
support line at 800-849-TECH (8324) or 336-725-1331 between 8AM and
5PM Eastern Standard Time, Monday through Friday (except holidays).
1.
Removing Lock From Door

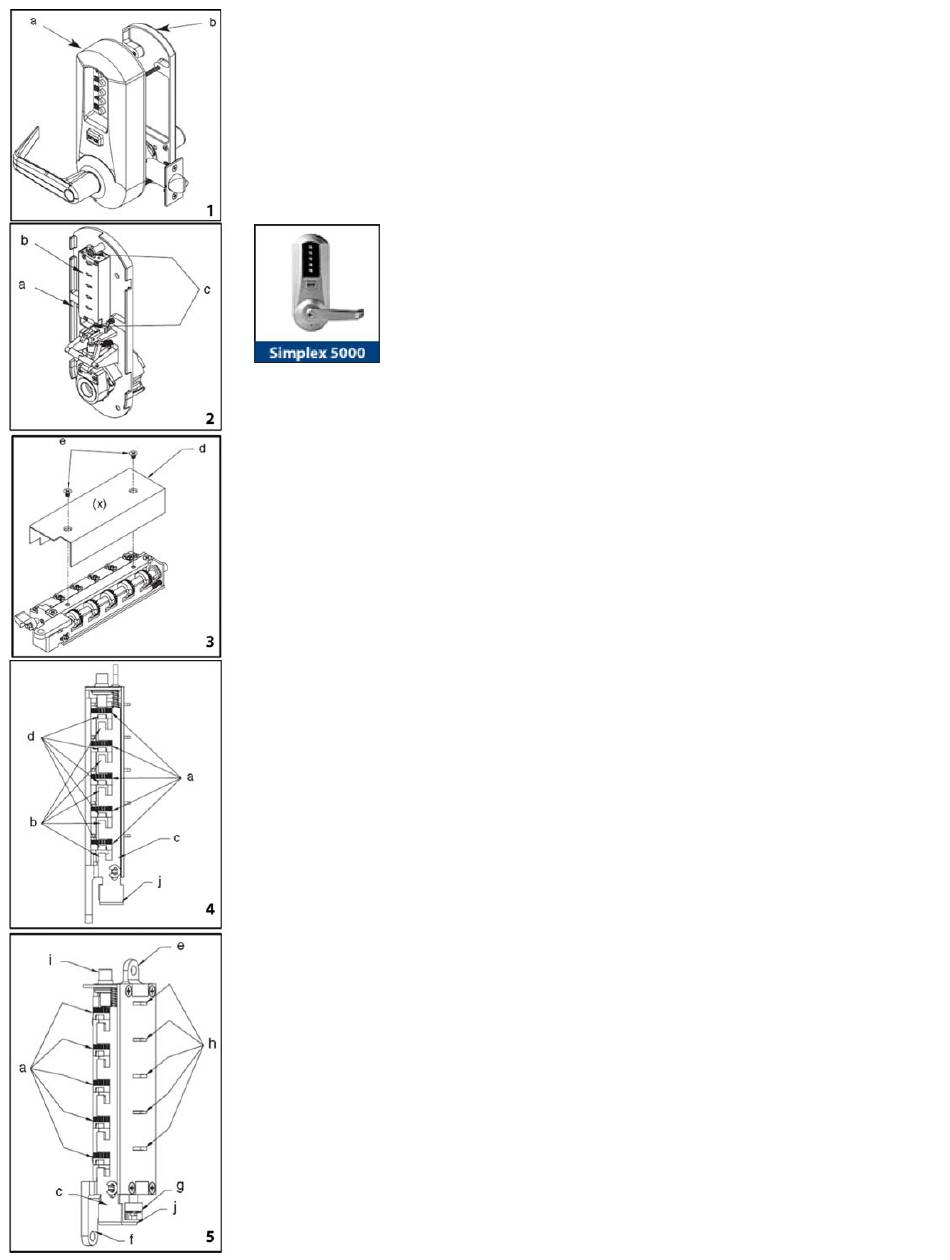

Remove both the outside unit assembly (a) and the inside unit
assembly (b) (see figure 1). Reverse procedures from sections E and F of
this manual.
2.
Removing Combination Chamber Assembly
Carefully remove the base plate of outside unit assembly (a) by
removing the 2 Phillips screws (one screw may be found under an
inspection sticker).
Remove the combination chamber assembly (b) from the base plate by
removing the 2 Phillips screws (c) (see figure 2).
Remove the 3-sided dust cover (d) to fully expose the chamber by
removing 2 small Phillips screws (e) (see figure 3). May be 1 screw (x) in
newer models.
3.
Resetting and Recovery of Current Code
To reset the code gears (a), each one of the 5 "L" shaped legs (b) of the
unlocking slide (c) must engage snugly with the corresponding code
gear pocket (d) next to it (see figure 4).
Position the chamber in one hand, as shown (see figure 5). Hold
chamber by the top screw tab (e) and bottom screw tab (f ).
Rotate the reset cam (g) back toward you with your finger, towards the
key stems (h) as far as it will go and then release. Now look at the code
gears (a) and the unlocking slide (c). Note that some or all 5 of the code
gear pockets (d) are rotated away from the "L" shaped legs (b) as if out of
alignment. Typically each code gear pocket will be at a slightly different
distance compared to the other.
