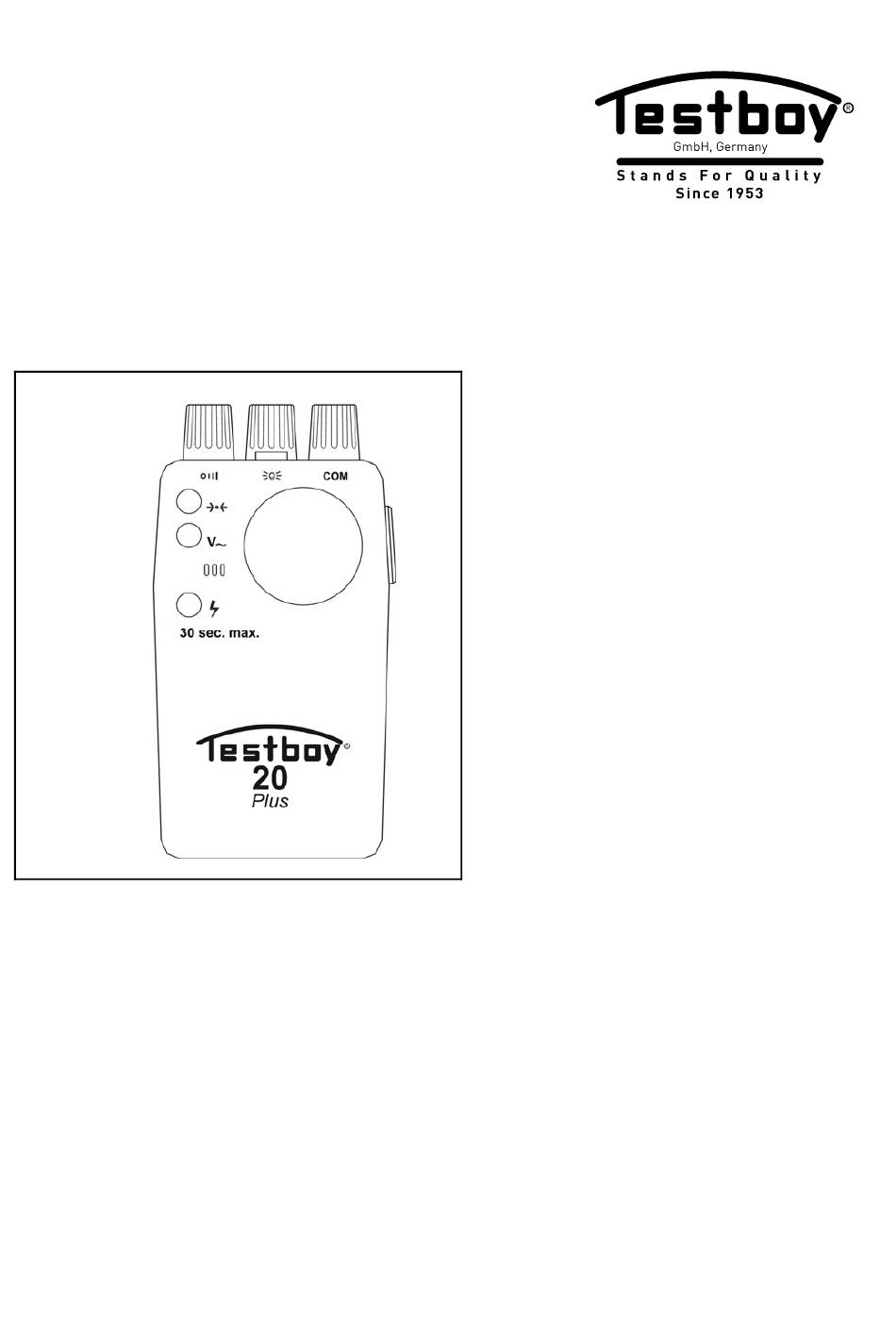

  • Page 1 ® Testboy 20 Plus Version 1.1...

  • Page 2: Safety Notes

    Never point the laser beam directly or indirectly (on re- flective surfaces) towards the eyes. Laser radiation can cause irreparable damage to the eyes. You must first deactivate the laser beam when measuring close to people. ® Testboy 20 Plus...

  • Page 3: General Safety Notes

    Measurement instruments and their accessories are not toys. Children should never be allowed access to them! In industrial institutions, you must follow the acci- dent prevention regulations for electrical facilities and equipment, as established by your employer's liability insurance organization. ® Testboy 20 Plus...
  • Page 4 Read the instructions completely before beginning the initial commissioning. This instrument is CE approved and thus fulfils the required guidelines. All rights reserved to alter specifications without prior notice © Testboy GmbH, Germany. ® Testboy 20 Plus...
  • Page 5 The warranty claim expires in cases of damages caused by failure to observe the instruction! We as- sume no liability for any resulting damage! Testboy is not responsible for damage resulting from: failure to observe the instructions, changes in the product that have not been approved by...
  • Page 6 Notes Disposal For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan. The EU Directive 2002/96/EC (WEEE) regulates the return and recycling of waste electrical and electron- ics equipment.
  • Page 7 Germany info@testboy.de Certificate of quality All aspects of the activities carried out by Testboy GmbH relat- ing to quality during the manufacturing process are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

  • Page 8: Operation

    ® Thank you for choosing the Testboy 20 Plus. The Testboy ® Plus represents the latest advancement in the popular Testboy 2 series. It features six professional functions for working with electrical cables and wires: Low-ohm, optical continuity testing High-ohm, acoustic continuity testing...
  • Page 9 If a phase is active on one of the wires being tested, the red V~ LED will illuminate! ® The Testboy 20 Plus is pro- tected against external volt- ages of up to 300 V~ (for max. 30 seconds)! You can carry out a continuity test while the flashlight is on! ®...
  • Page 10 Figure 2)! The circuitry located in the back of the ® Testboy 20 Plus can detect live- voltage wires with voltages greater than >110 V AC. A flowing current is not required! The metal clip acts here as an extended sensor.

  • Page 11: Changing The Batteries

    All test leads should be removed before opening up the continuity tester! Flashlight Slide the switch on the side of the tester downwards. The high- performance LED can illuminate for up to 80 hours! The lifespan of the LED is over 100,000 hours. ® Testboy 20 Plus...

  • Page 12: Technical Specifications

    0 – 250 Ohm Protection against external volt- 300 V ~ Power supply Three 1.5 V size AA bat- teries Degree of protection IP 20 Overvoltage category CAT II 300 V Testing standard IEC/EN 61010-1 (DIN VDE 0411) ® Testboy 20 Plus...
  • Page 13 Operation ® Testboy 20 Plus...
