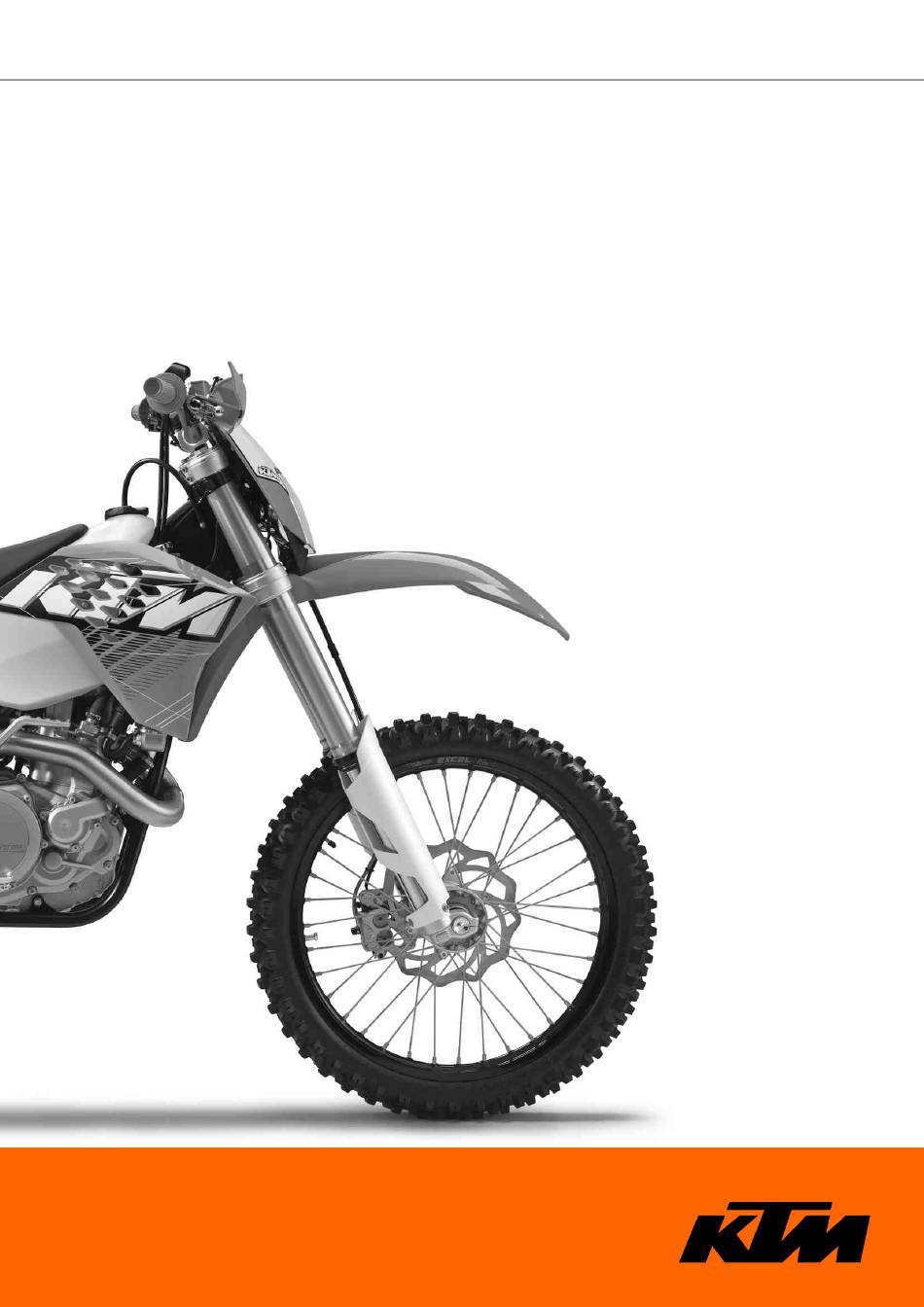

- Page 1 SETUP INSTRUCTIONS 2011 400 EXC EU 400 EXC AUS 450 EXC EU 450 EXC AUS 450 EXC SIX DAYS EU 450 EXC USA 450 XC-W SIX DAYS USA 530 EXC EU 530 EXC AUS 530 EXC SIX DAYS EU 530 EXC USA 530 XC-W SIX DAYS USA Art.
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Identifies an expected reaction (e.g. of a work step or a function). Identifies an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). Indicates information with more details or tips. - Page 5 SET‑UP Unpacking and setting up the vehicle Packaging 2 – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Remove the separate enclosure and unpack it. Check that the scope of delivery is complete on the basis of the enclosed packing list.
- Page 6 SET‑UP Info The upper milled groove in the fork leg must be flush with the top edge of the upper triple clamp. Position bleeder screws toward the front. – Mount the handlebar. The scale on the handlebar should be at the center of the handlebar clamp. –...
- Page 7 8) – Install the battery. ( p. 9) – Unpack and mount the KTM PowerParts included in the delivery (optional). Info Read the accompanying KTM PowerParts installation instructions. – Apply the label included in the delivery (optional). (all EXC models) –...
- Page 8 Mount and tighten the rear mirror adapter and rear mirror on both sides. – Position all controls exactly on the handlebar. Tighten all screws. – Mount the reflector. – Refuel. ( p. 9) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. 101038-01...
- Page 9 WORK Removing the seat – Remove screw – Lift up the seat at the rear, pull it back and then remove it from above. 500080-10 Mounting the seat – Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear and simultaneously push it forward.
- Page 10 – Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
- Page 11 WORK Installing the battery – Place the battery in the battery holder. Battery (YTX5L-BS) – Reconnect the rubber band – Attach the plus cable and replace the plus pole cover – Attach the minus cable – Mount the seat. ( p.
- Page 12 WORK Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to get into the ground water, the ground, or the sewage system. – Switch off engine. – Open the filler cap. ( p.
-
Page 13: Technical Data - Chassis Tightening Torques
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) – Screw, spoiler on fuel tank M5x12 1.5 Nm (1.11 lbf ft) (XC‑W SIX DAYS, EXC USA) – Spoke nipple, rear wheel 5…... - Page 14 SUBSTANCES Super unleaded (ROZ 95 / RON 95 / PON 91) According to – DIN EN 228 (ROZ 95 / RON 95 / PON 91)
-
Page 15: Auxiliary Substances
AUXILIARY SUBSTANCES Long-life grease Guideline – ® KTM recommends Motorex products. Supplier ® Motorex – Bike Grease 2000... - Page 16 *3211679en* 3211679en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...
