Delta R4707 Quick Start Manual

Deck mount roman tub with hand held shower diverter rough-in kit
Hide thumbs Also See for R4707:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
READ ALL the instructions completely
before beginning.
READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave
Delta usted necesitará:
LEER TODAS las instrucciones
completamente antes de empezar.
LEER TODOS los avisos, cuidados,
e información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de
débuter.
LIRE TOUS les avertissements ainsi que
toutes les instructions de nettoyage et
d'entretien.
www.deltafaucet.com
40292

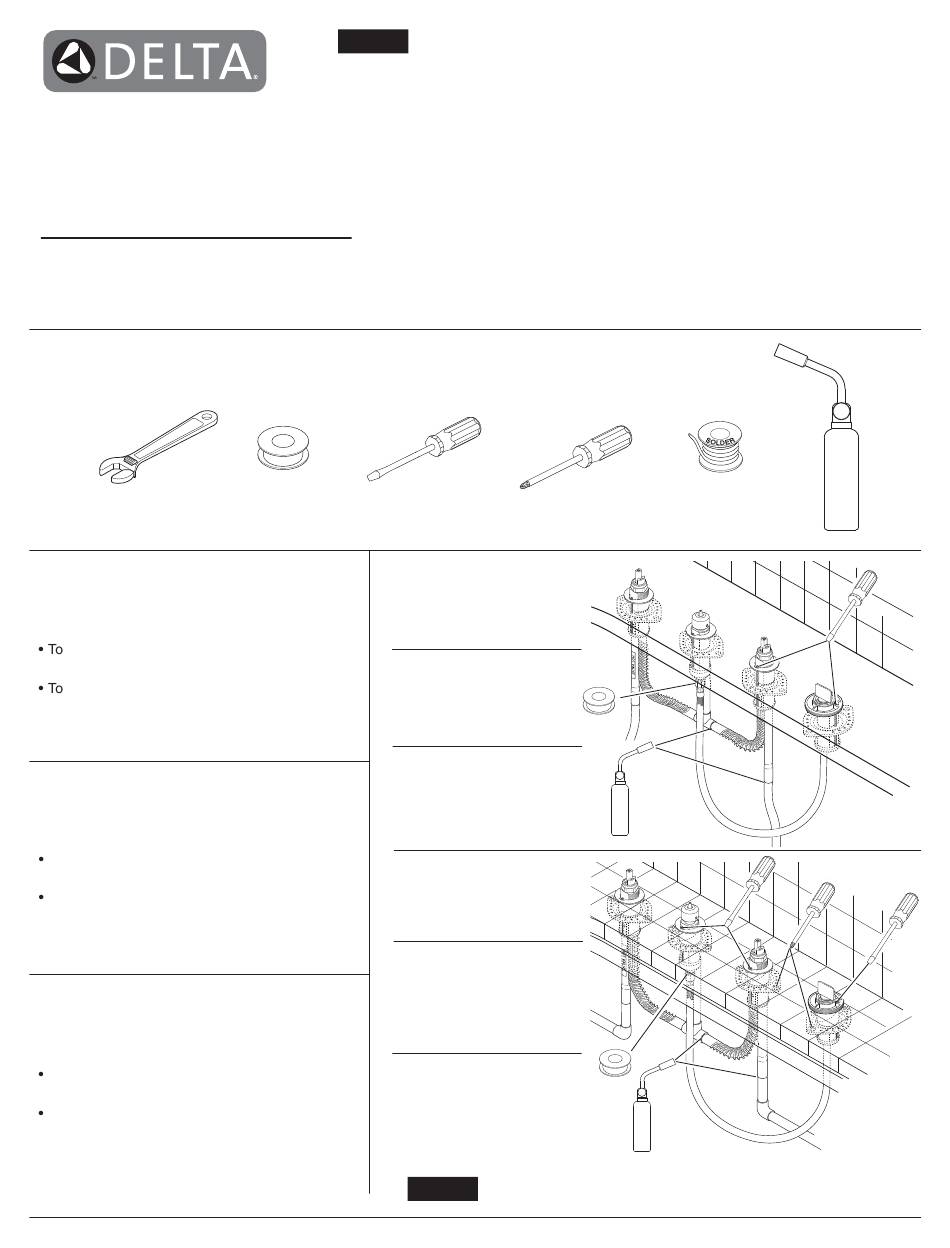

You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
Finished Deck
(Standard) Installation
Use these instructions on a fin-
ished deck installation up to 2 1/2"
(63.5 mm) thick.
Instalación (Estándar) para
Bordes Acabados
Use estas instrucciones para
la instalación en bordes hasta
2 1/2" (63.5 mm) de grosor.
Installation standard dans une
plage finie
Suivez ces instructions pour installer
un robinet dans une plage finie
épaisse d'au plus 2 1/2 po (63.5 mm).
Rough Deck (Thick Tile) Installation
Use these instructions on a rough
deck (thick tile) installation up to
2 1/2" (63.5 mm) thick (excluding
plywood underlayment).
Instalación de las Tuberías Internas
en los Bordes (Losas Gruesas)
Use estas instrucciones en instalacio-
nes en los bordes (de losas gruesas)
hasta de 2 1/2" (63.5 mm) de grosor
(incluyendo el contrapiso de madera
polywood)
Installation dans une plage en
carreaux
Suivez ces instructions pour installer
un robinet dans une plage en
carreaux épaisse d'au plus 2 1/2 po
(63.5 mm) (épaisseur du panneau de
sous-finition en contreplaqué exclue).
40292
1

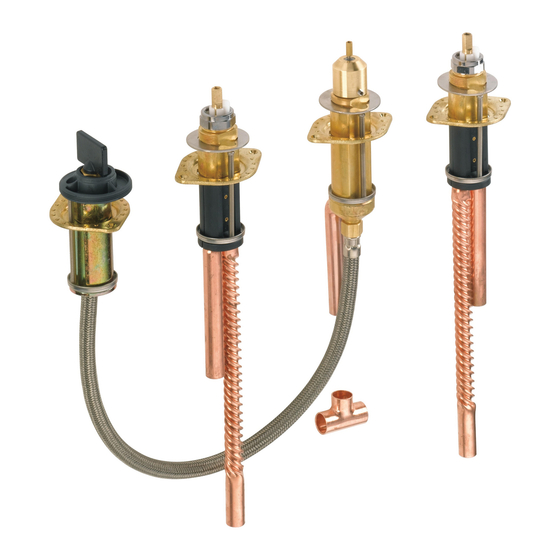

R4707 DECK MOUNT ROMAN TUB
WITH HAND HELD SHOWER DIVERTER
ROUGH-IN KIT
JUEGO DE PIEZAS PARA LA TUBERÍA
INTERNA R4707 PARA LA INSTALACIÓN
EN BORDES DE BAÑERAS ROMANA CON
DESVIADOR MANUAL PARA REGADERAS
DE MANO
KIT DE PLOMBERIE BRUTE R4707 DE
ROBINET DE PLAGE DE BAIN ROMAIN
AVEC DÉRIVATION POUR DOUCHE À MAIN
1/19/12 Rev. D

Advertisement

loading
Need help?

Need help?

Do you have a question about the R4707 and is the answer not in the manual?

Questions and answers

Related Manuals for Delta R4707

Summary of Contents for Delta R4707

  • Page 1 INTERNA R4707 PARA LA INSTALACIÓN EN BORDES DE BAÑERAS ROMANA CON DESVIADOR MANUAL PARA REGADERAS DE MANO KIT DE PLOMBERIE BRUTE R4707 DE Write purchased model number here. Escriba aquí el número del modelo comprado. ROBINET DE PLAGE DE BAIN ROMAIN Inscrivez le numéro de modèle ici.

  • Page 2: Cleaning And Care

    Delta Faucet Company recommends using a professional plumber for all installation & repair. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement...
  • Page 3 RP40615 RP40510 Spout Body Diverter Ensamble de la válvula final Ensamble del Adaptador/Desviador RP40505 Soupape Adaptateur/Dérivation du bec Arandela superior Rondelle supérieure RP40503 Jack Screw RP40617 Bouchon d’essai RP40668 RP40507 Diverter Assembly Ensamble del Desviador Arandela Inferior Dérivation Rondelle inférieure RP6060 Bonete Chapeau...
  • Page 4 3" min. 5" min. 8"- 16" (20.3-40.6 cm) 1- 1/2" (38 mm) 1- 1/2" (38 mm) Finished Deck (Standard) Installation Loosen screws (1) until cardboard tube (2) is free. Rotate nest (3) 90˚ and remove . Remove cardboard tube and discard. Drill holes in FINISHED DECK per diagram.
  • Page 5 Solder connections. NOTE: One screw can be fully tightened before the other screw is tightened. Insert the leader hose (1) through the spray support assembly (2). Connect the leader hose (1) to the diverter outlet (3). Use plumber Make sure end valves are properly aligned (1). Carefully bend tape on threaded connections.
  • Page 6 3" min. 5" min. 8"- 16" (20.3-40.6 cm) 2" (51 mm) 2" (51 mm) Rough Deck (Thick Tile) Installation the trim kit. Please see the trim installation instructions. up to 2 1/2" (63.5 mm) thick excluding plywood underlayment.) Drill holes in deck per diagram. (2) and hand spray support assembly (3).
  • Page 7 2.5" 24" Min. Min. (610 mm) (64 mm) 24 po Min. 2.5 po Min. Carefully bend corrugated outlet tubes (1) and insert into tee (2). Connect tee to Solder connections. spout adapter (3). Connect inlet tubes (4) to water supplies. NOTE 1: For tubes to bend properly after installation, water inlet tubes must be at an angle to the water supplies.
  • Page 8 Replace washers (1) on end valves and spout adapter. Replace nest (2) on hand (3) indicates maximum finished deck thickness. spray support assembly. Rotate 90° to expose screws (3). Loosen screws (1) until washers (2) and nest (3) are free. Rotate washers and nest 90°...
