Ins-30150 Net2 Caller ID reader
Technical Support
01273 811011
Technical help is available:
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
(Optional)
LED indications
Power
- 12v DC supply OK
Network
- Connected to the Mobile phone network
Activity
- The reader is receiving data from a mobile phone
Installation
To register the SIM, create an account on the Paxton website.
The phone number will be supplied within 60 minutes of this process. There is a small monthly charge per SIM for
this service, however, no data charges are incurred as the caller ID is sent without making a full connection.
Insert the SIM card in its holder at the top right of the unit.
A drilling template for the plastic housing is available at
If the device is to be installed where the mobile signal may be low, the antenna should be installed externally.
Secure the antenna by:
1. Internal - Remove the peel off paper from the adhesive strip and fix within the enclosure.
2. Externally - Disconnect the SMA screw connection and route the cable through any of the cabinet push-out plugs
and fix to a smooth surface.

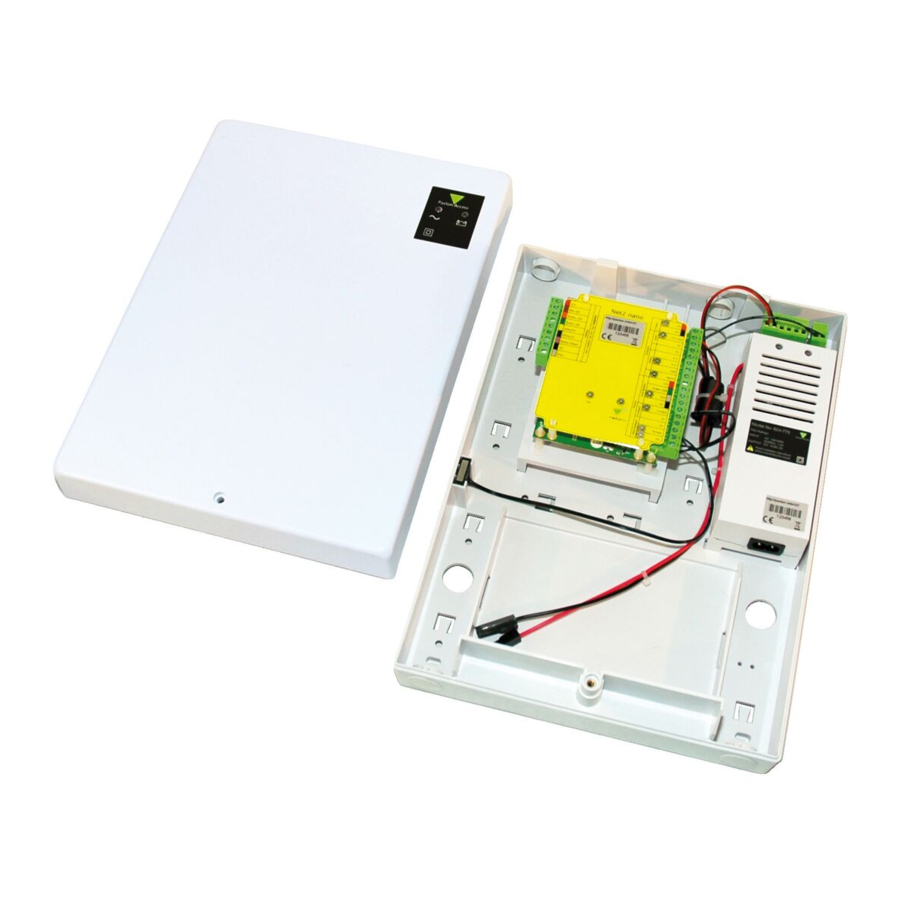

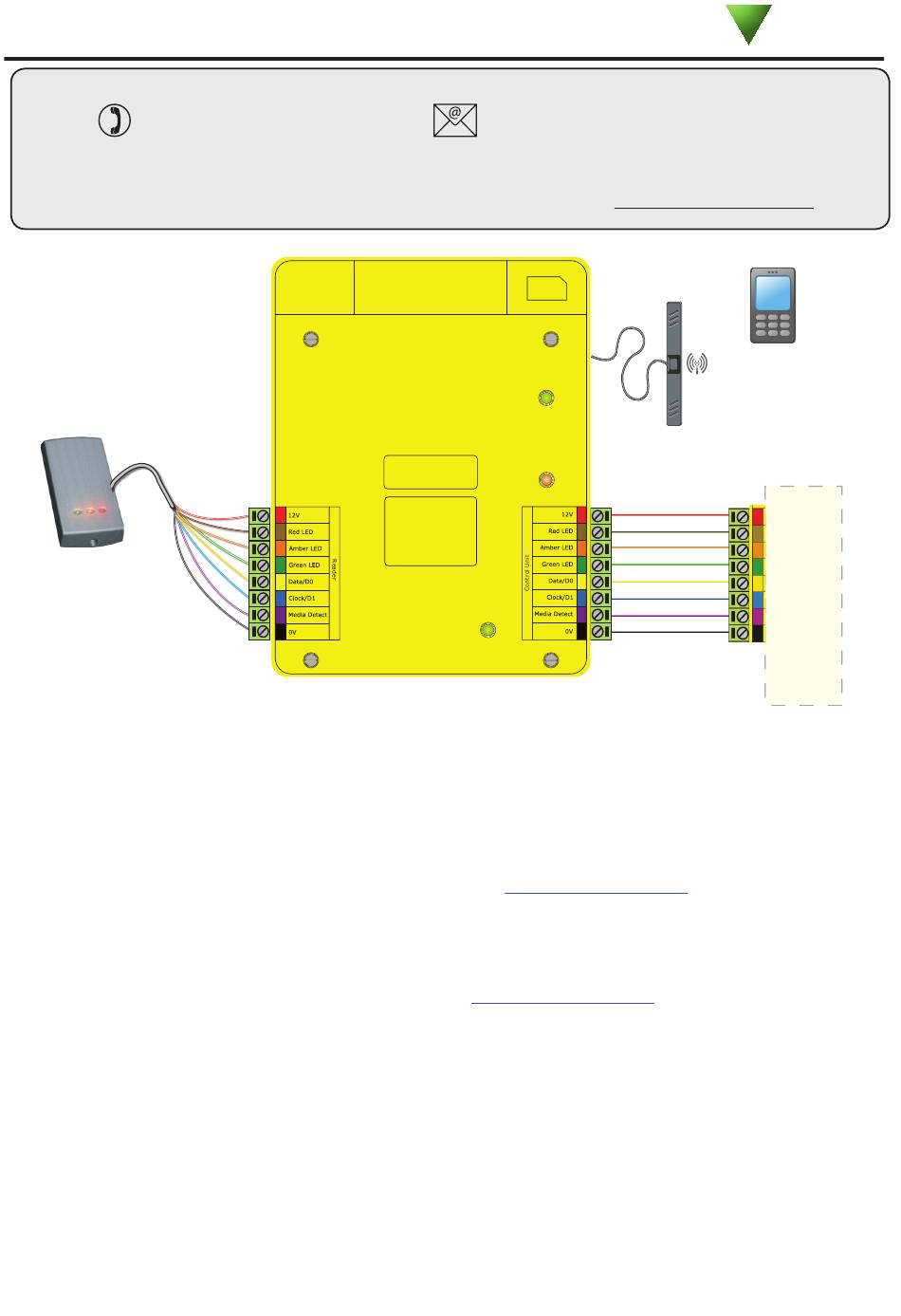

Wire the Caller ID reader colour for colour to a Net2 ACU reader port within a maximum cable length of 15 metres.
Belden 9540 is recommended for all data cable wiring.
If a token reader is also fitted, it is connected to the Caller ID's own reader port within a maximum cable length to
the Net2 ACU of 100 metres.
Power up the unit and confirm that the Power LED comes on. The Network LED will come on within a few minutes
once the unit is active on its GSM network.
support@paxton.co.uk
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
SIM CARD
Net2
Caller ID reader
Activity
< http://paxton.info/1713 >
< http://paxton.info/1715 >
Power
Antenna
Network
Connection to a Net2
ACU reader port
Paxton
