2018/2/9
Cameras
>
Camera Models
daA2500-14um

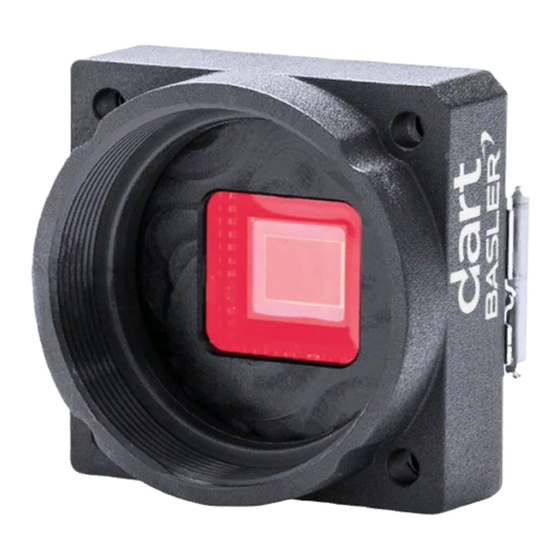

The daA2500-14um
mono CMOS sensor delivers 14 frames per second at 5 MP resolution.
In this topic
Variants
Speci cations
General Speci cations
Spectral Response
Mechanical Speci cations
Camera Dimensions and Mounting Points
Maximum Allowed Lens Intrusion
Stress Test Results
Requirements
Environmental Requirements
Temperature and Humidity
Heat Dissipation
Electrical Requirements
Camera Power
General Purpose I/O Lines
Circuit Diagrams
Cable Requirements
USB 3.0 Cable
I/O Cable
USB 2.0 Compatibility
Physical Interface
Camera Connectors and Status LED
USB 3.0 Connector
I/O Connector Pin Numbering and Assignments
I/O Board
Precautions
Installation
Features
https://docs.baslerweb.com/?filter=Camera:acA2500-14gm#t=en%2Fdaa2500-14um.htm
>
Basler dart USB 3.0
Basler dart USB 3.0 camera
daA2500-14um
> daA2500-14um
with an ON Semiconductor MT9P031
1/11
Advertisement
Table of Contents
Related Manuals for Basler daA2500-14um
Summary of Contents for Basler daA2500-14um

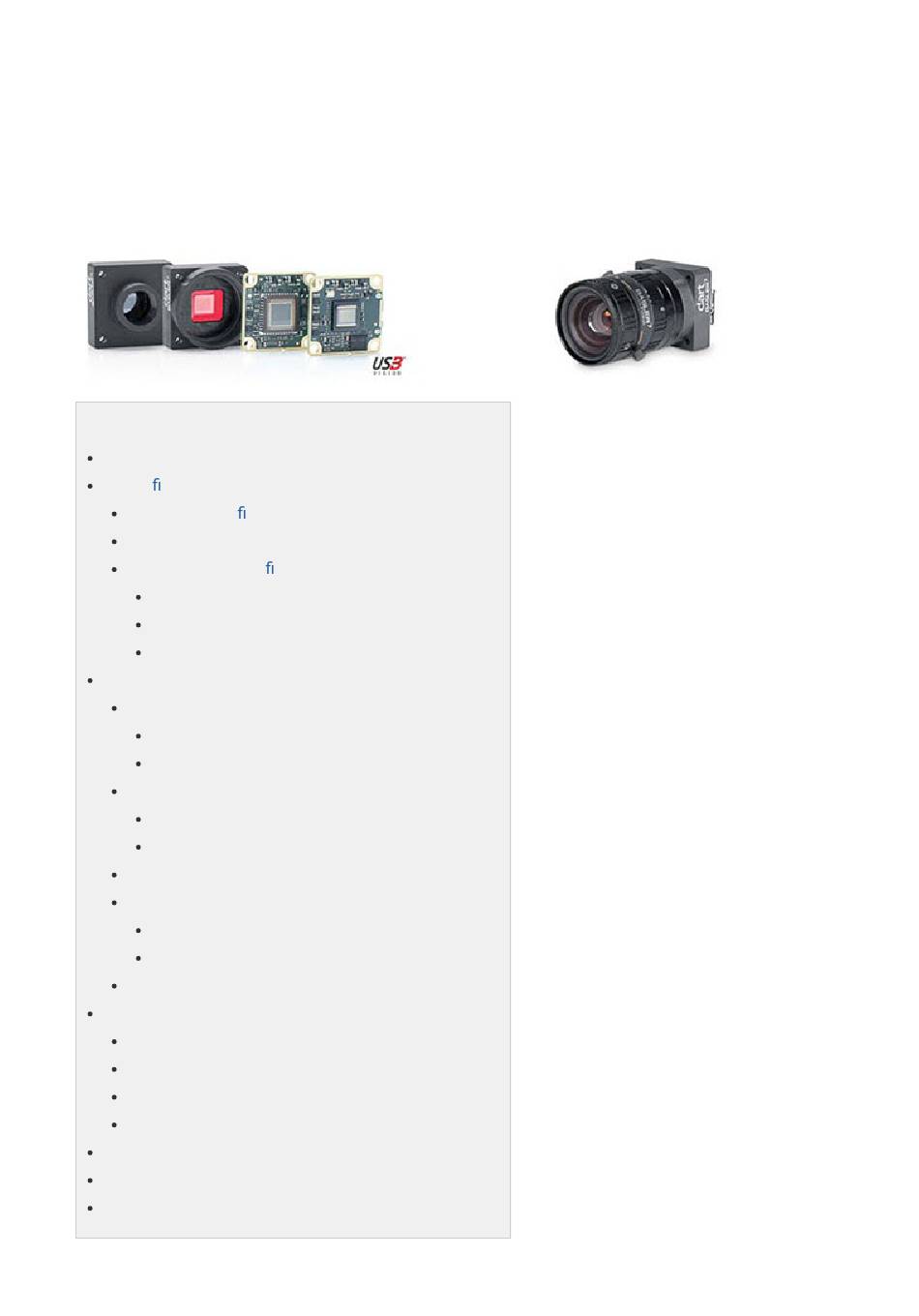

- Page 1 Camera Models > Basler dart USB 3.0 > daA2500-14um daA2500-14um The daA2500-14um Basler dart USB 3.0 camera with an ON Semiconductor MT9P031 mono CMOS sensor delivers 14 frames per second at 5 MP resolution. In this topic Variants Speci cations...
-
Page 2: General Speci Cations
CS-mount: Consists of a circuit board and a camera front. CS-mount lenses can be mounted in the lens mount on the camera front. Basler dart S-mount color cameras are not equipped with an IR cut lter. If you want to operate a Basler dart S-mount color camera with an IR cut lter, you must attach a lens with an integrated IR cut lter to the camera. -
Page 3: Spectral Response
SFNC 2.x), USB3 Vision, REACH Conformity The EU Declaration of Conformity is available on the Basler website. Basler pylon Camera Software Suite (version 4.2 or higher) Software Available for Windows, Linux x86, Linux ARM, and OS X Cables for your camera model... -
Page 4: Camera Dimensions And Mounting Points
2018/2/9 daA2500-14um The spectral response curve excludes lens characteristics and light source characteristics. Mechanical Speci cations Camera Dimensions and Mounting Points Bare Board Variant S-Mount Variant https://docs.baslerweb.com/?filter=Camera:acA2500-14gm#t=en%2Fdaa2500-14um.htm 4/11... -
Page 5: Environmental Requirements
2018/2/9 daA2500-14um CS-Mount Variant Maximum Allowed Lens Intrusion → See Maximum Allowed Lens Intrusion. Stress Test Results → See Stress Test Results. Requirements Environmental Requirements Temperature and Humidity S-Mount and CS- Bare Board Variant Mount Variant Device temperature during 0–75 °C (32–167 °F) 0–50 °C (32–167 °F) -
Page 6: Heat Dissipation
2018/2/9 daA2500-14um storage -20–80 °C (-4–176 °F) -20–80 °C (-4–176 °F) 20–80 %, relative, non- 20–80 %, relative, non- Humidity condensing condensing Ambient temperature according max. 50 °C (122 °F) max. 50 °C (122 °F) to UL 60950-1 UL 60950-1 test conditions: no lens attached to camera; no heat dissipation measures;... -
Page 7: General Purpose I/O Lines
2018/2/9 daA2500-14um You must supply camera power that complies with the Universal Serial Bus 3.0 speci cation. The camera’s nominal operating voltage is 5 VDC, effective on the camera’s connector. General Purpose I/O Lines The camera has two direct-coupled GPIO lines that are accessed via contact 3 and 4 of the I/O connector on the back of the board. -
Page 8: Circuit Diagrams
USB 2.0 port. Otherwise, the camera may not work properly. avoid EMI, cables must be shielded, as speci ed in the USB 3.0 standard. Basler recommends using USB 3.0 cables from the Basler Vision Components range. -
Page 9: Usb 2.0 Compatibility
Basler Vision Components range. USB 2.0 Compatibility All Basler dart USB 3.0 cameras are USB 2.0 backward compatible. However, camera performance is limited when connected to a USB 2.0 port: In order to handle the lower USB 2.0 bandwidth, the DeviceLinkThroughputLimit parameter value is set to 32 000 000 (32 MByte/s). -
Page 10: Usb 3.0 Connector
Connection assignments and numbering adhere to the Universal Serial Bus 3.0 standard. The recommended mating connector is any standard Micro-B USB 3.0 plug. Depending on how you integrate the Basler dart into your system, you must select a corresponding USB 3.0 connector that matches the orientation of the dart USB 3.0 connector in the mounted position. -
Page 11: Installation
Allows you to trigger multiple dart USB 3.0 cameras simultaneously. Protects the dart camera against short circuits. The board can be mounted on the back of the Basler dart circuit board. The connectors of the I/O board replace the standard I/O connector of the Basler dart.
