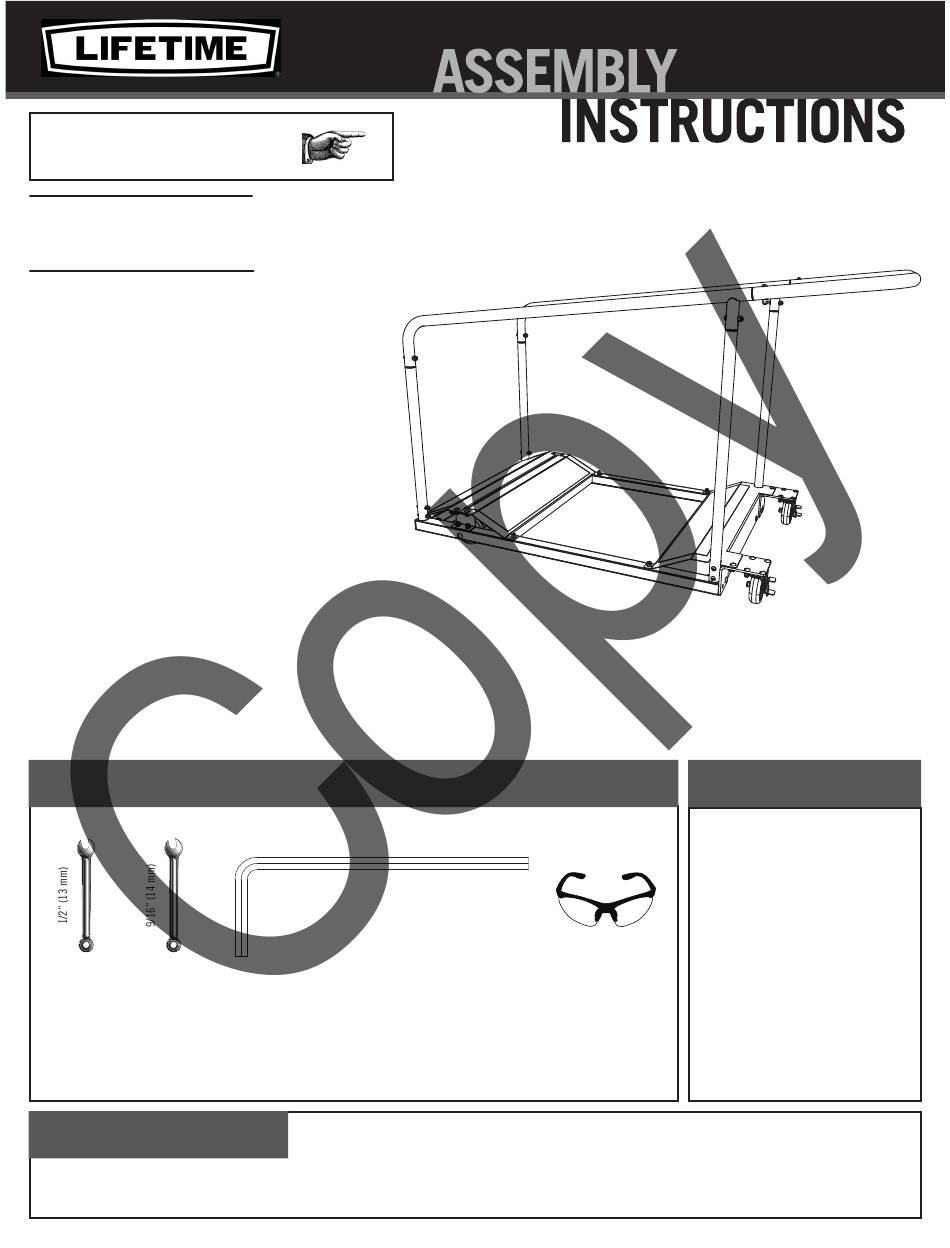

TABLE CART
Lifetime tables carts are designed to be strong and
durable. We strive to make assembly as easy as
possible without compromising quality. If you
get stuck, we have tools to help:
• Level Ground
Assemble the Table on level ground
• Recruit Friends and Family
Assembly should take 2 people about 1–2
hours to complete.
TOOLS REQUIRED
NEED HELP? TALK TO US!
Call: 1-800-225-3865
7:00 am - 5:00 pm (Monday - Friday) MST
and 9:00 am - 1:00 pm Saturday MST
DNU 3/16" (x1)
(Provided)
Lifetime's Assembly Experts offer quick responses and great customer service.
Web: www.lifetime.com/instructions
Live Chat: www.lifetime.com/instructions
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Parts Identifi er............................6
Lower Frame Assembly................7
Upper Frame Assembly..............11
Base Assembly.........................16
Cleaning & Care........................23
Registration..........................24
Warranty...............................25
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number:
Product ID:
80339
