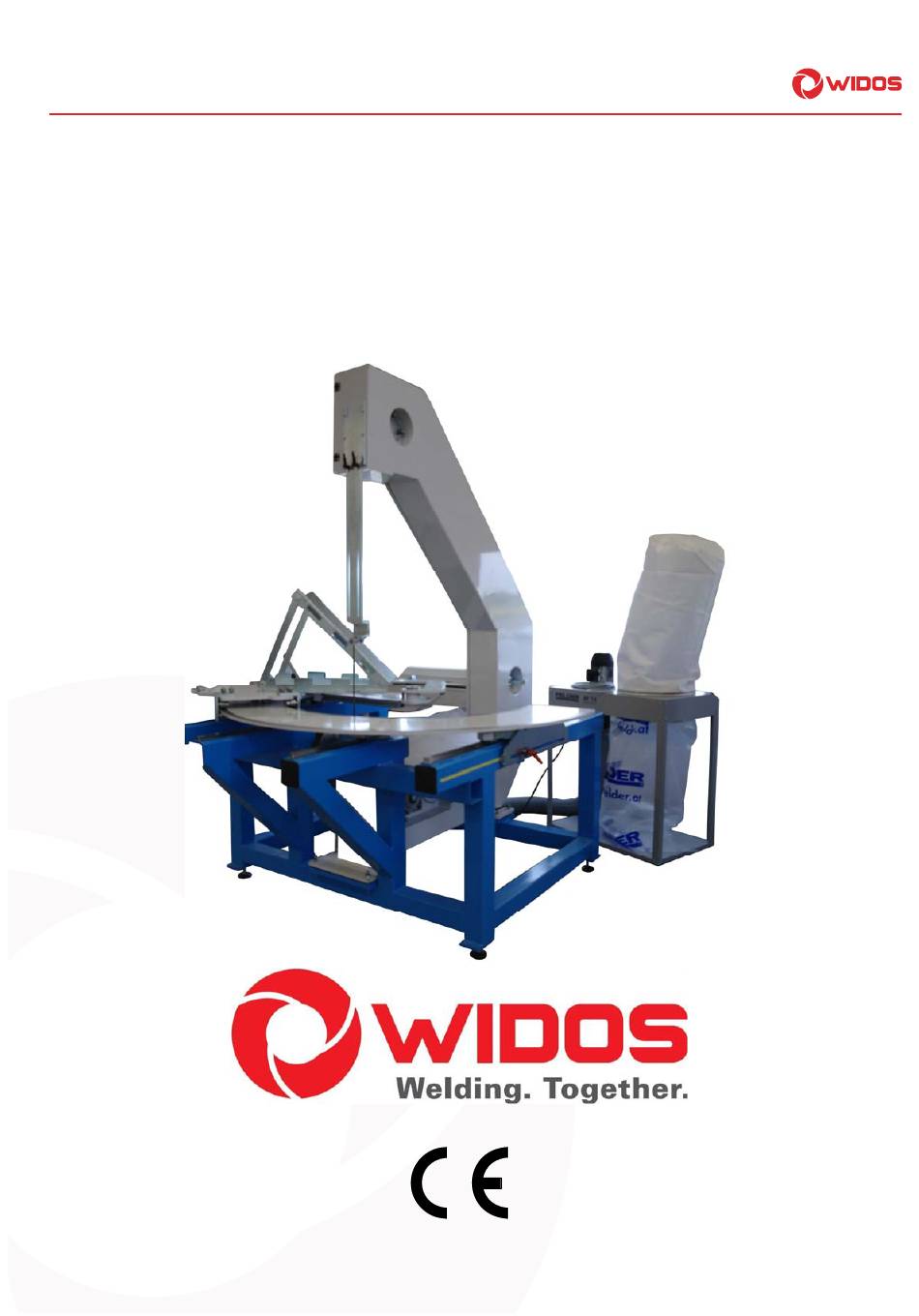

- Page 1 D-71254 Ditzingen +49 7152 9939 40 GmbH E-Mail: info @ widos.de Internet: www.widos.de Working Instructions Translation Radial band saw RSR 630 Keep for further use! Headquarters: D-71254 Ditzingen Country Court Stuttgart HRB 200973 Managing directors: Jürgen Dommer, Dr. Kai Dombrowski...
- Page 2 Order of spare parts and after sales service: Manufacturer’s address WIDOS Wilhelm Dommer Söhne GmbH Einsteinstr. 5 D -71254 Ditzingen Phone: +49 7152 9939 0 Fax: +49 7152 9939 40 E-Mail: info@widos.de 10.04.17 Working instructions WIDOS RSR 630 Page 2 of 28...
- Page 3 Due to this structure, the searched information can be easily found. 4/10/2017 WIDOS Wilhelm Dommer Söhne GmbH Einsteinstraße 5 D-71254 Ditzingen All rights reserved. Reprinting only allowed with permission of the corporation. Any changes are subject to technical innovations. 10.04.17 Working instructions WIDOS RSR 630 Page 3 of 28...
-
Page 4: Table Of Contents
4.2.Saw blade guiding and saw blade cover ..................15 4.3.Adjust the cutting radius ....................... 16 4.4.Vacuum device ..........................17 5. STARTING AND OPERATING .................... 18 5.1.Starting ............................18 5.2.Clamp the pipes ..........................19 10.04.17 Working instructions WIDOS RSR 630 Page 4 of 28... - Page 5 6.4.Set and tension the saw blade ....................... 23 6.5.Replace saw blade ........................24 6.6.Disposal ............................25 7. ELECTRIC DIAGRAMS ...................... 26 8. DECLARATION OF CONFORMITY ..................28 10.04.17 Working instructions WIDOS RSR 630 Page 5 of 28...
-
Page 6: Product Description
Usage and purpose-oriented use The WIDOS radial band saw RSR 630 is a special machine destined for the cutting of plastic pipes up to Ø 630 mm and a cutting radius up to 600 mm as described in the following manner. -
Page 7: Designation Of The Product
Gear wheel D400 (replacement) 5442105 Deflection pulley D400 (replacement) 5442104 Saw blade guide pulley 6002 2 Z (rear) on request Saw blade guide pulley 6201 2 Z (lateral) on request 10.04.17 Working instructions WIDOS RSR 630 Page 7 of 28... -
Page 8: Safety Rules
T h e r e g u l a t i o n s f o r t h e p r e v e n t i o n o f a c c i d e n t s a r e v a l i d ( U V V ) . 10.04.17 Working instructions WIDOS RSR 630 Page 8 of 28... -
Page 9: Obligations Of The Owner
A person who is being trained may only work at the machine under supervision of an experienced person. 10.04.17 Working instructions WIDOS RSR 630 Page 9 of 28... -
Page 10: Dangers While Handling The Machine
2.7. Dangers while handling the machine The band saw WIDOS RSR 630 is constructed according to the latest technical standard and the acknowledged technical safety rules. However, dangers for the operator or other persons standing nearby may occur. Also material damages are possible. -
Page 11: Specific Dangers
Even at purpose-oriented use and even if following all the relevant safety instructions, the following risks remain due to the construction conditional on the purpose of operation of the machine: Injuries caused by parts of the work pieces which are squirting away. 10.04.17 Working instructions WIDOS RSR 630 Page 11 of 28... -
Page 12: Warranty And Liability
unsatisfactory checking of parts of the machine that are subject to wear and tear repairs performed in an inexpert way In case of catastrophes and force majeure. 10.04.17 Working instructions WIDOS RSR 630 Page 12 of 28... -
Page 13: Functional Description
Having completed all settings switch the saw motor on cut the radius by moving the swiveling plate. When the cutting operation is finished, switch off the saw blade motor. Unclamp the pipe. 10.04.17 Working instructions WIDOS RSR 630 Page 13 of 28... -
Page 14: Operating And Indicating Elements
Saw blade Deflection pulley with set screws and eccentric for saw blade tension Switch cabinet with fuse Drive motor and drive wheel Leveling foot (4 pieces) to adjust the saw 10.04.17 Working instructions WIDOS RSR 630 Page 14 of 28... -
Page 15: Fuse
Hold tight to the saw blade guiding, release the fixing handles and shift the saw blade guiding to the necessary height. Fix the saw blade cover by the fixing handles. 10.04.17 Working instructions WIDOS RSR 630 Page 15 of 28... -
Page 16: Adjust The Cutting Radius
Shift the swiveling plate until the desired radius is shown on the measuring tape. Fix setting with both clamping levers. Reading edge Clamping lever 10.04.17 Working instructions WIDOS RSR 630 Page 16 of 28... -
Page 17: Vacuum Device
E.g. shift the extraction hose from one of the vacuums below the guard plate just in front of the saw blade. Necessarily secure the vacuum against shifting e.g. by vibration during cutting. Always activate the vacuum device while cutting. 10.04.17 Working instructions WIDOS RSR 630 Page 17 of 28... -
Page 18: Starting And Operating
5.1. Starting The saw RSR 630 must be adjusted by means of the leveling screws in the machine feet in such a way that the swiveling plate is horizontal and the saw arm is vertical. Connect the mains plug to the local power supply 230 V / 16 A / 50 Hz. -
Page 19: Clamp The Pipes
In order to make pipe clamping easier, the machine features a limit stop. The pipe must be shifted towards this limit stop and then be fixed by the belt. Limit stop 10.04.17 Working instructions WIDOS RSR 630 Page 19 of 28... -
Page 20: Adjust Angle For Branch Pipe 45° And 60
Depending on pipe size and angle it is necessary to shift the prism in order to minimize the unprotected pipe overhang. Release the hexagon screws „3“ and shift the support including prism on the necessary distance. 10.04.17 Working instructions WIDOS RSR 630 Page 20 of 28... -
Page 21: Cutting Radiuses
Grab the lever (no. 4) with the right hand and move the swiveling device with adequate speed in order to cut the radius. As soon as the pipe has been cut, the remaining piece of the pipe drops down in the rear area! 10.04.17 Working instructions WIDOS RSR 630 Page 21 of 28... -
Page 22: Maintenance / Storage / Transport
For machines with an especially high usage percentage the testing cycle should be shortened. The work should be performed at WIDOS or by an authorized partner. The linear guides must be cleaned every week e.g. with a brush. Check the linear guide carriages every 3 months and grease them over the lubricating nipple if necessary. -
Page 23: Remove Cutting Chips From The Saw Arm
In case that the saw blade runs unevenly, check if the saw blade is in the central position or if the deflection pulleys are damaged / soiled. 10.04.17 Working instructions WIDOS RSR 630 Page 23 of 28... -
Page 24: Replace Saw Blade
In order to replace the saw blade pull the power plug. Release the tension of the saw blade at the deflection pulley with eccentric (chapter: 6.4). Detach the pan-head screws and remove the guard plate. Guard plate Pan-head screw 10.04.17 Working instructions WIDOS RSR 630 Page 24 of 28... -
Page 25: Disposal
Disposal At the end of their lifetime, the machine and the wear parts have to be disposed of properly and environment-friendly, in accordance with the national laws regulating waste disposal. 10.04.17 Working instructions WIDOS RSR 630 Page 25 of 28... -
Page 26: Electric Diagrams
WIDOS Einsteinstr. 5 Phone +49 7152 99 39 0 Wilhelm Dommer Söhne D-71254 Ditzingen +49 7152 99 39 40 GmbH E-Mail: info @ widos.de Internet: www.widos.de 7. Electric diagrams 10.04.17 Working instructions WIDOS RSR 630 Page 26 of 28... - Page 27 Electric diagrams Chapter 7 10.04.17 Working instructions WIDOS RSR 630 Page 27 of 28...
-
Page 28: Declaration Of Conformity
2. DIN EN 60204.1 Electric equipment of industrial machines 3. EN 60555, EN 50082, EN 55014 Electro-magnetic resistance The technical documentation is completely available. Ditzingen, 4/10/2017 Martin Dommer (Technical director) 10.04.17 Working instructions WIDOS RSR 630 Page 28 of 28...
