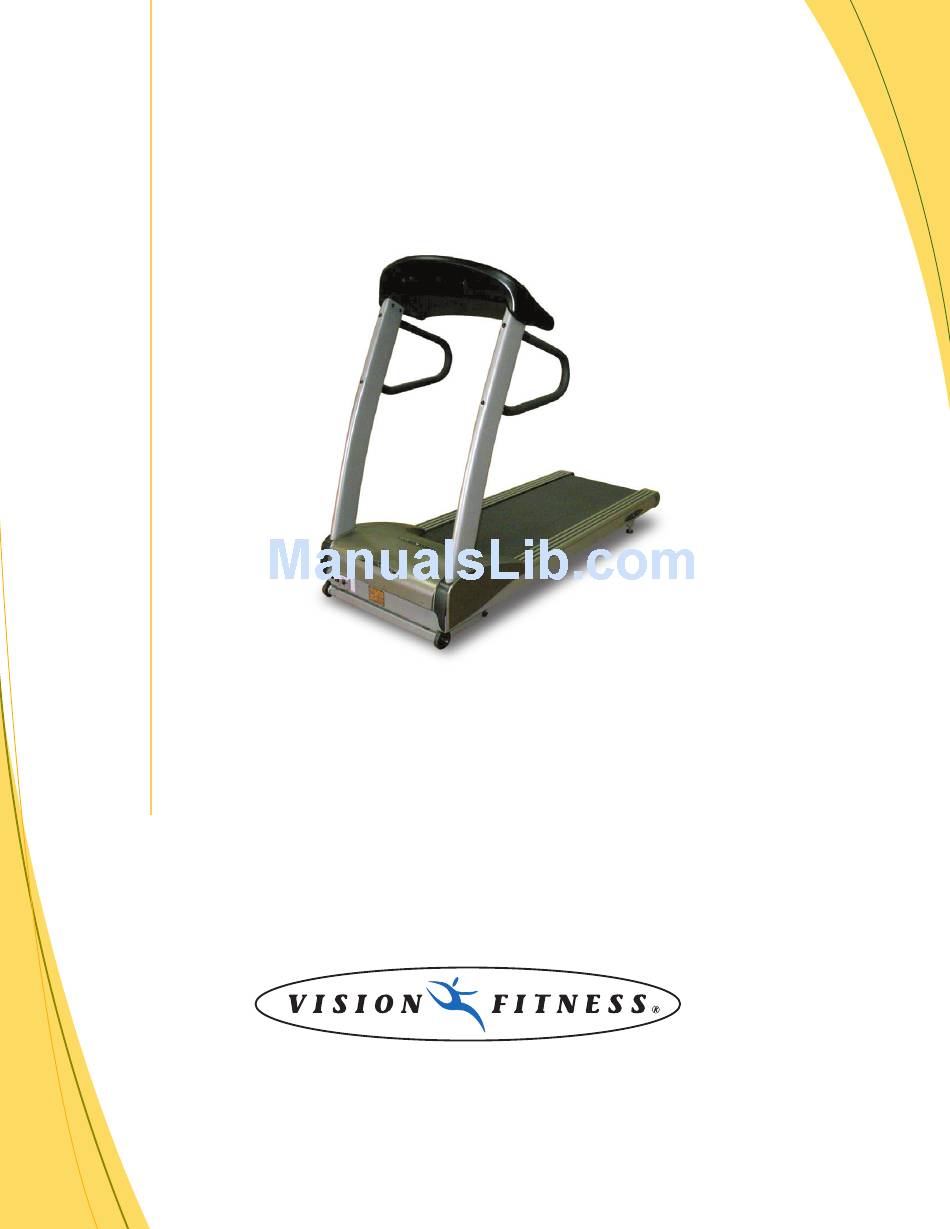

- Page 1 A s s e m b l y G u i d e T9200, T9300HRT, T9500HRT, T9500HRT Ortho T9600HRT Comfort T9700 Series PLATFORM TREADMILLS...
- Page 2 T9200, T9300HRT, T9500HRT, T9500HRT Ortho AND T9600HRT Comfort AND T9700 Series To avoid possible damage to this Platform Treadmill, please follow these assembly steps in the correct order. Before proceeding though, find your new Platform Treadmill’s serial number, located on the underside of the main frame, and enter here: Refer to this number when calling for service, and also enter this serial number on your Warranty Card and in your own records.
- Page 3 TOOLS, HARDWARE, & PARTS INCLUDED 5mm L-Shaped Wrench 8mm Allen Wrench Screwdriver PARTS BOX Water Bottle, Qty: 1 Heart Rate Chest Strap, Qty: 1 ( Except T9200 ) Color-coded Hardware Bags Owner’s Guide Assembly Guide Warranty Card...
-
Page 4: Hardware Included
HARDWARE INCLUDED BLUE BAG ORANGE BAG M8 x 15L Bolts M8 x 20L Bolts Quantity: 4 Quantity: 2 M8 x 55L Flathead Bolts Quantity: 4 YELLOW BAG M4 x 12L Panhead Screws Quantity: 4 M8 x 135L Bolts Quantity: 4... - Page 5 Make sure that the data (1 large ribbon cable) goes through the large hole in the lower part of the console upright. T9200, T9300HRT, T9500HRT, T9500HRT Ortho & T9600HRT...
-
Page 6: Data Cables
& right console supports. • Install the motor cover making sure that the rubber covers are inserted into the motor cover. Secure the motor cover using the six (M4 x 12L) screws (see Yellow bag). BLUE BAG DATA CABLES T9200, T9300HRT,... -
Page 7: Auto Calibration
STEP Once the treadmill is plugged in, you need to perform an Auto-Calibration to assure maximum performance. MODELS T9300HRT, T9500HRT, T9500HRT Ortho, & T9600HRT Comfort: DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION • You need to access User Engineering Mode to run the Auto-Calibration. With the Safety Key in place, please hold down SPEED DOWN and SELECT for 5 seconds. -
Page 8: Belt Tension
500 South CP Avenue • P.O. Box 280 • Lake Mills, WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 7.04 Part #Z92TM49C-AG AG18.12PRD REV6 -turn at a time until the...
