Part List:

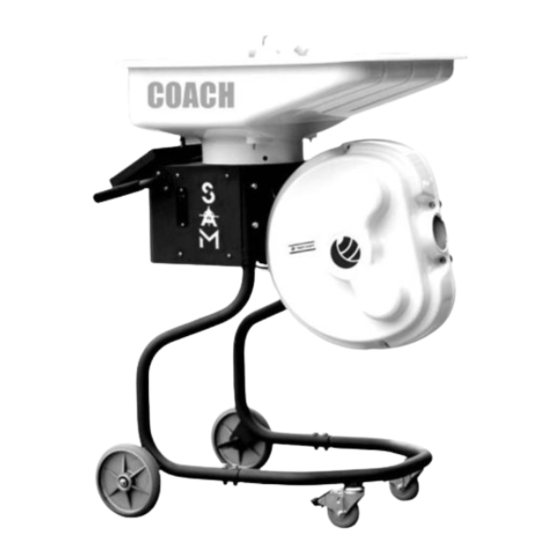

The SAM commercial ball machine is shipped in two boxes.
Box One is the Frame Assembly and contains the following parts:
a. Right Frame Leg x 1
b. Left Frame Leg x 1
c. U Frame x 1
d. Ball Hopper x 1
Box Two is the Ball Delivery Unit and contains the following parts:
a. Ball Delivery Unit x 1
b. Right Handle x 1
c. Left Handle x 1
d. 3/8– 16 x 2" Hex head cap screws (HHCS) for frame assembly x 4
e. 3/8 lock washers for frame assembly x 4
f. 1/4 - 20 x 1/2" Phillips pan head screws for ball hopper x 4
g. 1/4 washers for ball hopper x 4
h. 3/8 – 16 x 2 1/2" hex head cap screws for ball delivery unit x 4
i. 3/8 lock washer for ball delivery unit x 4
j. 1/4 - 20 x 3/4" button head cap screws for handles x 4
k. 1/4 lock washers for handles x 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sam Coach
Summary of Contents for Sam Coach

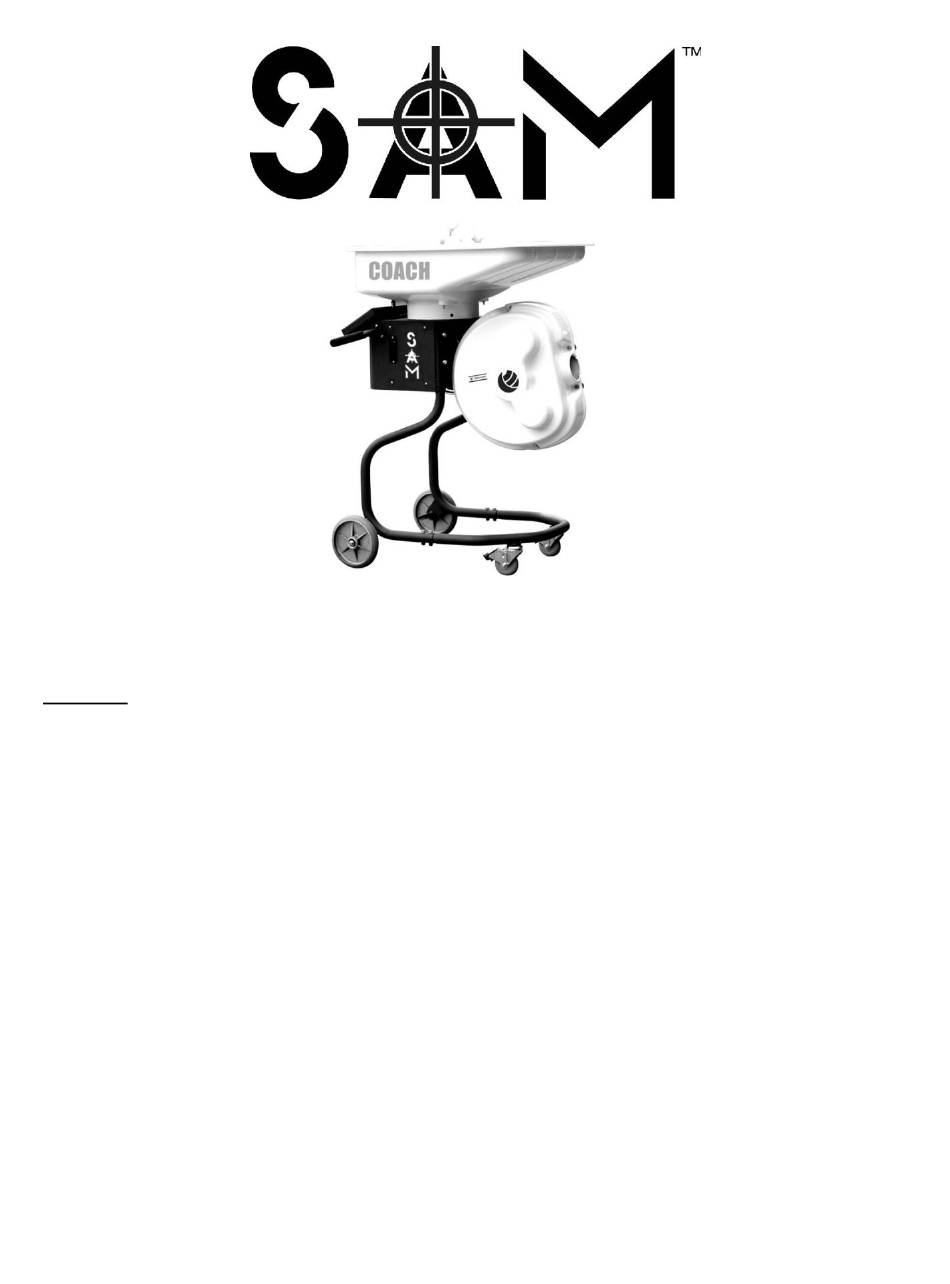

- Page 1 Part List: The SAM commercial ball machine is shipped in two boxes. Box One is the Frame Assembly and contains the following parts: a. Right Frame Leg x 1 b. Left Frame Leg x 1 c. U Frame x 1 d.
-
Page 2: Assembly Instructions
Assembly Instructions: Open Box One that contains the Frame Assembly. Confirm that all parts listed for Box One are present. If any parts are missing, please call Match Mate Tennis at 614-836-2677. Attach Right Frame Leg to the right side of the U Frame using the 3/816 x 2” (HHCS) and 3/8 lock washers. -
Page 3: Important Safety Information
Never store the machine outside. Exposure to rain and snow will shorten the life of the machine. Important Safety Information The SAM™ ball machine is specifically designed to throw tennis balls at a high rate of speed. To avoid any bodily harm, please observe the following precautions at all times: WARNING: Do not reach or look into the ball exit hole without first turning the main power off and only after the wheels come to a complete stop. - Page 4 SAM COACH™ POWER The power entry module is located on the back of the ball machine. Unless designated otherwise, the SAM Coach™ requires 110 Volts. The power on/off switch and fuse are also on the back of the machine. FEED To turn the ball feed ON press the green oval button marked BALL FEED ON/ OFF.
- Page 5 Activate this option to shoot balls randomly from the programmed positions. REMOTE CONTROL All SAM Coach™ ball machines are equipped with a remote control function. To activate the remote press REMOTE ON/OFF button on the control panel (red light indicates function is on). When remote function is turned ON, press the button on the remote control to activate the ball feed.
- Page 6 SAM SPORT™ POWER The power entry module is located on back of the ball machine. Unless designated otherwise, the SAM Sport™ requires 110 Volts. The power on/off switch and fuse are also located on the back of the machine. FEED To activate the ball feed carousel, turn the feed knob clockwise to the desired feed rate.
- Page 7 REMOTE CONTROL All SAM Sport™ ball machines are equipped with a remote control function. To activate the remote press REMOTE ON/OFF button on the control panel (red light indicates function is on). When remote function is turned ON, press the button on the remote control to activate the ball feed.
-
Page 8: Limited Warranty
Limited Warranty Match Mate Tennis warrants its products to be free from defect in materials and workmanship for a period of two years. Match Mate Tennis will repair or replace defective products at its discretion, without charge. Evidence showing the date of purchase and serial number must be submitted at the time the warranty claim is made.
