4. Connection

4.1 Accessories connection

Only carry out electrical connections once the electricity supply to the system has been switched off.
Disconnect any

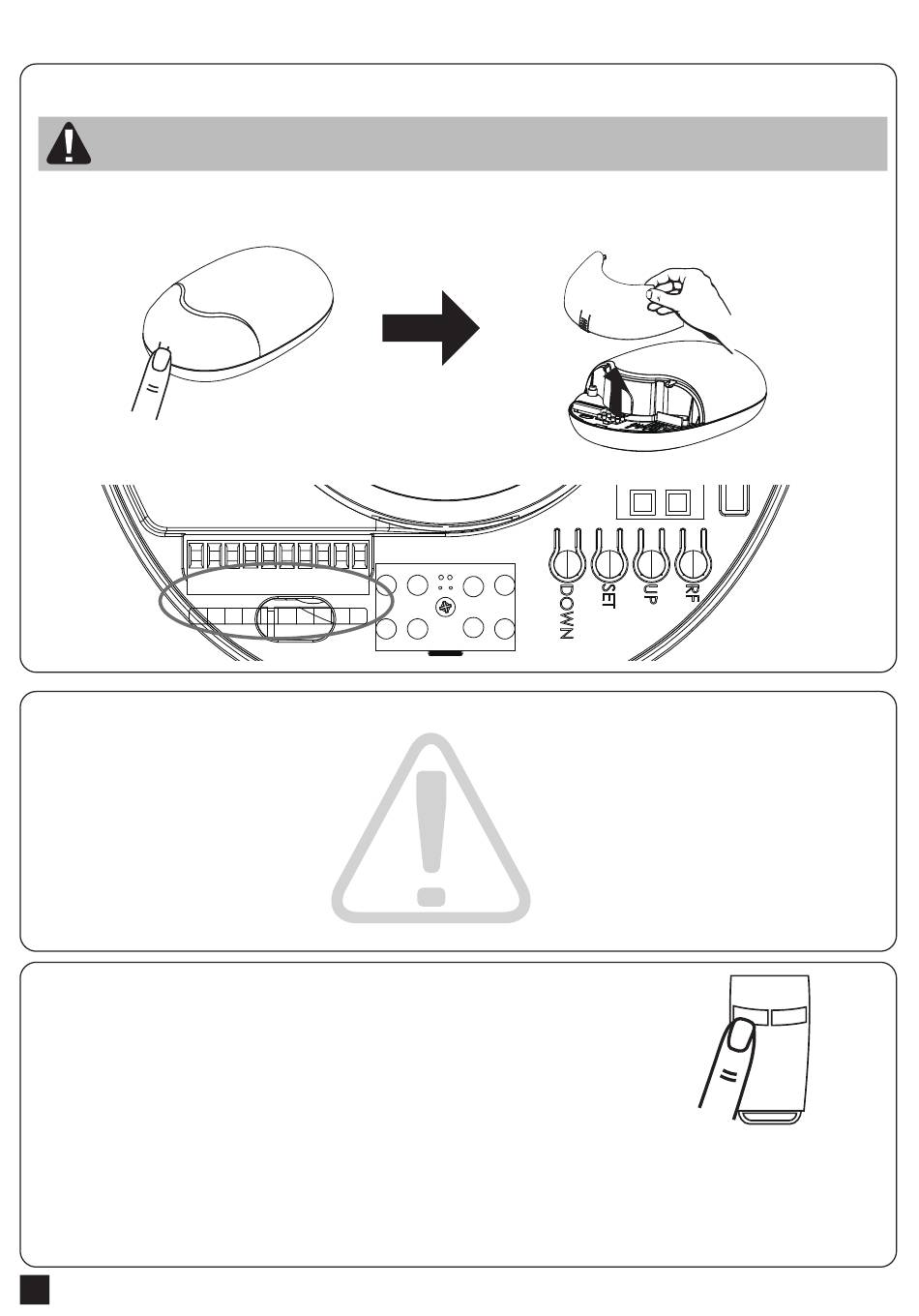

A. Open the cover in order to access the electronic connection terminal of the PG Series garage gate opener.
Push
B. Connect the wires of each accessories on the terminal. (If necessary)
EXT- EXT+ LIT- LIT+ PB GND PH +24V GND +BATT

4.2 Door position for start-up phase

The manufacturers recommend you unhook the carriage and position the leaf at approximately half travel before starting the
checking and start-up phase of the automation. This will ensure the leaf is free to move both during opening and closure.
Power supply connection
Connect the plug.If necessary, use a commercial adaptor if the plug on the PG Series unit does not correspond to the socket
available.As soon as the system is powerted, you should check the LED in the display. Make sure the LED display is ON.
Never cut or remove the cable supplied with PG Series garage opener. If not already available, the power socket of PG Series
garage opener connection must be fitted by skilled and qualified personnel in strict observance of current legislation, standards and
regulations.
The power supply line must be protected from short circuits and ground leakage.

4.3 Transmitter memorizing and erasing process

A. Transmitter Memorizing:
A B
Press "RF Learn" button for 3 seconds, and the Display will show "CS"; then press
the transmitterA button within 10 seconds; the"CS" will blink three timesand show
"CS". After 10 seconds without any movement, "CS" will be off. The transmitter
learning is completed.
B. Erasing Transmitter Memory:
Press and hold "RF Learn" button for 10 seconds, the display will show "CS". When "CC" show up, the memory is cleared.
C. Memorizing by memorized transmitter:
Press and hold A and B button for 5 seconds, LED light and external flash light will start to blink in the same time. Within 10 seconds,
press any button of the un-memorized transmitter 2 seconds, the transmitter will be memorized after LED light and external flash
light are off. To program by memorized transmitter, just can do the transmitter learning one by one.
GARAGE DOOR OPENERS USER MANUAL
9
