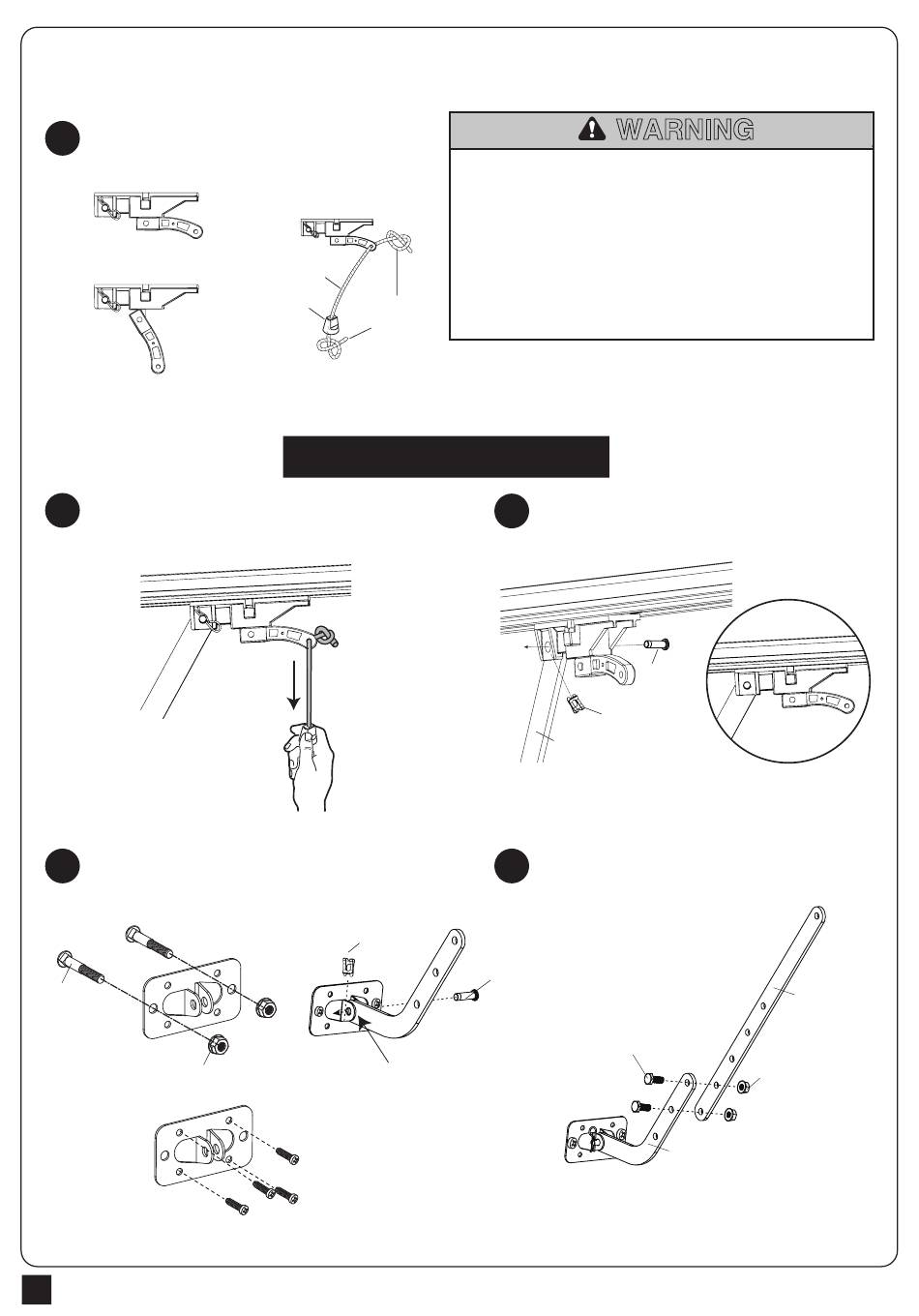

3.5 Connect release section to the garage door
Connect the (7) Release rope on the (8) Release
1
trolley
ENGAGED
RELEASED
2
Pull the (7) Release rope to disengage the
(8) Release trolley
Fasten the (12) Door bracket on the center of the
4
garage door. Connect (14) Curved door arm to (12)
Door bracket.
21
Bolt
23
Nut
OR
7
Secure handle with overhand knot
and heat seal rope.
Rope
7 Emergency
Release Handle
Overhand
Knot
CONNECT DOOR ARM TO TROLLEY
Pull Down
to Release
Trolley
17
R-type pin
To prevent possible SERIOUS INJURY or DEATH from a falling
garage door:
• If possible, use emergency release handle to disengage trolley ONLY
when garage door is CLOSED. Weak or broken springs or
unbalanced door could result in an open door falling rapidly and/or
unexpectedly.
• NEVER use emergency release handle unless garage doorway is
clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope knot
becomes untied, you could fall.
NOTE: Handle should hang 6 feet (1.5 m) above floor.
Ensure that the rope and handle clear the tops of all
vehicles to avoid entanglement.
50cm
3
Connect (15) Straight door arm to Release trolley
15
Straight
Door Arm
Connect (14) Curved door arm and
5
a straight door arm with bolts and nuts.
22
Clevis Pin
Connect Curved
Door Arm to
Door Bracket
WARNING
22
Clevis Pin
17
R-type pin
19
Hex Bolt
14
Curved
Door Arm
GARAGE DOOR OPENERS USER MANUAL
15
Straight
Door Arm
23
Nut
