Summary of Contents for Walter MANOTOP

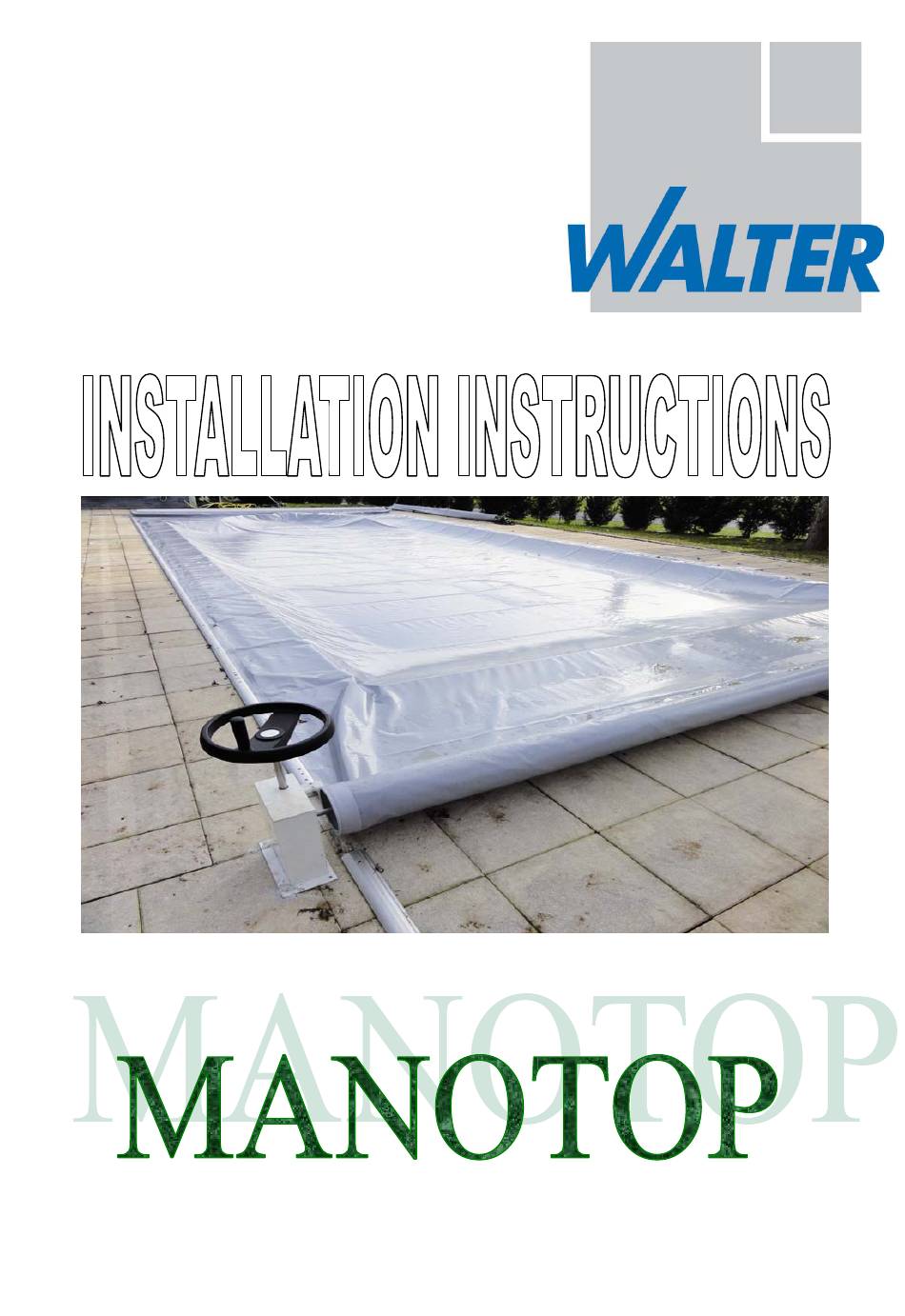

- Page 1 NM MANOTOP 01/2012...
- Page 2 Left overlap Track / track distance MAX. 100 MM Right overlap MAX. 100 mm Opposite side 3D view Storage side...
- Page 3 SUPPLIES REQUIRED: TOP track Track fastening screw kit (ZD 200009) TOP profile connector (ZU 100006) I. POSITION OF TRACKS To lay the tracks, follow these steps: - Mark out a line at distance L from the edge of the pool L = P1 – 15 mm P1 MAX.
- Page 4 - Mark a second line at L = TT – 30 mm from the first one. (TT: track / track distance, as defined in the measurements document) - Measure the right-hand overlap to check it MAX. 100 mm L2 = 100 mm L1 = 200 mm Line marked -Place the tracks along the line, taking care to respect the L1 measurement,...
- Page 5 To check, measure the diagonals. D1 must be equal to D2 with a max. difference of 10 mm II. PLACING THE LEADER GUIDES: - Assembly the guide and track by slotting the two pieces together and fastening with the assembly screw provided. Assembly screw - A screw protrudes underneath the entry guide, so drill a hole in the slab...
- Page 6 II. JUNCTION PIECE: Do not forget to fit the junction pieces when fitting track sections end to end. Junction piece Tracks IV. FASTENING THE TRACKS: - Before drilling the holes, check the position of the tracks along the line you marked out. - Drill all the 8 mm diameter holes, put in the plugs and the 5.5x50 screws and tighten.
- Page 7 I. INSTALLING THE POSTS: 1.1. Rule to be respected when installing the posts: - Mark out the position of the post with the measurements and as shown below 400 mm max. 200 mm 160 mm 160 mm NB: This sketch shows an assembly with the winding wheel on the left. For an assembly with the wheel on the right, reverse the posts.
- Page 8 1.2. Fixing the posts: Once you have marked out the position, pre-assemble the roller. Rubber shim WINDING TUBE Retainer ring Screw H M8x60 Serrated lockwasher M8 Washer Ø 8 Tighten the H M8 screws until the rubber shims come into contact with each other. Then put on 1 retainer ring before fitting onto the post Repeat the procedure for the other side and do not forget to put on the winding shaft centering ring.
- Page 9 II. FITTING THE ASSEMBLY: Rule to be respected when fitting the assembly: - In order to ensure the coaxiality of the assembly, position the winding tube in the posts (no need to worry about the position of the tube in the posts for the moment, as this will be adjusted later).
- Page 10 The tube must be centered in relation to the tracks so that the cover winds correctly onto the winding tube If you have followed the previous procedure correctly, you will be able to position the tube 180 mm from the post on the opposite side to the drive side initially TT –...
- Page 11 Loosen the screws at the beginning of the track and loosen and open the entry guides. Fit the gliders into the track (be careful to ensure they are the right way round - they must be placed in the same position as the ones on the cover) Slide the cover into the beginning of the track on each side, then raise the entry guides and screw the tracks back down again...
-
Page 12: Fitting The Brackets
SUPPLIES REQUIRED: -Leading edge bar - TOP bracket kit I. FITTING THE COVER ONTO THE LEADING EDGE BAR: Slide the cover into the leading edge bar using the rod in the bar groove (weld facing downward) The cover fits here II. - Page 13 II. FITTING THE LEADING EDGE BAR The cover is not shown Screws Plug M8x15 Linking bracket WARNING: NEVER FULLY TIGHTEN THE NUTS THAT FASTEN THE LEADING EDGE COME BACK A ½ TURN TO RELEASE THE BAR Screws M8x20 Glider IV. FITTING THE PULLING SYSTEM WITH HANDLES: Depending on the type of pool and the configuration, it is possible in some cases to close the pool alone.
- Page 14 Finish putting in the screws . Pull the cover tight and make a fold about 500 mm from the edge, and put in a screw . Fasten the edges of the cover 20 mm from the edge of the winding tube .
- Page 15 Coupling in the open position to close the cover (placing the cover over the pool) Coupling OPEN Coupling in the engaged position to open the cover (rolling the cover on the shaft) Coupling ENGAGED To engage the coupling more easily, the wheel can be used to position the key opposite its keyway Summary: To open the pool: Coupling engaged...
- Page 16 To avoid the cover and leading edge bar being on the slant, the winding tube must be correctly adjusted. See diagrams below. The tube is moved in steps of 5 mm LEADING EDGE BAR Cover Move the winding tube to the left LEADING EDGE BAR Cover...
- Page 17 Fill the white container with water or sand to weigh down the pump on the cover See instructions enclosed with the pump...
