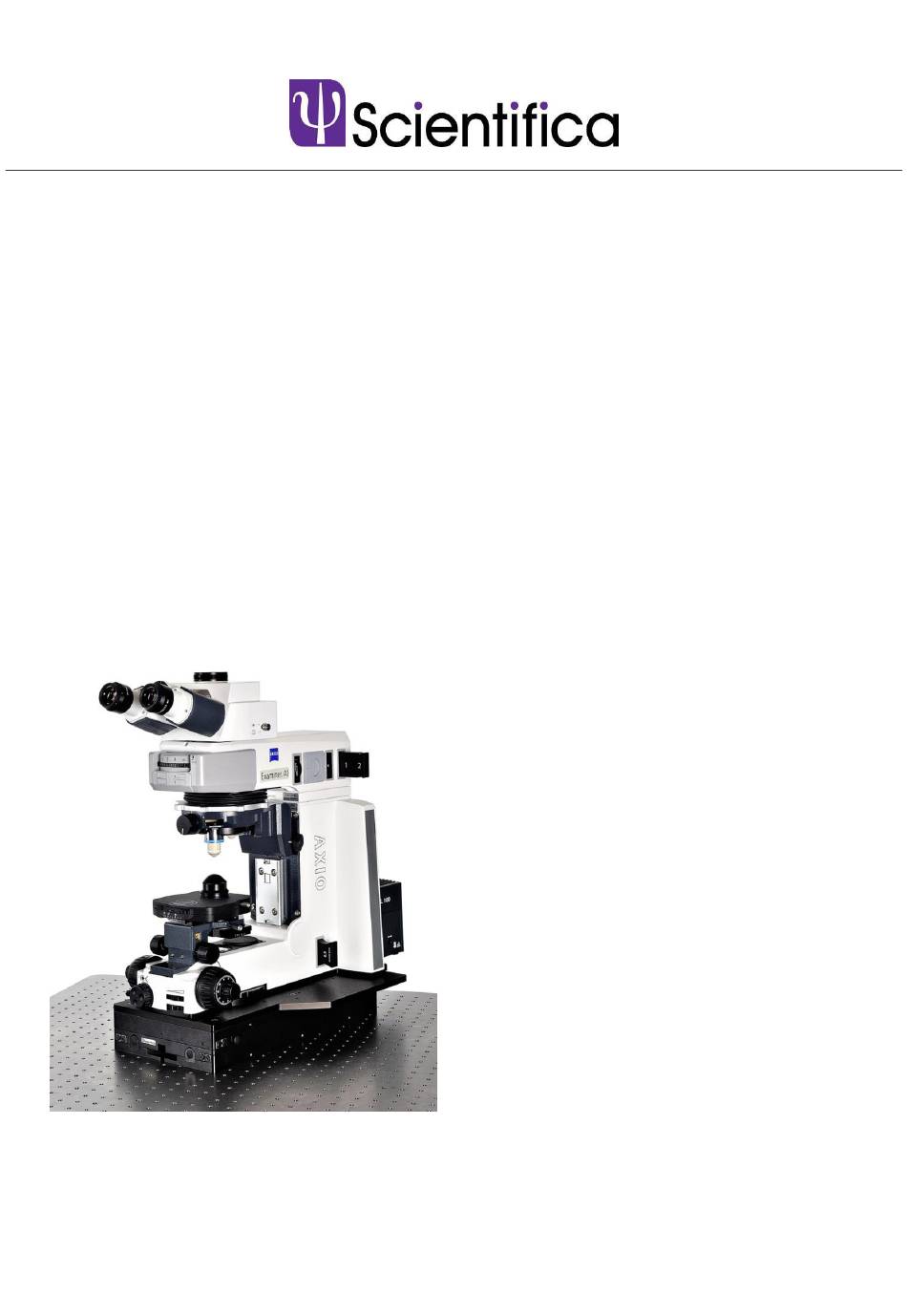

- Page 1 Universal Motorised Stage (UMS) Setup and Operation Manual Also covers: SliceScope Motorised XY stage Revision 5.0 Revision Date: 24/09/2015 Manual Part No.: S- MAN-1013...
- Page 2 © Scientifica Ltd 1A Kingfisher Court, Brambleside, Bellbrook Industrial Estate, Uckfield, TN22 1QQ, United Kingdom Tel +44 (0) 1825 749 933 Fax +44 (0) 1825 749 934 info@scientifica.uk.com...
-
Page 3: Table Of Contents
3.2.3 Control racks ................. 7 3.3 Mounting the UMS ............... 7 3.3.1 Mounting the UMS to an anti-vibration table ......7 3.4 Mounting a microscope to the stage ..........8 3.4.1 Conventional mounting of microscopes to the UMS ....9 3.4.2 Alternative mounting of microscopes to the UMS .... -
Page 4: Product Introduction
The Universal Motorised Stage (UMS) is a motorised translation stage for moving microscopes in X and Y. The UMS provides 50 mm of travel in X and Y with 20 nm electronic resolution. Due to its large load carrying capacity the microscope stage can be used with almost any Zeiss, Leica, Nikon or Olympus inverted or upright microscopes;... -
Page 5: Product Walkthrough
Note: The design of the top plate of the UMS will differ depending on the microscope that will be mounted on it. When used with Scientifica’s Slicescope the UMS is a simple rectangle shape, when used with other manufacturer’s microscope such as Olympus or Nikon it will feature a “winged” top plate to accommodate the footprint of the microscope (See figure A). -
Page 6: Packing List
2.0 Packing List Carefully remove and identify all of the components as listed below. If any of items are missing, contact Scientifica Ltd or your local distributor. Please retain the packaging for storage or future transportation of the system. In the unlikely event of the shipping packaging being damaged, notify your shipping department immediately. -
Page 7: Optional Items
1U rack mounted controller 1 per 1U rack Mains lead, locale specific 1 per 1U rack USB lead (A-type to B-type) Power Cable (cable provided will depend on your country) Software CD Setup and Operation Manual 2.2 Optional items User Interfaces Control Cube PatchPad... -
Page 8: Initial Setup
Please remember: adjustment or removal of any screws or components other than those noted in this manual can adversely affect the performance and operation of your equipment and may invalidate your warranty. If you are unsure of the components discussed here, please contact a Scientifica representative. -
Page 9: Removing The Shipping Brackets
The UMS is fixed to an anti-vibration table using the mounting holes in its lower section, marked ‘A’ and ‘B’ in Figure C. The UMS is attached to the anti-vibration table using either ¼ x 20 or M6 x 12 screws, depending on the thread of the table. -
Page 10: Mounting A Microscope To The Stage
The UMS is compatible with microscopes from all major manufacturers. The majority of these will bolt directly down onto the UMS stage from above. A variety of hole patterns are featured on the top plate to accommodate the requirements of these microscopes. -
Page 11: Conventional Mounting Of Microscopes To The Ums
As an example in the case of a Zeiss FS2 microscope the following steps must be carried out: 1. Remove the top plate from the motorised stage of the UMS by unscrewing the 6 x M6 screws securing it in place. -
Page 12: Installing Optional Accessories
1. Remove the microscope drive belt cover and fine focus band (the slimmer, orange band in the right-hand picture below) 2. Place the Z focus module on the top plate of the UMS, aligning it with the Z module’s mounting holes. Please review section 7.0 for further assistance in identifying these. -
Page 13: Operation Guide
Power on the system using the on/off switch on the front of the 1U rack controller. 4.2 Operating the UMS For operation of the UMS/XY Stage using a User Interface Controller, such as the Control Cube or PatchPad Display, please see the relevant user manual. -
Page 14: Cleaning
Mains power must be disconnected by switching off the mains power supply outlet and disconnecting the mains power supply cable. Compressed air can be used to remove dust from the top of the UMS/XY Stage. Care must be taken to prevent dust entering the unit during the process. -
Page 15: Specifications
Ensure that the speed toggle switch is set to fast mode (and that a suitable speed has been set in the LinLab software) and that the approach toggle switch is set to the O position Check all cables and connectors for damage or loose connections 7.0 Specifications Supply voltage range Supply frequency... -
Page 16: Environmental Conditions
*Dimensions and mounting holes will vary depending on the microscope being mounted, as each top plate is made specific to the microscope. Figure F: SliceScope XY Stage dimensions 7.1 Environmental Conditions The UMS/XY Stage is designed to be operated and stored within the following environmental conditions. For indoor use only ... -
Page 17: Warranty, Technical Queries And Returns
Scientifica’s Service Stock. 3. As soon as Scientifica receives the equipment it will be assessed to establish if any repairs are necessary. If these repairs are outside the warranty then Scientifica will need an order to complete the repairs;... -
Page 18: About Scientifica
Parts will be charged at Scientifica standard list price. For any warranty queries please contact your local distributor or Scientifica Ltd directly. Tel: +44 (0) 1825 749933 E-mail: info@scientifica.uk.com... - Page 19 © Scientifica Ltd 1A Kingfisher Court, Brambleside, Bellbrook Industrial Estate, Uckfield, TN22 1QQ, United Kingdom Tel +44 (0) 1825 749 933 Fax +44 (0) 1825 749 934 info@scientifica.uk.com...
