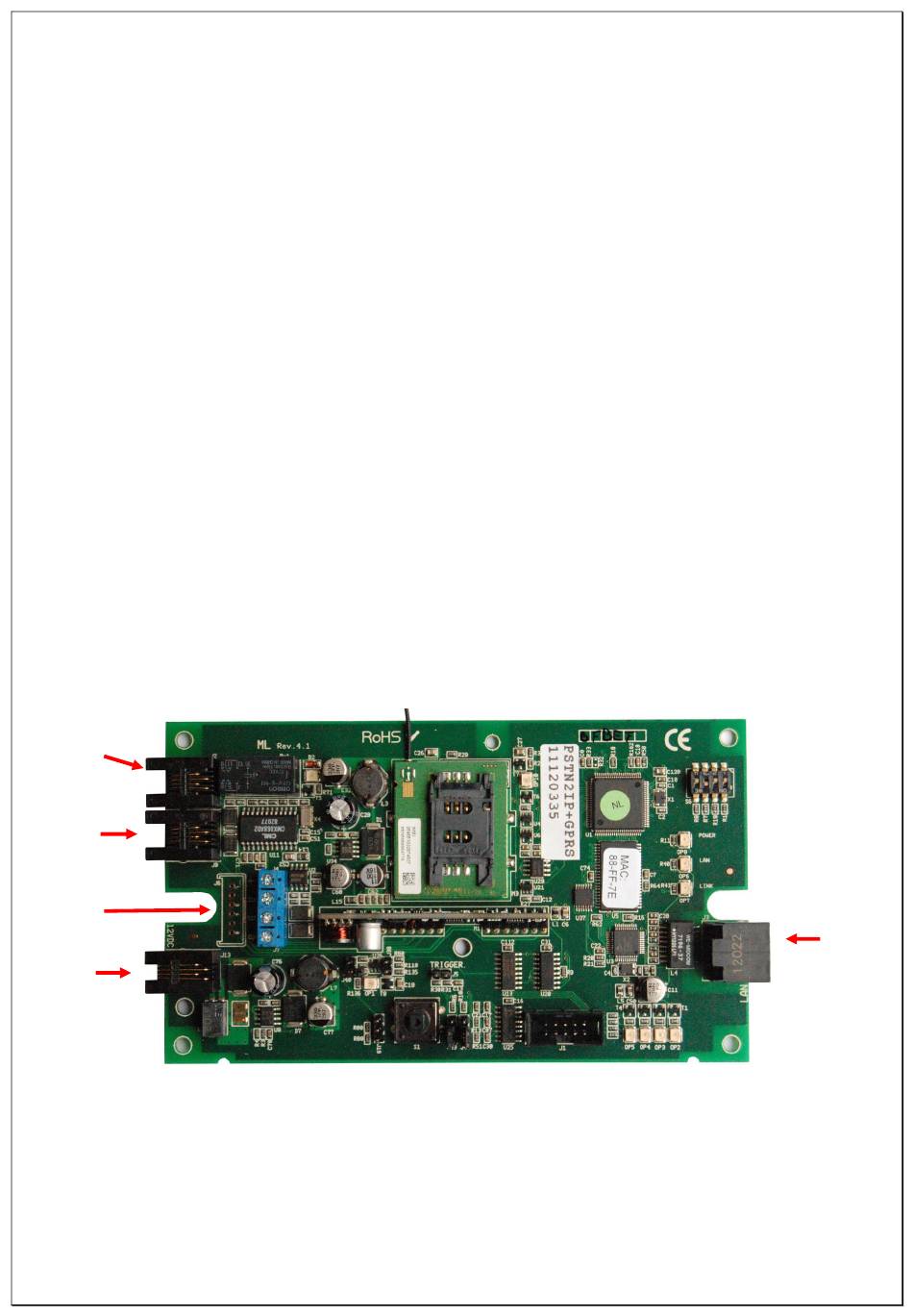

Hardware Installation; Figure 3: Pstn-2-Ip (Gprs) Circuit Board Layout - alphatronics PSTN-2-IP Installation Manual

Hide thumbs Also See for PSTN-2-IP:

Quick reference manual (12 pages)

Table Of Contents

Table of Contents

Mounting

It is advised to place the IP (+ GPRS) transceiver in the cabinet of the control panel. If the control

panel has a metal casing it must have a proper earth connection.

If the IP (+ GPRS) transceiver is used in combination with a Alphatronics CP-508LCD or NG control

panel equipped with a RS-485 connection the transceiver can be connected to the RS-485 bus. Use

the 4 blue terminal blocks (+, A, B, O).

If the IP transceiver is used in combination with a random control panel containing a analog dialer

then the analog dialer can be connected to the PSTN input (CMK) of the IP transceiver. If the

control panel's dialer is still connected to a telephone line (or VoIP), remove this connection.

Connect the control panels analog dialer to the PSTN input (CMK) on the IP (+ GPRS) transceiver.

Attention: the cable between the dialler and IP (+ GPRS) transceiver must not exceed 30m.

Connect the LAN connection of the IP transceiver to a free LAN port on the router.

Next, connect the LAN connection of your laptop to a free LAN port of the internal network.

Set dipswitches 2*

Connect a 12VDC power supply from the control panel to the IP (+ GPRS) transceiver.

Dipswitch 2 set to ON temporarily sets the IP address of the IP (+ GPRS) transceiver to 192.168.0.48

and allows logging into the web-browser by entering the standard User (admin) and no password.

Dipswitch 2 can remain OFF when a User name and password is already programmed and known.

**)

Dipswitch 3 to ON ensures access to the web-browser programming. For a complete list of

dipswitch settings see chapter dipswitch settings.
