alphatronics PSTN-2-IP Installation Manual

Hide thumbs Also See for PSTN-2-IP:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual
PSTN-2-IP (+ GPRS)
&
ALPHAVISION IP (+ GPRS)
installation
manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSTN-2-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for alphatronics PSTN-2-IP

Summary of Contents for alphatronics PSTN-2-IP

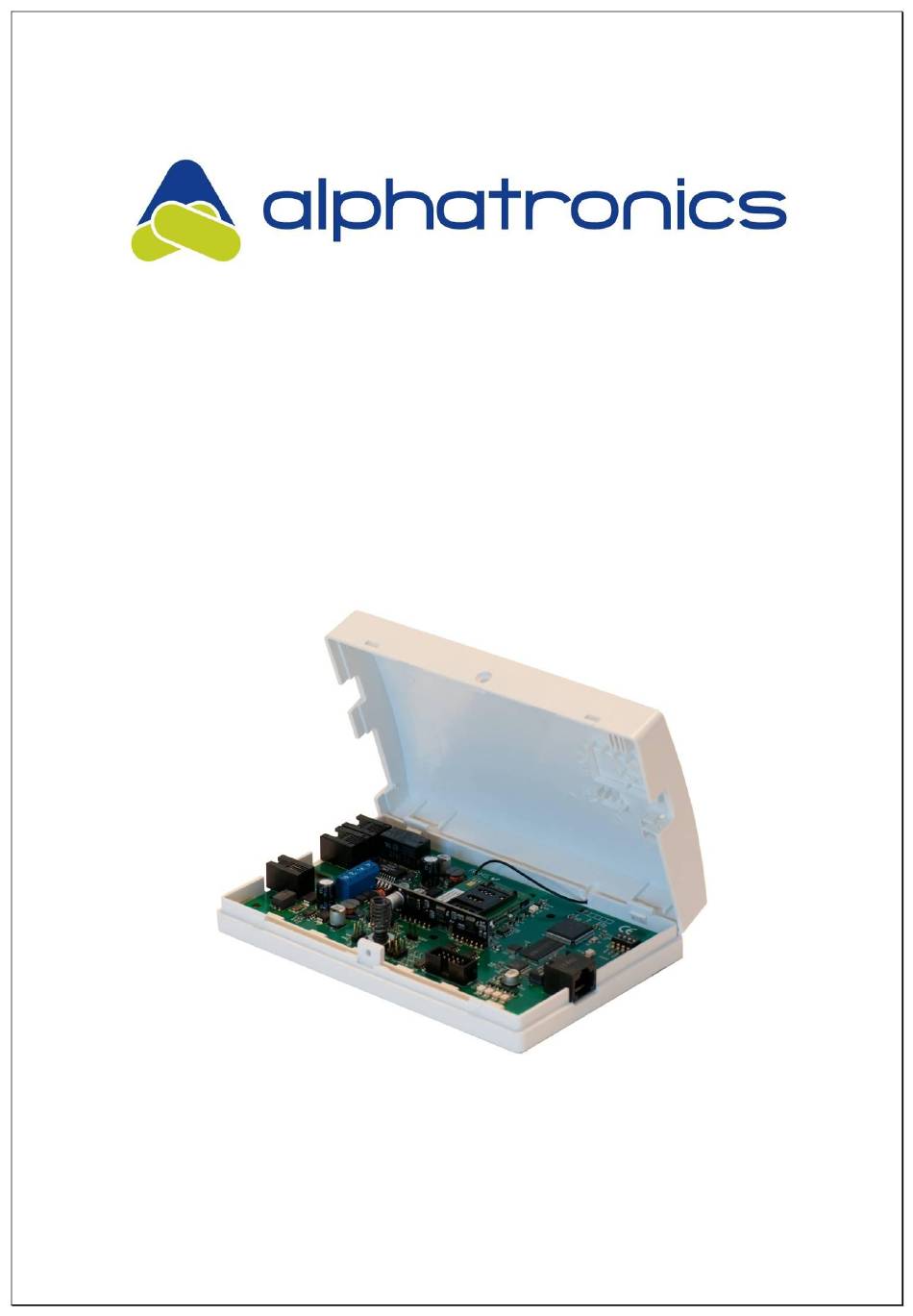

  • Page 1 PSTN-2-IP (+ GPRS) & ALPHAVISION IP (+ GPRS) installation manual...
  • Page 2 Pcb only : 158 x 90 x 18 mm (l x w x h) Power consumption standby: PSTN-2-IP / AlphaVision IP: 115mA. PSTN-2-IP GPRS / AlphaVision IP + GPRS: 135mA Power consumption operational: PSTN-2-IP / AlphaVision IP: 210mA. PSTN-2-IP GPRS / AlphaVision IP + GPRS: 375mA...

  • Page 3: Table Of Contents

    Figure 1: PSTN2IP GPRS transceiver ........................... 4 Figure 2: AlphaVision IP + GPRS transceiver........................5 Figure 3: PSTN-2-IP (GPRS) circuit board layout ......................... 9 Figure 4: AlphaVision IP (+ GPRS) circuit board layout ..................... 10 Figure 5: Schematics PSTN tamper loop........................... 11 Figure 6: Jumper for PSTN tamper loop ...........................

  • Page 4: Introduction

    Internet connection. The Alpha Vision IP (+ GPRS) transceiver hardware is identical to the PSTN-2-IP (GPRS) transceiver but is specifically designed for the Alpha Vision NG/96 control panels. The AlphaVision IP (+ GPRS) has an RS-485 bus connection and no PSTN interface and can therefore only be used in combination with Alphatronics control panels.

  • Page 5: General

    Back-up systems connection the PSTN interface is only available in the AlphaCom PSTN-2-IP & PSTN-2-IP GPRS. the serial connection is reserved for special applications and is not part of the standard IP (+ GPRS) transceiver specifications. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev.

  • Page 6: Settings According To Local Requirements

    The AlphaVision IP transceiver does not have a PSTN input but only contains a RS-485 bus connection. The Alpha Vision IP + GPRS transceiver is technically the same as the PSTN-2-IP GPRS but as loose prints plug supplied for Alphatronics plants and does not have a PSTN input but only on an RS-485 bus connector.

  • Page 7: Dutch Regulations Al1, Al2 And Al3

    The regulations for AL2 are: T4, T2, T3, D3, M3, S2, and I3 The regulations for AL3 are: primary transmission AL2 + back-up AL1 (only IP + GPRS !) Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 7/64...

  • Page 8: Quick Installation Guide

    ADSL connection. The consequence of this is that the security alarm system no longer will be able to send its messages in a reliable way to the monitoring station. By using for instance a AlphaCom PSTN-2-IP transceiver, the existing alarm installation can still be used and the alarm messages can be sent reliably to the monitoring station using an Internet connection.

  • Page 9: Hardware Installation

    If the IP (+ GPRS) transceiver is used in combination with a Alphatronics CP-508LCD or NG control panel equipped with a RS-485 connection the transceiver can be connected to the RS-485 bus. Use the 4 blue terminal blocks (+, A, B, O).

  • Page 10: Figure 4: Alphavision Ip (+ Gprs) Circuit Board Layout

    Figure 4: AlphaVision IP (+ GPRS) transceiver circuit board layout The AlphaCom PSTN-2-IP, AlphaCom PSTN-2-IP GPRS and AlphaVision IP + GPRS transceiver can be powered in two ways: with the RJ10 connection (net adapter art. code 200079) or directly on the + and 0V terminals of the RS-485 bus connection.

  • Page 11: Pstn Tamper Loop

    PSTN tamper loop The AlphaCom PSTN-2-IP (GPRS) transceiver is equipped with an option to monitor the cable connection between the analog dialer of a control panel and the PSTN input. To use this option jumper J19 must placed across pins 1 and 2. The outer 2 wires (1 and 4) of the telephone cable are used. Both wires 1 and 4 should be connected together on the side of the dialer in the control panel.
  • Page 12 IP connection with the monitoring station fails. If a back-up transmission path is required or requested it is advised to the PSTN-2-IP GPRS (art. code 003612) transceiver. The integrated GSM module will transmit data packages via GPRS (IP over GSM) to the monitoring station if the LAN connection fails.

  • Page 13: Programming Via The Web-Browser

    PROGRAMMING VIA THE WEB-BROWSER The IP (+ GPRS) transceiver can be used with a static (fixed) or a dynamic (DHCP) IP address. Alphatronics offers a free ‘IP Discovery’ tool to localize Alphatronics IP products on the internal network, display them and then open the standard web browser on your computer / laptop to be able to access the programming.

  • Page 14: Configuration Wizard

    (If an invalid username and password is entered the login screen will appear again) Configuration Wizard From firmware version 2.00 and above a configuration wizard has been introduced into all Alphatronics IP (+ GPRS) transceivers to be able to program them in 5 simple steps. In the following examples explained in this manual the PSTN 2 IP GPRS transceiver is programmed.
  • Page 15 Read the welcome screen carefully and make sure that all required information is present before you start programming. You can always return to the standard programming screens by clicking the 'Advanced Settings' button. If you have all required information present press Next : Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 15/64...
  • Page 16 SEC-IP a polling interval of 90 seconds is programmed regardless of the choice of Yes or GPRS backup If the IP transceiver is equipped with a GSM module, for example the PSTN-2-IP GPRS or AlphaVision IP + GPRS then a GPRS backup connection is possible. By selecting YES the screen below will appear to enable you to fill in the necessary Backup (GPRS) parameters.
  • Page 17 Enter the PIN code of the SIM card . If desired , the PIN code of the sim card can be viewed or modified by placing the sim card in a mobile phone. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014...
  • Page 18 In all other cases the IP transceiver can be triggered via the "PSTN" interface. In foreign ( non Alphatronics ) control panels the IP transceiver can be only be controlled using the ‘PSTN’ input. Only the AlphaCom PSTN -IP ( GPRS ) transceiver and AlphaCom XL (GPRS) have a 'PSTN' input , the AlphaVision IP and AlphaVision IP + GPRS transceivers only have a RS- 485 bus connector.
  • Page 19 Own power supply (and battery) The PSTN-2-IP (GPRS) and AlphaVision IP + GPRS are delivered in a synthetic casing excluding power supply and battery pack. The AlphaVision IP is delivered as a plug-on board. This option is intended for the IP (+ GPRS) transceiver in casing with power supply and battery.

  • Page 20: Advanced Settings

    The first screen that is displayed is the status screen. This is a summary of all statuses of the AlphaCom PSTN-2-IP GPRS. By using the menu buttons on the left hand side of the screen you can access the various programming menus.

  • Page 21: Ethernet Settings

    When pressing the button ‘General settings’ in the status menu, the following page will appear. The settings for the top button (Ethernet settings) will be displayed on the screen. The other buttons that will Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014...

  • Page 22: Gprs Settings

    Configuration method The PSTN-2-IP (GPRS) is by default configured as DHCP. This means, that the PSTN-2-IP (GPRS) obtains an IP address from the DHCP server in the router. By using the IP Discovery tool the obtained IP address can be found easily.

  • Page 23: Webserver Configuration

    When the name of the provider is displayed (for example NL KPN) this means that the GPRS connection is established and GPRS is used by the AlphaCom PSTN-2-IP GPRS. ‘Not in use’ means the GPRS connection was established during the last session but the connection is not in use by the AlphaCom PSTN-2-IP GPRS.
  • Page 24 IP (+ GPRS) transceiver from the outside world the modem/router must be programmed to allow an external IP address/port to be forwarded to an internal IP address/port. In most cases the setting ‘Access allowed from’ will be programmed to ‘Local network’. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 24/64...
  • Page 25 If the option ‘generate alarm message on lockout’ has been enabled, an alarm message will be sent to the central station in SIA-HS format as a ‘TA’ alarm. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 25/64...

  • Page 26: Transmitter Settings

    When pressing the button ‘transceiver settings’ in the main menu, the following screen may appear. The exact layout of the screen depends on the protocol (SIA-HS or SEC-IP) chosen. Programming screen for SIA-HS protocol Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 26/64...
  • Page 27 From firmware version 3.0 and above the SEC-IP protocol was replaced by the new VeBON SEC-IP 2.1 protocol. See further explanation regarding the SEC-IP protocol later in this guide. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 27/64...

  • Page 28: Sec-Ip Protocol

     a ‘Password’ - which can be entered into the web-browser programming field Password  and a ‘CheckSum’ - which can be entered into the web-browser programming field Checksum Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 28/64...

  • Page 29: Monitoring Settings / Fault Relay

    For various events a SIA code is already programmed, these SIA codes are the most commonly used codes in a monitoring station. The exact SIA code will mostly be determined together with the central station. For a full description of SIA codes refer to appendix G. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 29/64...
  • Page 30 This is only supported in the AlphaCom XL. The settings for tamper switch apply for tamper switch S1 mounted on the PCB board of the PSTN-2-IP (GPRS) transceiver. This tamper switch can be used if the PSTN-2-IP ( GPRS) transceiver is mounted outside the control panel enclosure.

  • Page 31: Pstn Interface Settings

    The PSTN input (CMK) simulates an analog telephone line. A stand-alone analog dialer or security alarm system with integrated analog dialer can be connected directly to this input. The PSTN-2-IP (GPRS) transceiver will receive the complete alarm message from the analog dialer.
  • Page 32 The setting Acknowledge to panel determines when the PSTN-2-IP (GPRS) transceiver will send an acknowledgement to the analog dialer that an alarm message was received. This can be immediately after receiving the message from the analog dialer.

  • Page 33: Serial Port Settings

    A maximum baud rate of 192K applies. For a higher baud rate use two AlphaCom XL modules. The way this application works is stated in a separate document and can be obtained from the Alphatronics helpdesk.
  • Page 34 AlphaVision bus settings must also be checked. The settings are: If the option Tamper alarm is set to YES, then the status of the tamper switch of the PSTN-2-IP (GPRS) and AlphaVision IP + GPRS transceiver is passed onto the AlphaVision control panel. The options power Supply fail and Low Battery should always be set to OFF.

  • Page 35: Factory Defaults

    When pressing the button Factory Defaults, the following screen will appear. Select the type of settings you want to put back to factory default and then press Load. When selecting all options the PSTN-2-IP GPRS transceiver will be set back to factory defaults with the exemption of the MAC address.

  • Page 36: Pstn2Ip Ml Programming With Cross-Over Cable

    PSTN-2-IP GPRS web browser can be reached through this IP address. When using DHCP, it is possible that during a restart the DHCP server will provide the PSTN-2-IP GPRS with a new IP address. In this case you can use the Device Discovery Tool to find the PSTN-2-IP GPRS.

  • Page 37: Operation Of The Pstn2Ip Ml

    After start-up, the green LED 4 (OP2) will start flashing. This indicates that the hardware on the board functions correctly. On a PSTN-2-IP (GPRS) also the red LED next to the PRIO relay on the PSTN interface circuit will illuminate. This LED indicates that the CMK input from the analog dialer of the control panel is connected to the TEL connection and the PSTN backup output is activated.

  • Page 38: Pstn Back-Up Function

    PSTN priority relay will be activated, redirecting the PSTN input (CMK) to the PSTN output (TEL). When the dialer in the control panel now sends an alarm to the PSTN-2-IP (GPRS), the alarm will be redirected to the TEL output. In the meantime, the PSTN-2-IP (GPRS) transceiver tries to re-establish contact with the monitoring station.
  • Page 39 LED OP9 of the control panel is connected to the outgoing line (TEL). If this LED is illuminated the IP (+ GPRS) transceiver cannot receive any messages. STATUS LEDs Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 39/64...

  • Page 40: Dipswitch Settings Of The Pstn2Ip Ml

    DIPSWITCH settings of the PSTN-2-IP (GPRS) The functionality of the PSTN-2-IP transceiver is partially determined by the settings of the dipswitches. The meaning of each dipswitch setting is as follows: Dipswitch number Setting Meaning Normal use When dipswitch is ON and the IP (+ GPRS) transceiver is powered up the factory defaults will be programmed.

  • Page 41: New Firmware Flashen In The Alphacom Pstn2Ip Ml (Bios Flash)

    Attention: performing a firmware upgrade remotely is totally at your own risk. Once the firmware upgrade has been performed we strongly advise to check the entire operation of the IP (+ GPRS) transceiver transceiver! Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 41/64...
  • Page 42 Connect the serial programming cable between the computer/laptop and the ‘boxed header’ J1 on the IP (+ GPRS) transceiver. The boxed header is on the edge of the board next to the transceiver LED’s. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014...

  • Page 43: Figure 8: Connections For Flash-Mode (Bios-Update)

    Place jumper J40 to Jumper J43 to upper RS-232 connector Watchdog LED stop Watchdog Jumper J44 to lower for flashing pins for ‘flash-mode’ Figure 8: Connections for flash-mode (bios-update) Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 43/64...
  • Page 44 If it is not the correct file, use the find button (square box) on the right hand side of the screen. Attention: The IP (+ GPRS) transceiver uses the same firmware as the ALPHACOM XL. Press the button Program Flash and the following screen will appear: Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 44/64...
  • Page 45 Once the new firmware has been fully flashed the message ‘Image successfully written to device’ will appear in the text box. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 45/64...

  • Page 46: Figure 9: Jumpers In The 'Run-Mode

    Power up the IP (+ GPRS) transceiver. The green watchdog LED must illuminate and stay on. This indicates that the hardware, processor and firmware are running. Figure 9: Jumpers in the ‘run-mode’ Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 46/64...

  • Page 47: Appendix A: Installing The Flash Software

    The following procedure only needs to be performed the first time the software is executed. The next time you open the software the settings have been saved and will automatically be correct. When starting the software the following screen will appear: Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 47/64...
  • Page 48 In the Select Device box choose Generic BOOT Device and press Next. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 48/64...
  • Page 49 If something goes wrong with the connection between the PC and the IP (+ GPRS) transceiver (for example the IP (+ GPRS) transceiver is not powered up or not connected) press Cancel. If the connection is successful the following screen will be displayed: Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 49/64...
  • Page 50 Press OK. Select 25.00 MHz as frequency, this is the correct value. Press Next. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 50/64...
  • Page 51 Press the Finish button. The flash tool now tries to connect to the microprocessor in the IP (+ GPRS) transceiver. If the connection is established, the screen below is displayed with the text Connection complete. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 51/64...
  • Page 52 Place a tick in the User / Data Area box. Use the find button (square box on the right hand side of the screen) to select the correct firmware file. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 52/64...
  • Page 53 Press the Program Flash button to start the flash procedure. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 53/64...
  • Page 54 Tip: the Disconnect procedure can also been done automatically by selecting the ‘AutoDisconnect’ option in the options menu. If the automatic procedure is selected the Disconnect button will not be displayed on the screen Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 54/64...

  • Page 55: Appendix B: Network Cable Wiring

    To connect the IP (+ GPRS) transceiver to a router, a standard straight through CAT 5 cable is used. A straight through CAT 5 cable is made up as follows: Figure 11: Straight through cable wiring Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 55/64...

  • Page 56: Appendix C: Reserved Port Numbers

    8080 HTTP backup 9100 LPT1 - USB1 (5500) 9101 LPT2 - USB1 (5500) 9102 COM 1 9900 LPT1 - USB1 (5500) 9901 COM 1 9902 LPT2 - USB1 (5500) Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 56/64...

  • Page 57: Appendix D: Explanatory Notes

    IP address. A MAC address is always shown in a hexadecimal form, e.g. 94:31:9b:D2:11:E6. The last 6 digits of the MAC address are printed on a sticker on the network chip. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 57/64...
  • Page 58 TCP is placed above the Internet Protocol and is used to reliably transmit data packages when a connection is established. Applications send streams of octets (8- bit bytes) to TCP for delivery through the network, Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014...
  • Page 59 (for example ‘display the home page’) then the request is processed. Most applications use the standard web port 80. It is therefore safer to use web port 81 or 82. Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014...

  • Page 60: Appendix E: Compatible Control Panels

    SIA Level 2 Visonic PowerMax Contact ID SIA Level 2 Visonic PowerMax Plus Contact ID Scancom DTMF 1400 SIA Level 2 Visonic PowerMax Pro Contact ID Scancom DTMF 1400 Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 60/64...

  • Page 61: Appendix F Sia-Codes

    Xmitter Restoral (Supervision alarm of a wireless detector) Xmitter Supervision (Low-battery message of a wireless detector) Xmitter Trouble (Restore of low-battery control panel) Battery Restoral (Low-battery control panel) Battery Trouble Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 61/64...

  • Page 62: Appendix G: Release Notes

    Kernel version of the ALPHACOM XL / IP (+ GPRS) transceiver Revision 1.1 06-06-2008 ALPHACOM XL / IP (+ GPRS) transceiver combined kernel Firmware (software) of the AlphaCom PSTN-2-IP (GPRS) / AV-IP (+ GPRS) transceiver Revision 1.1 19-03-2008 PSTN-2-IP transceiver pre-release Revision 1.2...
  • Page 63 Service manual AlphaCom PSTN-2-IP (GPRS) transceiver Rev. 2.2 10-07-2014 Page 63/64...
  • Page 64 WEEE-declaration This Alphatronics product is manufactured with the most modern technology and consists of high quality components. Most of the components used can be recycled. The symbol means that this product should be recycled separately and not put in the normal waste bin together with normal household waste.
