RCI 4 Series Installation

I N S T A L L A T I O N
1. Determine the vertical centerline of the door lock
face and the horizontal centerline of the latch.
IMPORTANT: When determining the horizontal
centerline observe the following:
FOR MORTISE LOCKS: Align the angled ramps of
the lip bracket with the deadlock trigger of the
mortise latch.
FOR CYLINDRICAL LOCKS: Align the center of the
latch with the center of the strike opening.
2. Transfer both the horizontal and vertical centerlines
to the doorframe.**

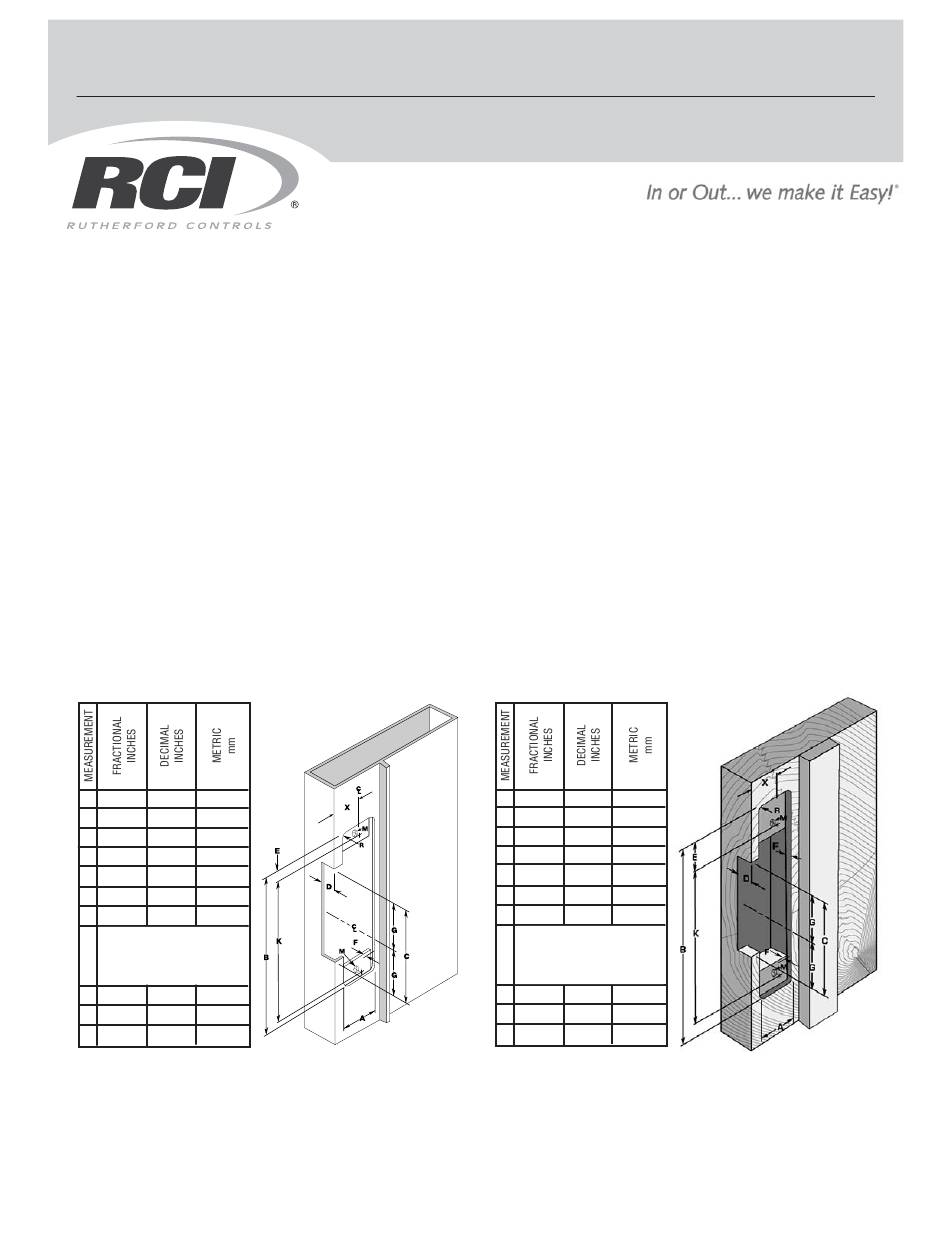

3. Prepare the doorframe for cutting as per the
appropriate drawing.
4. If required, install "no weld" mounting brackets as
per the instructions included with the mounting
brackets in the hardware pack.
7104, 7304
Aluminum & Wood Frames
4104, 4304
Aluminum Frames
A 1-1/4 1.250 31.75
B 4-7/8 4.875 123.83
C 3-3/8 3.375 85.73
D 7/8 .875 22.23
E 3/8 .375 9.53
F 1/8* .125* 3.18*
G 1-11/16 1.688 42.86
Vertical Vertical Vertical
Vertical Centerline
X C/L C/L C/L
of Door**
Door Door Door
R 5/32 .156 3.97
K 4-1/8 4.125 104.78
M 12-24 † — —
NOTE: Specifications subject to change without notice.
* Dimension F is measured from face of mounting tab to face of frame and equates to the thickness of the frame material.
**Dimension X on the drawing is determined by the vertical centerline of the door. If the latch incorporates a deadlocking pin additional steps will be
necessary to ensure proper operation of the deadlocking pin. Measure the thickness of the deadlocking pin and add this thickness to Dimension X to
relocate the vertical centerline an appropriate distance on the frame.
† For wood frame door installations, substitute #12 wood screws for dimension M.
IS47
USA: 2697 INTERNATIONAL PARKWAY, PKWY 5, VIRGINIA BEACH, VA 23452 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
Instructions
©2006 RUTHERFORD CONTROLS INT'L CORP. WWW.RUTHERFORDCONTROLS.COM
5. Attach the strike insert (coil unit or "motor") to the
lip bracket with the screws provided.
6. Attach the strike faceplate to the lip bracket with the
screws provided. (It may be desirable to leave these
screws slightly loose to facilitate insertion into the
doorframe.
7. Connect the incoming wiring from the power supply
to the terminal screws on the strike insert. RCI door
strikes are not polarity sensitive although be certain
to observe proper polarity if a suppression diode is
required for access control applications.
8. Install the door strike in the doorframe using the
screws provided.
7105, 7305
Aluminum & Wood Frames
4105, 4305
Aluminum & Wood Frames
A 1-1/8 1.125 28.58
B 5-7/8 5.875 149.23
C 3-3/8 3.375 85.73
D 7/8 .875 22.23
E 1/4 .250 6.35
F 1/8* .125* 3.18*
G 1-11/16 1.687 42.86
Vertical Vertical Vertical
Vertical Centerline
X C/L C/L C/L
of Door**
Door Door Door
R 5/32 .156 3.97
K 5-3/8 5.375 136.53
M 12-24 † — —
4 /7 Series
Electric Strikes
R07/06DA
P10/06DA
