RCI F1114 Installation Instructions

I N S T A L L A T I O N

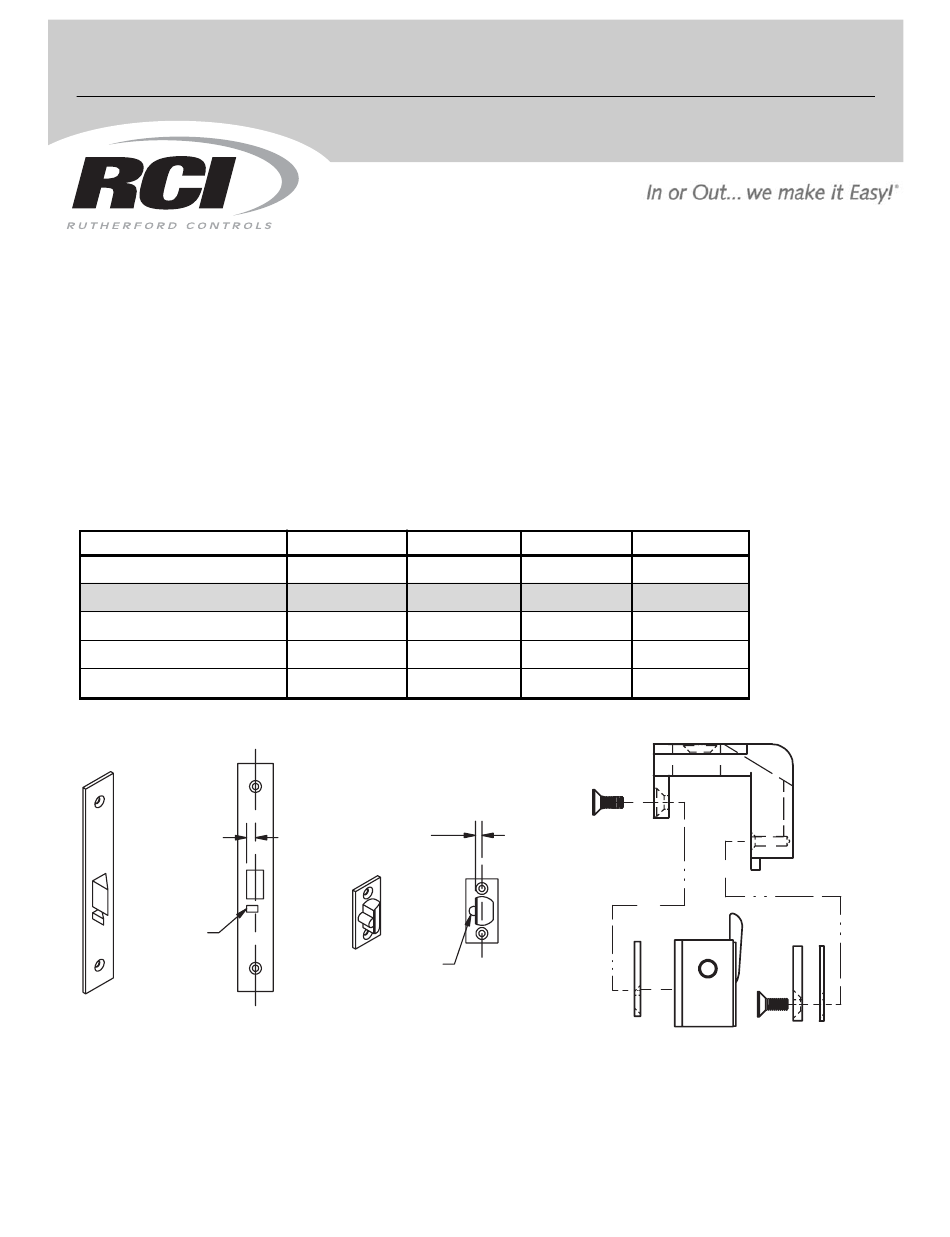

1. To determine if the Strike Shim positions need adjustment, measure dimension "R" (see Figure 1) from the center to the edge of
the latch. When necessary rearrange Strike Shims according to the chart below. The "shipped as default" positions are
illustrated in Figure 2.

Shim Placement Chart

Note: Shims consist of two thin and one thick. Install with the indicated hardware per the appropriate measurement R range.
Measurement "R"
5/16" (8.2mm) or Less
5/16" - 3/8", (8.2 - 9.7mm)
3/8" - 7/16", (9.7 - 10.7mm)
7/16" - 1/2", (10.7 - 12.2mm)
1/2" - 9/16" (12.2 - 13.7mm)
"R" distance
from center to
edge of latch
Deadlock
Trigger
Mortise Lock
When installing an electric strike on an inactive door of a set of double doors, it can be treated the same as a frame installation in most situations. For
more information contact the Technical Service Department at 1-800-265-6630 or 519-621-7651.
ISF1114
USA: 2697 INTERNATIONAL PARKWAY, PKWY 5, VIRGINIA BEACH, VA 23452 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
®

INSTRUCTIONS

"S1" Shims "S1" Screws
None M4 x 10mm
1 thin M4 x 10mm
1 thick M4 x 10mm
1 thick, 1 thin M4 x 14mm
1 thick, 2 thin M4 x 14mm
"R" distance from
center to edge of latch
Deadlock
Trigger
Cylindrical Lock
Figure #1
