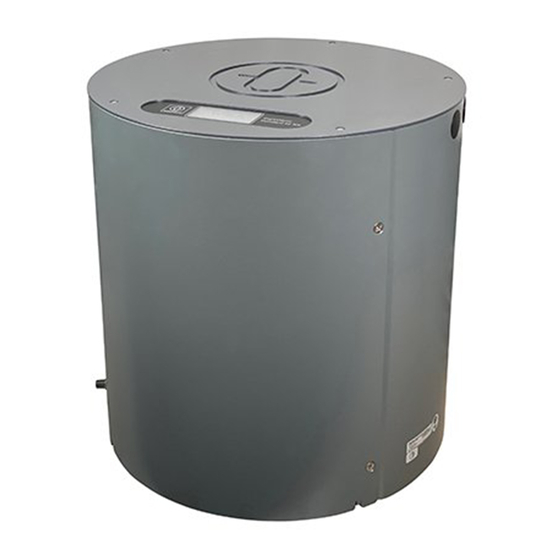

Gyro Compass Standard 22 NX
Operator Manual
Type: 110-244.NG001
Edition:001
10000000015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Standard 22 NX and is the answer not in the manual?

Questions and answers

Princess Victoria
July 18, 2025

Сроки обслуживания

0

Related Manuals for Raytheon Anschütz Standard 22 NX

Summary of Contents for Raytheon Anschütz Standard 22 NX

  • Page 1 Gyro Compass Standard 22 NX Operator Manual Type: 110-244.NG001 Edition:001 10000000015...
  • Page 2 Copyright Dieses Dokument sowie dessen Inhalt sind urheberrechtlich This document and its content are copyright protected. Distribution, geschützt. Die Weitergabe, Vervielfältigung und Speicherung sowie reproduction and storage as well as translation and exploitation of die Übersetzung wie auch Verwendung dieses Dokuments oder this document and its content, in whole or in parts and regardless of dessen Inhalts, als Ganzes oder in Teilen und egal in welcher Form, what form, are prohibited without prior express written permission.

  • Page 3: Table Of Contents

    Gyro Compass Standard 22 NX Table of Contents Table of Contents List of Figures..............................III List of Tables................................ V List of Abbreviations............................VII  Introduction................................ 1  Preliminary Remarks............................. 1  Safety.................................. 2  General Safety Regulations.......................... 2  General Safety Instructions........................... 2 1 Description............................... 4 1.1 Technical Data............................4 1.2 Functional Description..........................
  • Page 4 Gyro Compass Standard 22 NX Table of Contents 10000000015 Edition:001...

  • Page 5: List Of Figures

    Gyro Compass Standard 22 NX List of Figures List of Figures Fig. 1: Display Page: Heading (Heating)........................8 Fig. 2: Display Page: Heading (Settling)........................ 9 Fig. 3: Display Page: Heading (Available)......................10 Fig. 4: Display Page: Heading..........................10 Fig. 5: Display Page: Heading (OFF)........................12...
  • Page 6 Gyro Compass Standard 22 NX List of Figures 10000000015 Edition:001...

  • Page 7: List Of Tables

    Gyro Compass Standard 22 NX List of Tables List of Tables Tab. 1: Alert List, Alarm Symbols...........................6 Tab. 2: Alert List, Warning Symbols........................6 Tab. 3: Alert List, Caution Symbols........................6 Tab. 4: Alert Signaling............................6 Tab. 5: Maintenance Schedule..........................25 Edition:001...
  • Page 8 Gyro Compass Standard 22 NX List of Tables 10000000015 Edition:001...

  • Page 9: List Of Abbreviations

    Gyro Compass Standard 22 NX List of Abbreviations List of Abbreviations Bridge Alert Management CAM-HMI Central Alert Management Human Machine Interface ESD Protected Area Electrostatic Discharge ISPC Illustrated Spare Parts Catalog Rate of Turn Edition:001 10000000015...
  • Page 10 Gyro Compass Standard 22 NX List of Abbreviations 10000000015 VIII Edition:001...

  • Page 11: Introduction

    Gyro Compass Standard 22 NX  Introduction   Introduction   Preliminary Remarks The present manual is a description and reference book only. It is intended to answer questions and to solve problems in the quickest possible manner. Read and follow the instructions and notes in this manual before operating the equipment.

  • Page 12: Safety

    Gyro Compass Standard 22 NX  Safety   Safety   General Safety Regulations The following safety symbols are used in this manual: WARNING! Warning statements indicate a hazardous situation that, if not avoided, could result in minor, moderate or serious injury, or death Consequence •...
  • Page 13 Gyro Compass Standard 22 NX  Safety WARNING! Danger due to voltage-regulated devices Risk of death or serious injury that is caused by electrical shock • Switch off voltage supply if the wires have damaged insulation. • Only skilled electricians must perform work on the electric system.

  • Page 14: Description

    1.2  Functional Description The digital gyro compass Standard 22 NX provides speed error corrected true heading and rate of turn. A gyro compass heading is not affected by the earth magnetic field. The gyro compass generates an accurate directional reference signal to indicate the ship's heading relative to true north.
  • Page 15 Note The following list of alarms can only be displayed at the operating unit (130-626) or at a CAM. The standard 22 NX itself cannot display this alarm itself. The emergency alarm is not used in this device Edition:001...

  • Page 16: Tab. 1: Alert List, Alarm Symbols

    Gyro Compass Standard 22 NX 1 Description Tab. 1: Alert List, Alarm Symbols Symbol Description Active – unacknowledged alarm (flashing) Active – silenced alarm (flashing) Active – acknowledged alarm Rectified – unacknowledged alarm (flash- ing) Tab. 2: Alert List, Warning Symbols...

  • Page 17: Operation

    Gyro Compass Standard 22 NX 2 Operation 2  Operation 2.1  Preliminary Remarks Markup Elements The manual uses different markup elements for hardware and software. Markup Element Description This markup is used for the following elements: • Pushbuttons / Switches Bold •...

  • Page 18: Setting Into Operation

    Gyro Compass Standard 22 NX 2 Operation 2.3  Setting Into Operation 2.3.1  Pre-Operation Procedures Procedure 1. Switch on the log for speed input. 2. Switch on the GNSS receiver for position input. 2.3.2  Setting Into Operation Procedure Note During the heating and settling stage a correct heading is not available.

  • Page 19: Fig. 2: Display Page: Heading (Settling)

    Gyro Compass Standard 22 NX 2 Operation 2. Check the gyro compass after 30 minutes. ► The gyro compass has switched over into the settling stage. ► The display shows the display page Heading (Settling). Fig. 2: Display Page: Heading (Settling)

  • Page 20: Normal Operation

    Gyro Compass Standard 22 NX 2 Operation Fig. 3: Display Page: Heading (Available) 2.4  Normal Operation 2.4.1  Structure of Display Page: Heading The display page Heading shows the heading of the vessel. Fig. 4: Display Page: Heading Heading Stage Latitude Speed...
  • Page 21 Gyro Compass Standard 22 NX 2 Operation Area / Element Description Heading Shows the heading of the vessel Shows the stage of the gyro compass Stage Note: The different stages are descrobed in the following table. Shows the speed of the vessel Note: If the log is not available, no speed is displayed.

  • Page 22: Setting Out Of Operation

    Gyro Compass Standard 22 NX 2 Operation Fig. 5: Display Page: Heading (OFF) 2.5  Setting Out of Operation 2.5.1  Setting Out of Operation Procedures Procedure Note This procedure must be used if the Standart 22 NX is set out of operation for less than 3 months.

  • Page 23: Prepare Gyro Compass For Longer Time Setting Out Of Operation

    About this task Note The procedure for longer time setting out of operation can only be performed by Raytheon Anschütz Service and must be used if the Standard 22 NX is set out of operation for more than 3 months. 2.6 ...

  • Page 24: Speed Error Tables

    Gyro Compass Standard 22 NX 2 Operation 2.6.2  Speed Error Tables Latitude 0° to 20° North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° 0 to North South Lati- Speed in Kts Headings in ° sign for...
  • Page 25 Gyro Compass Standard 22 NX 2 Operation North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° Latitude 40° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...
  • Page 26 Gyro Compass Standard 22 NX 2 Operation Latitude 45° North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...
  • Page 27 Gyro Compass Standard 22 NX 2 Operation North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° Latitude 55° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...
  • Page 28 Gyro Compass Standard 22 NX 2 Operation Latitude 60° North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...
  • Page 29 Gyro Compass Standard 22 NX 2 Operation North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° 10.3 10.9 10.5 Latitude 70° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...
  • Page 30 Gyro Compass Standard 22 NX 2 Operation Latitude 75° North South Lati- Speed in Kts Headings in ° sign for tude correction value in ° North South Lati- Speed in Kts Headings in ° sign for tude correction value in °...

  • Page 31: Faultfinding

    Gyro Compass Standard 22 NX 3 Faultfinding 3  Faultfinding 3.1  Faultfinding Table Failure Error Code Possible Cause Remedy Errors Display shows Call the Raytheon Gyro compass com- the error Inductive EL01 Anschütz service for ponent is defective. Transmission faulty. repair. Display shows the...
  • Page 32 Gyro Compass Standard 22 NX 3 Faultfinding Failure Error Code Possible Cause Remedy Call the Raytheon Gyro compass com- Anschütz service for ponent is defective. repair. Cable connection in Call the Raytheon the gyro compass is Anschütz service for Display shows the disturbed.
  • Page 33 Gyro Compass Standard 22 NX 3 Faultfinding Failure Error Code Possible Cause Remedy Cable connection in Call the Raytheon the gyro compass is Anschütz service for disturbed. repair. Display shows the error Pump Current EL18 faulty. Call the Raytheon Gyro compass com- Anschütz service for...
  • Page 34 Gyro Compass Standard 22 NX 3 Faultfinding Failure Error Code Possible Cause Remedy Call the Raytheon Gyro compass com- Anschütz service for ponent is defective. repair. Call the Raytheon Support liquid level Anschütz service for is too low. Display shows the repair.

  • Page 35: Care And Maintenance

    Gyro Compass Standard 22 NX 4 Care and Maintenance 4  Care and Maintenance 4.1  Safety Instructions for Care and Maintenance WARNING! Danger due to maintenance and service by unskilled personnel Risk of serious injury and material damage • Keep all unskilled personnel away from the working area.

  • Page 36: Care Procedures

    Gyro Compass Standard 22 NX 4 Care and Maintenance Maintenance Frequen- Maintenance Task Reference Level Raytheon An- see Ser- 18 - 24 Replace pump rotor schütz Ser- vice Manu- month vice Raytheon An- see Ser- 18 - 24 Check Outer Sphere schütz Ser-...

  • Page 37: Preventive Maintenance Procedures

    Gyro Compass Standard 22 NX 4 Care and Maintenance CAUTION! Hazard due to wrong cleaning agents Risk of material or environmental damage • Use only suitable cleaning agents with no dangerous or acidic ingredients. CAUTION! Hazard due to clogging Risk of material damage •...
  • Page 38 Gyro Compass Standard 22 NX 4 Care and Maintenance 10000000015 Edition:001...
