General Information

Control Panel

I
H
CONTROL
POWER
MAIN CIRCUIT
BREAKER
F
Controller with Power Zone (If Equipped)

Control Panel Features and Functions

(A) DC circuit breaker
Resets the DC electrical circuit that powers the control
panel and engine components.
(B) AC circuit breaker
Resets the AC electrical circuit that powers the control
panel.
(C) Mast light toggle switch/circuit breakers (4)
Power switches with internal breakers dedicated to
individual lights
(D) Mast switch (if equipped)
Raises and lowers the mast on units equipped with an
electric winch.
(E) 120V/20A GFCI outlet
Customer convenience outlet for use in connecting
auxiliary equipment such as fans, pumps, drills. Includes
a Ground Fault Circuit Interrupter (GFCI) test and reset
button.
18
B
K
A
DC CIRCUIT MAST LIGHT CIRCUIT BREAKERS AC CIRCUIT
BREAKER BREAKERS

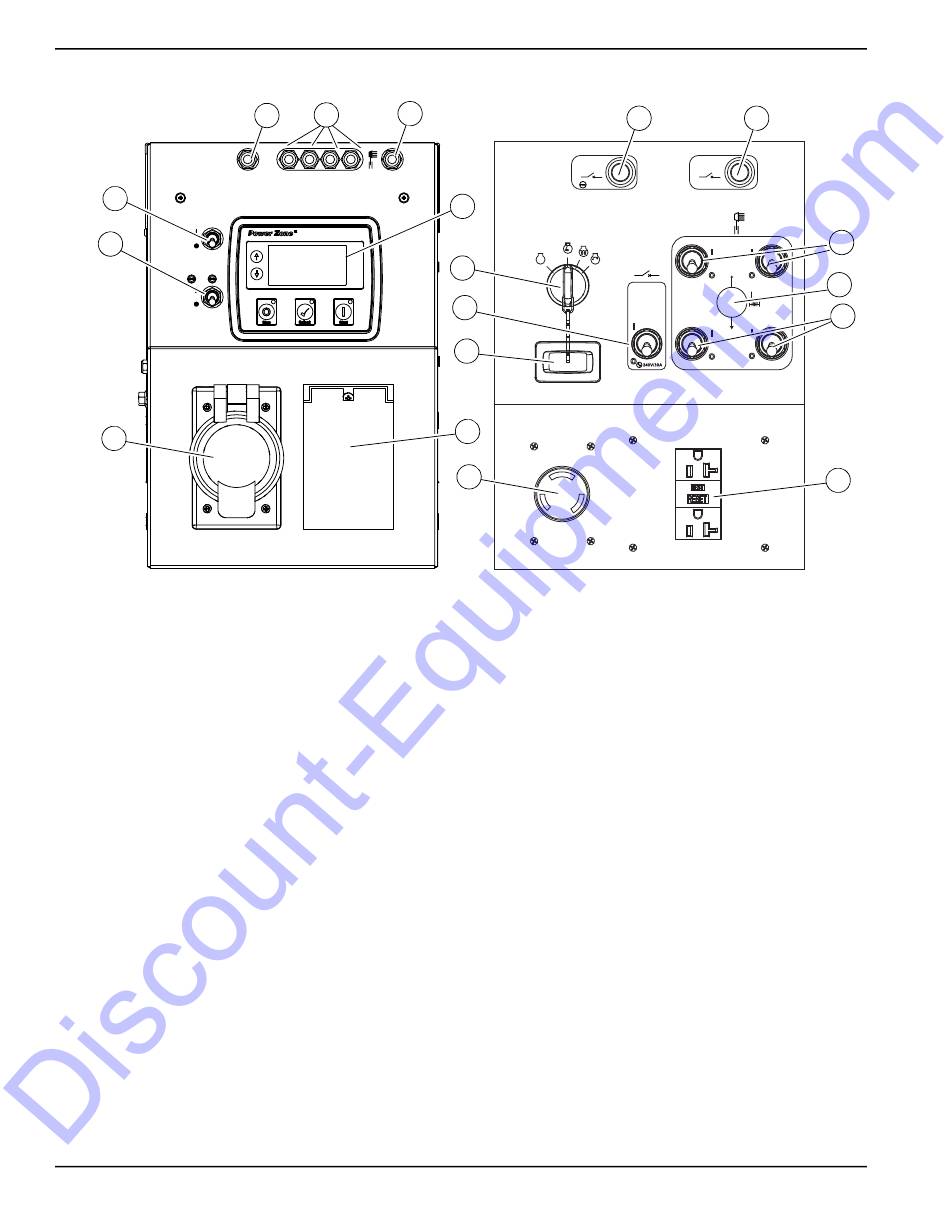

Figure 2-4. Control Panel
A
DC CIRCUIT
BREAKER
12V
J
15 SEC.
MAX.
I STOP
BREAKER
H
I
G
O
E
F
Controller without Power Zone
(F) 240VAC/30A twist-lock outlet
Customer convenience outlet for use in connecting
auxiliary equipment such as fans, pumps, drills.
(G) Engine hour meter
Displays number of hours the engine has run.
(H) Main circuit breaker
240V/30A breaker which disconnects power from the
lights and control panel.
(I) Control power switch
Turns the engine ON and OFF.
(J) Power Zone controller
Monitors the unit and indicates operational status and
fault conditions.
(K) Mast light circuit breakers (4)
Power switches with internal breakers dedicated to
individual lights
Owner's Manual for MLT6SC Light Tower
