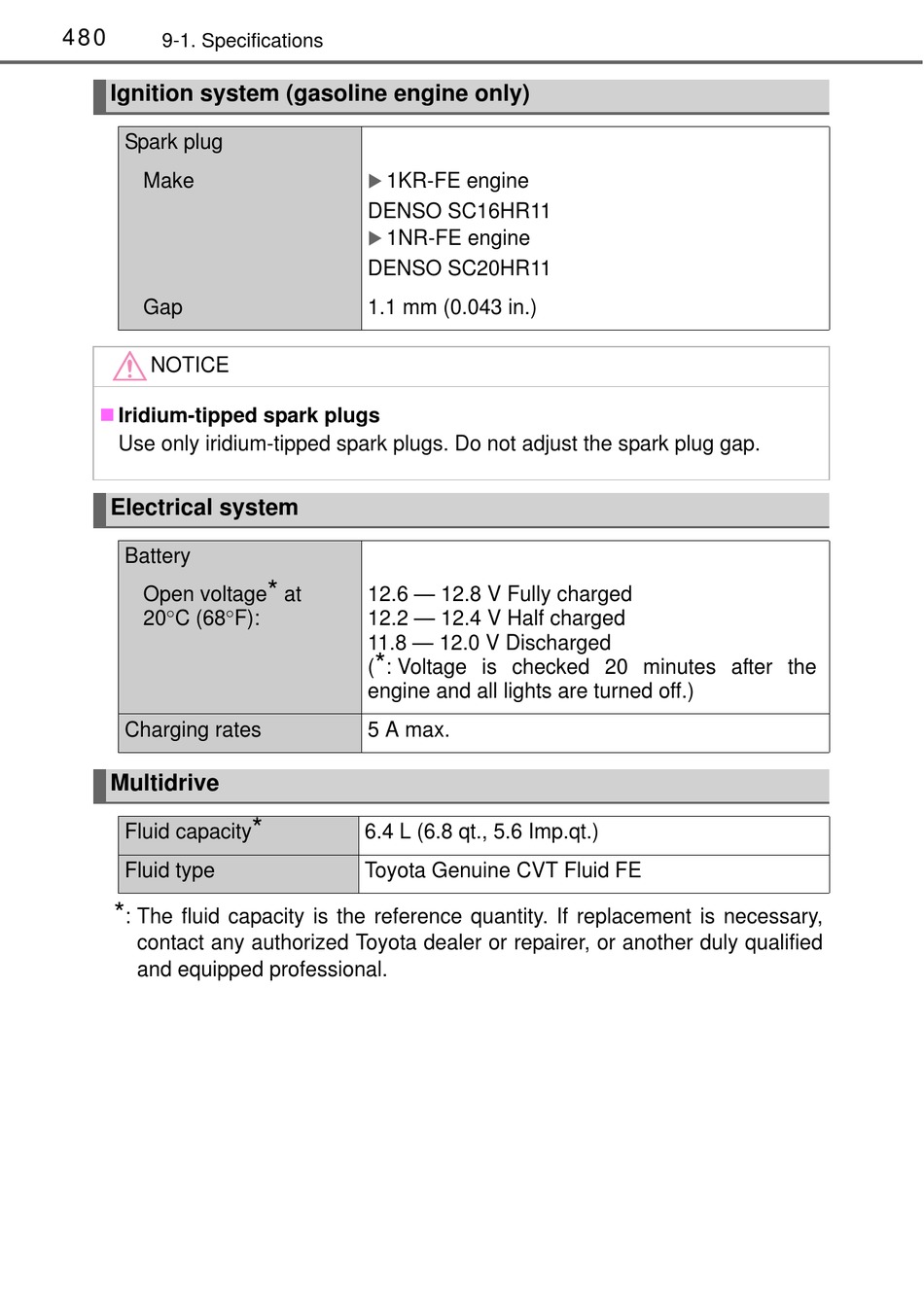

Toyota Yaris Owner's Manual page 480

480
9-1. Specifications
Ignition system (gasoline engine only)
Spark plug
Make
Gap
NOTICE

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage
20C (68F):
Charging rates
Multidrive
Fluid capacity
Fluid type
*
: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.

1KR-FE engine
DENSO SC16HR11

1NR-FE engine
DENSO SC20HR11
1.1 mm (0.043 in.)
*
at 12.6 — 12.8 V Fully charged
12.2 — 12.4 V Half charged
11.8 — 12.0 V Discharged
*
( : Voltage is checked 20 minutes after the
engine and all lights are turned off.)
5 A max.
*
6.4 L (6.8 qt., 5.6 Imp.qt.)
Toyota Genuine CVT Fluid FE
