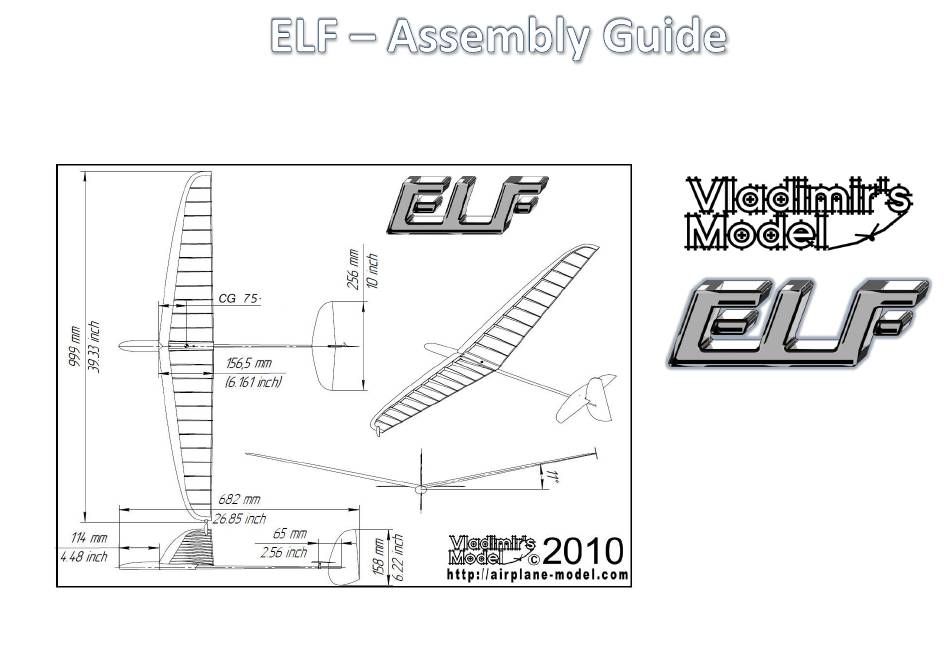

- Page 1 Elf Manual 2f 20/08/2014...
- Page 2 ELF - a low weight mosquito class 1m span discus launched glider. The ELF allows the pilot to soar in small places as never before. Ready to fly weight of ELF’s high tech construction makes the model stronger and lighter.
- Page 3 Jeti Duplex R4 & R5, Multiplex Mlink RX-6 Light & RX-5 Light*, Schulze Alpha-535 *case removed Medium & thick cyanoacrylate glue (CA) -not foam safe Masking tape Craft knife 150 sandpaper Pliers Ruler Desire ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 4 Quickly slide in the throwing blade and fill CA. Optionally add a little weight to any gaps with more thick CA. balance. Or fit the other blade so everyone can enjoy flying your Elf! ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 5 Fit the rudder horn in place and glue. Then Cut a groove for the horn. If using Nuke 3 glue the rudder into the slot in the boom. servos drill horn nearer hinge to inc throw. ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 6 Disregard the photo, use a wire-in-tube pushrod fitting for the rudder. Fit long guides inside the pod and shim them with scrap balsa or foam. Check the stab can move to max angle without fouling. ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 7 Now thread the wires through all the holes Do this with all connectors. in the pylon. Put the plugs back. Ensure Note the polarity! the polarity is as on fig 3! Check servos before gluing in place. ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 8 Add more CA. Remove servo arms and thread onto Z bends. Tape the battery in place. If using a SmartLipo cut a hole in the Make holes for the receiver antennas sheath for the on/off switch, otherwise remove the sheath to connect the battery ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
- Page 9 Do not cantilever the wingtip to hold it against the wind – this will crack the tip. Program the transmitter Fly safely, do not launch near others. HyperFlight UK Dealer: www.hyperflight.co.uk e-mail: sales@hyperflight.co.uk ELF – Assembly Guide © Vladimir’s Models & HyperFlight...
