Vladimir's Models Maxa Pro EL Series Recommendations For Assembly

Fuselage of Маха Pro El 3.5 m and 4m
Recommendations for assembly

Tools:

№150-80;
- sandpaper
- epoxy with microcellulose;
- adhesive tape;
1) For install the servo platform in the fuselage sanded the place inserts in the fuselage and the side surface of
the platform by sandpaper № 150-80
2) Try how the servo platform is fitted, by slipping
it through the canopy hole (platform front side is wider).
Center of wing electrical connectors must coincide with
the center of the servo platform. Connectors will be
located between the servos. (approximate size is on
figure). The platform should be placed horizontally
along the axis of the tail boom. (front part of the
platform is above the rear one).
3) Glue platform by superglue carefully. Please fix
it by the liquid superglue in two points first, then
recheck and spill platform by medium superglue.
4) Prepare the servo-horns with 12mm arm
5) Screw the bearing nut to the back side of the servo horn by screw M2. Screws head almost will hide in the
servo horn hole.

Fuselage assembly of Maxa Pro EL

№ 320-240
Рiс.2 – Preparing the fuselage to install servo platform
- paper tape (used for protection against an
excess of epoxy resin)
- superglue, CA (medium viscosity and low
viscosity);

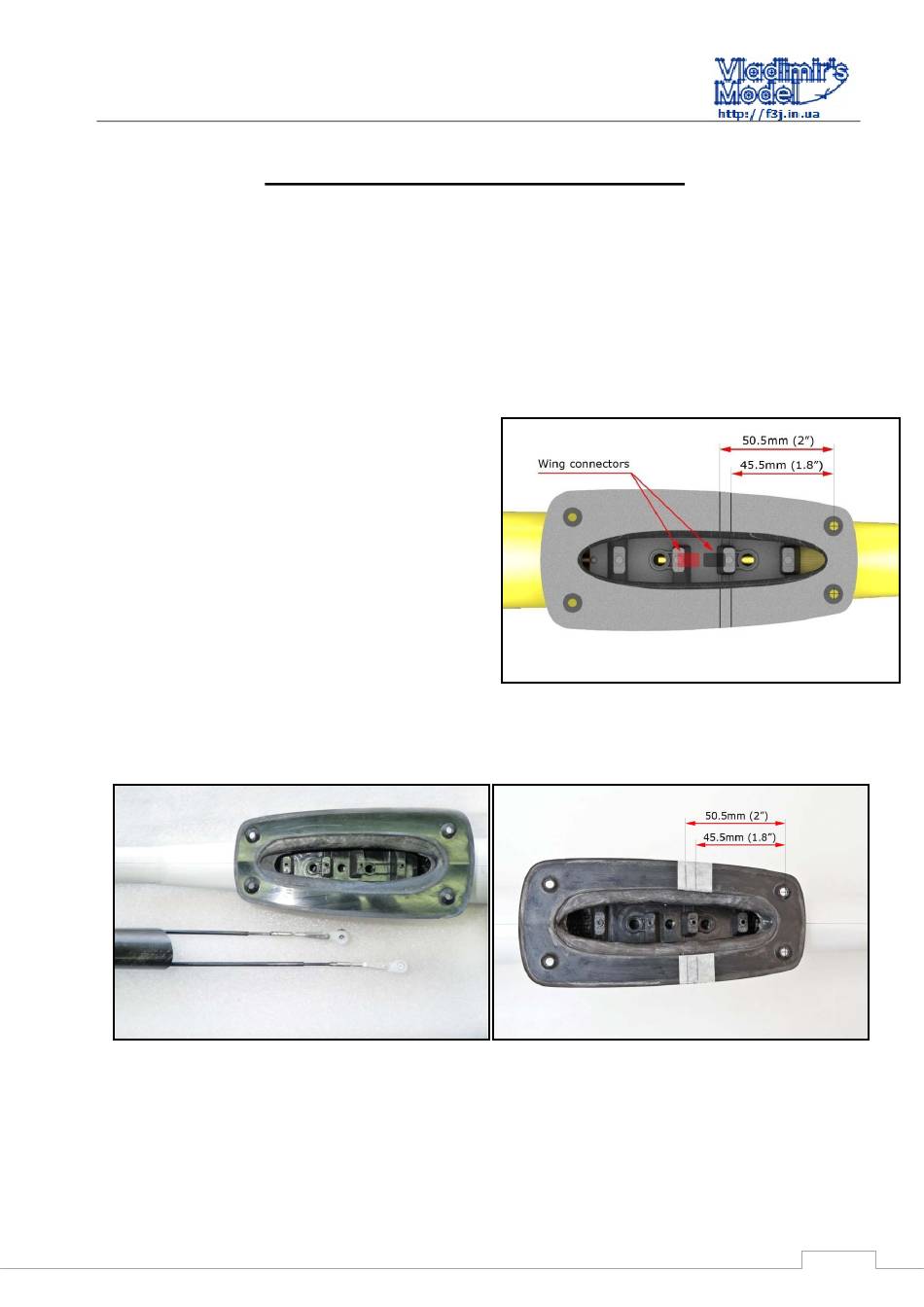

Рiс.1 – Proper installation servo platform in
fuselage
1
