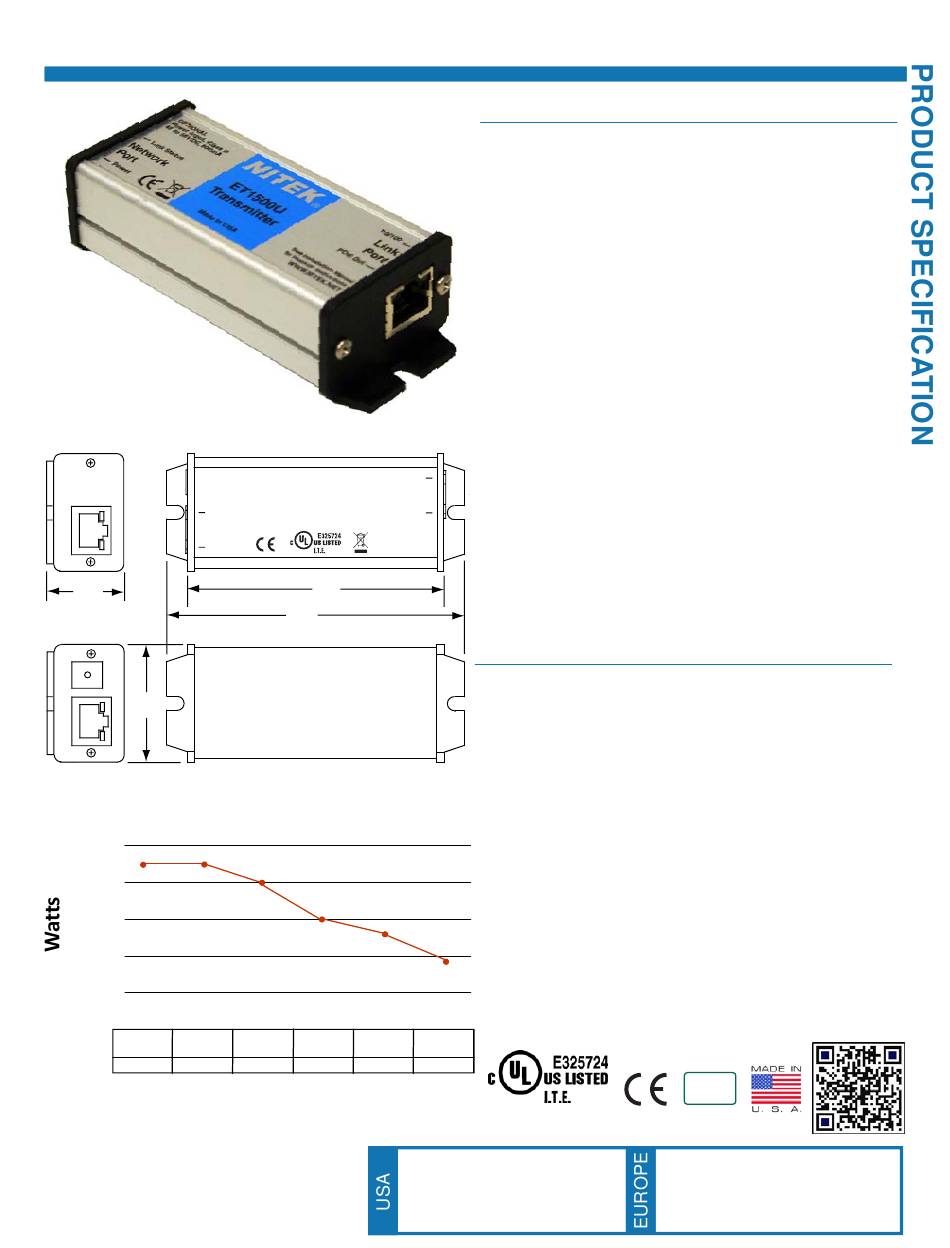

Nitek Etherstretch ET1500U Quick Start Manual

ET1500U
Link Port View
OPTIONAL
Power Input, Class 2
48 to 56VDC, 800mA
Link Status
Network
Port
Power
1.2"
(30)
IP Port View
1.7"
(43)
Available PoE Wattage At PoE Device
30.0
27.4 27.4
25.0
20.0
15.0
10.0
5.0
100 Meters
200 Meters
328 Feet 656 Feet
27.4 Watts
27.4 Watts
* Results charted were calculated using four pair 24awg Cat5e cabling.
NITEK
Top View
NITEK
10/100
®
Link to
Made in USA
ET1500U
Receiver
Transmitter
PoE OUT
See Installation Manual
for Hookup Instructions
WWW.NITEK.NET
3.7"
(94)
4.3"
(109)
Bottom View
25.0
20.0
18.0
300 Meters 400 Meters 500 Meters
984 Feet 1,312 Feet 1,640 Feet
20.0 Watts
25.0 Watts 18.0 Watts
5410 Newport Drive, # 24
Rolling Meadows, IL 60008
Phone: (847) 259-8900
Fax: (847) 259-1300
E-mail: info@nitek.net
®
WWW.NITEK.NET
Ethernet & PoE Extender
Description
The ET1500U is another component of the NITEK cutting edge
EtherStretch line.
Etherstretch solution allows for the utilization of existing cable
infrastructure (coax or UTP) to transmit data from IP cameras
and other network devices along with power (PoE) to operate
these networked devices beyond normal limitations. The
system can extend Ethernet and PoE up to 600m or 1960ft of
category cable making the ET1500U ideal for retrofitting and
non-traditional installations.
The ET1500U is a transmitter that works in conjunction with a
multi-port receiver unit. The ET1500U requires very little
installation time and absolutely no set up or configuration. The
Etherstretch system can quickly turn any ordinary four pair
UTP cable into a high speed network communications and
PoE pathway.
The ET1500U is transparent to the network with no IP or MAC
addressing required. Simply connect your network devices to
the LAN port of the transmitter along with existing cabling and
to a multi-port receiver unit for the system to begin
communicating. LED indicators show the status of network
communication and PoE power.
The units are constructed of industrial grade RoHS compliant
plated aluminum which is finished with a corrosion resistant
finish making it very durable.
Features
●
Environmentally hardened – meets NEMA TS-1/TS-2
●
Supports 10/100 and PoE over category rated cables up
to distances of 600 meters (1968 feet)
●
Fully transparent to the network
●
Supports any network device, including Mega-pixel tech-
nology IP cameras
●
Easy to install, no set up required
●
Lifetime Warranty
●
LED indicators for network signals, link status and power
●
Optional power supply can insert PoE power for non-PoE
switches
●
Surge protected inputs
14.1
●
Ground loop isolation
●
Made in the U.S.A.
600 Meters
1,968 Feet
14.1 Watts
IEC/UL 60950-1
This Environmentally
Patent Pending
RoHS
COMPLIANT
2002/95/EC
