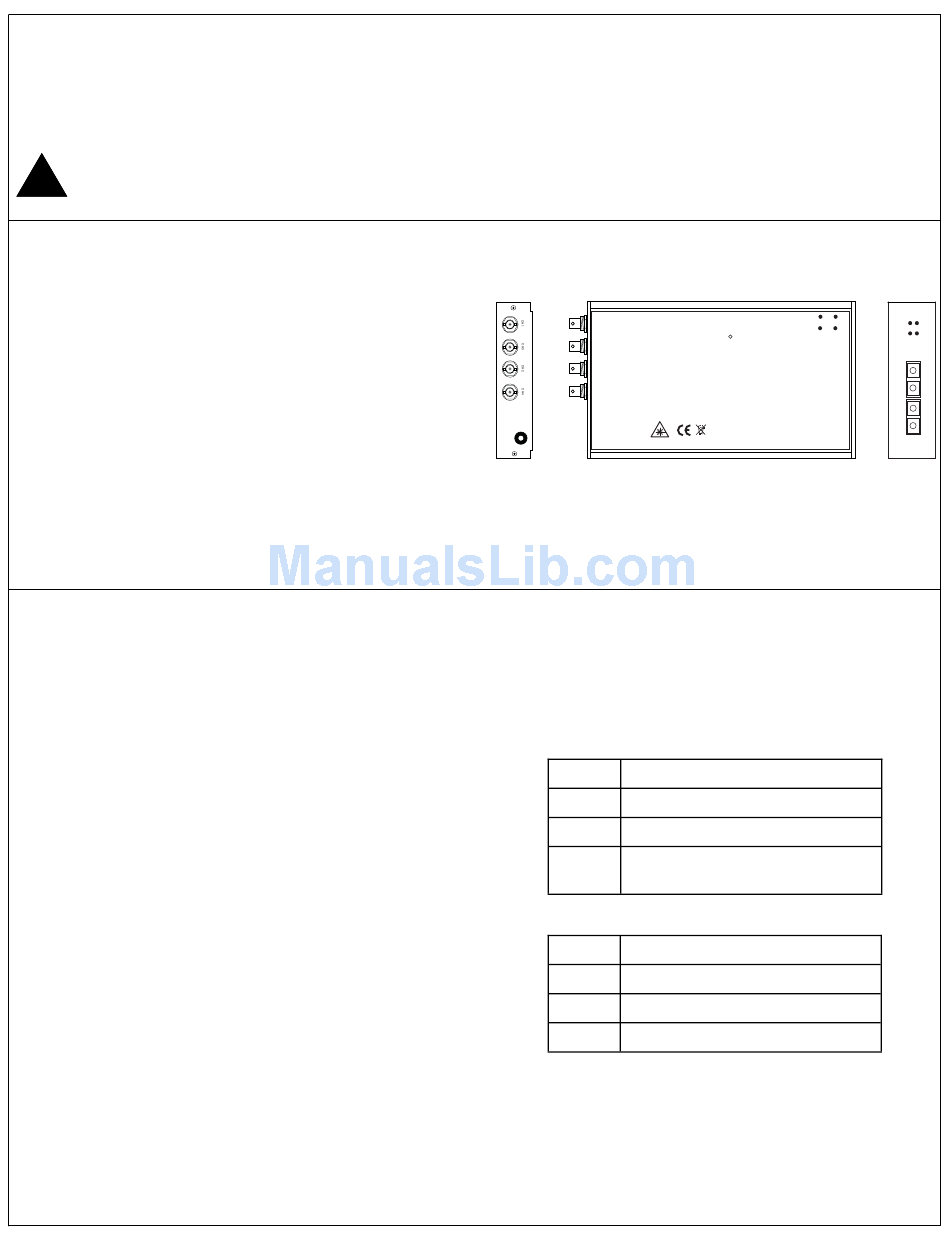

Nitek FTS344000S00 Installation Manual

Installation Manual
FTS344000S00 Quad Transmitter
4 Camera Stand Alone Transmitter
Note: This installation should be made by a qualified
service person and conform with local codes.
Reduce risk of fire or electrical shock do
!
not expose this product to rain or moisture.
Specifications
Video Connection
Connector
Input Impedance
Input Level
Frequency Response
Optical Connection
Connector
Path Loss
Wavelength
Power Connection
Supply
Installation Instructions
- The fiber receiver is designed to be mounted using the included bracket.
- Always allow for bend radius of optical and electrical cables when installed.
- There are no adjustments required when using this product.
Service Information
There are no user serviceable parts inside the unit. In the event that service is required to this unit please
contact NITEK Technical Support at 800-528-4343.
75 ohm BNC Socket
75 ohm terminated
1 volt p-p nominal
10Hz to 5.75MHz
SC Style
20 dB
1310 / 1550nm
12 to 24VDC @ 300mA
NITEK
5410 Newport Drive, Suite 24
Rolling Meadows, IL 60008
PHONE (847) 259-8900
FAX (847) 259-1300
WWW.NITEK.NET
VIDEO CH1
NITEK
R
VIDEO CH3 Fiber Optic Video Transmission Systems
WWW.NITEK.NET
800-528-4343
VIDEO CH2
VIDEO CH4
POWER
-
12-18 VDC,
+ CLASS 1
300mA, Class 2
FTS344000S00
Power/Video/Opto LED
Color Description
Green System Normal
Yellow (RX) Link working, No video at TX
Red (TX) Power on, No video into TX
(RX) Power on, No opto into RX
Data LED
Color Description
Green Data is Low / Logic 0
Red Data is High / Logic 1 (RS422/485)
Off Data is Tri-state / (High - RS232)
®
680600113 Rev 02102009
CH1 CH2
CH3 CH4
POWER
VIDEO / OPTO
CH1
CH2
OPTO IN / OUT
CH3
CH4
