Summary of Contents for SKF TKSU 10

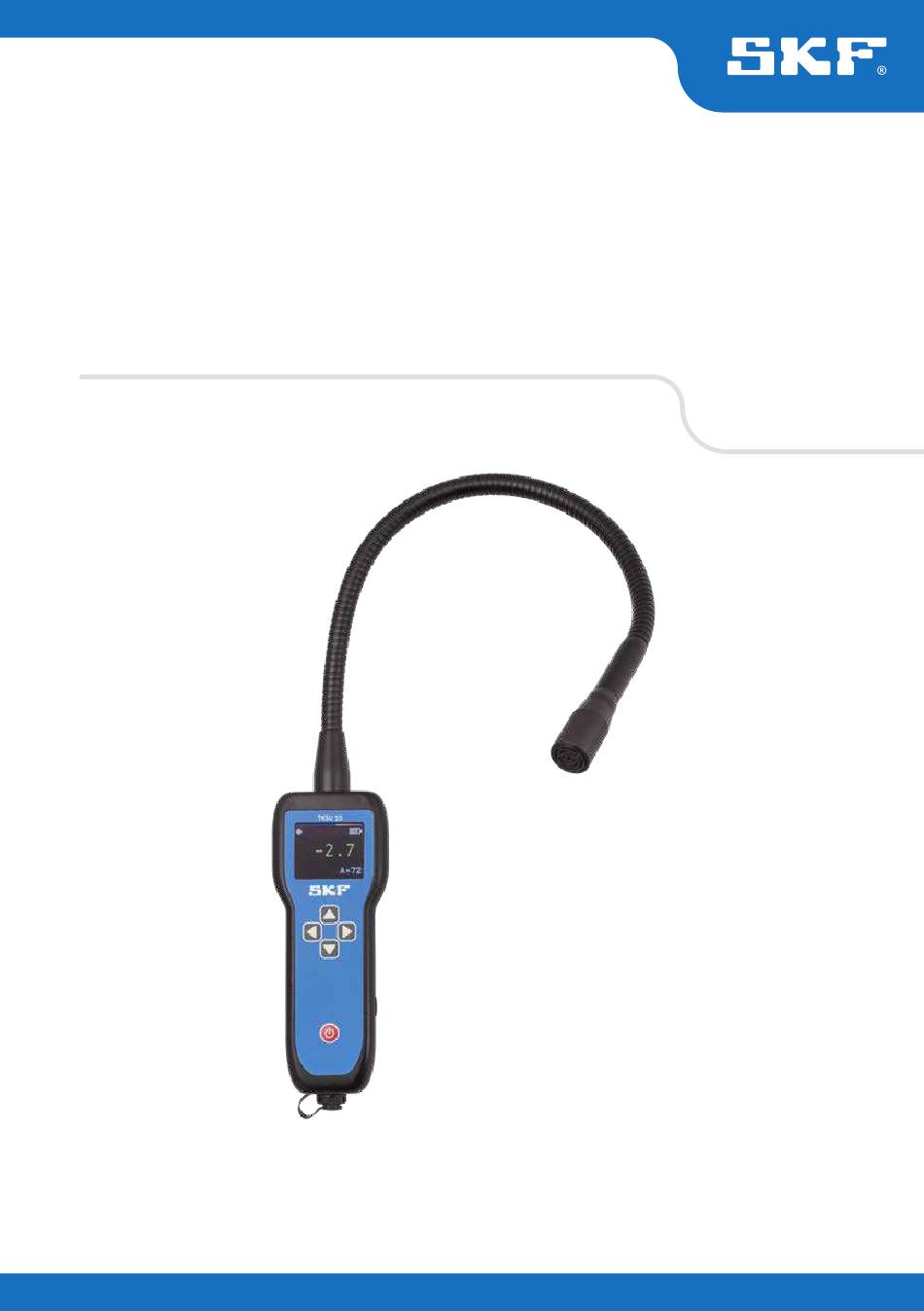

- Page 1 SKF TKSU 10 Instructions for use...
- Page 3 Table of contents Safety recommendations ......................... 2 EC Declaration of conformity ......................2 1. Introduction ..........................3 Intended use ..............................3 Principle of operation ...........................3 2. Operating ..........................4 3. Technical data ........................... 5 4. Spare parts ..........................5 Original instructions...
- Page 4 EC Declaration of conformity We, SKF Maintenance Products, Kelvinbaan 16, 3439 MT Nieuwegein, The Netherlands herewith declare that the products described in these instructions for use, are in accordance with the Safety recommendations conditions of the following directive: EUROPEAN ROHS DIRECTIVE 2011/65/EU •...
- Page 5 1.2 Principle of operation The principle of operation of the TKSU 10 can be compared to a special microphone, sensitive only to high frequency ultrasounds. A sensitive piezoelectric crystal is used as a sensor element. Minute sound waves excite the crystal, creating an electrical pulse that is ampliied and then “heterodyned”...
- Page 6 2. Operating • Open the battery compartment using a Philips screwdriver. Correctly insert (+/-) two AA alkaline or rechargeable batteries. The remaining battery level is displayed here († 1). • The device can be powered through its USB port with an external battery pack (†...
- Page 7 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in) Total weight (incl. case) 3 kg (6.6 lbs) 4. Spare parts Designation Description TKSU 10-HEADS Neckband headset for TKSU 10 TKSU 10-PROBE Spare airborne sensor for TKSU 10 TKSU 10-CC Toolcase with inlay for TKSU 10...
- Page 8 | mapro.skf.com | skf.com/mount ® SKF is a registered trademark of the SKF Group. © SKF Group 2018 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.
