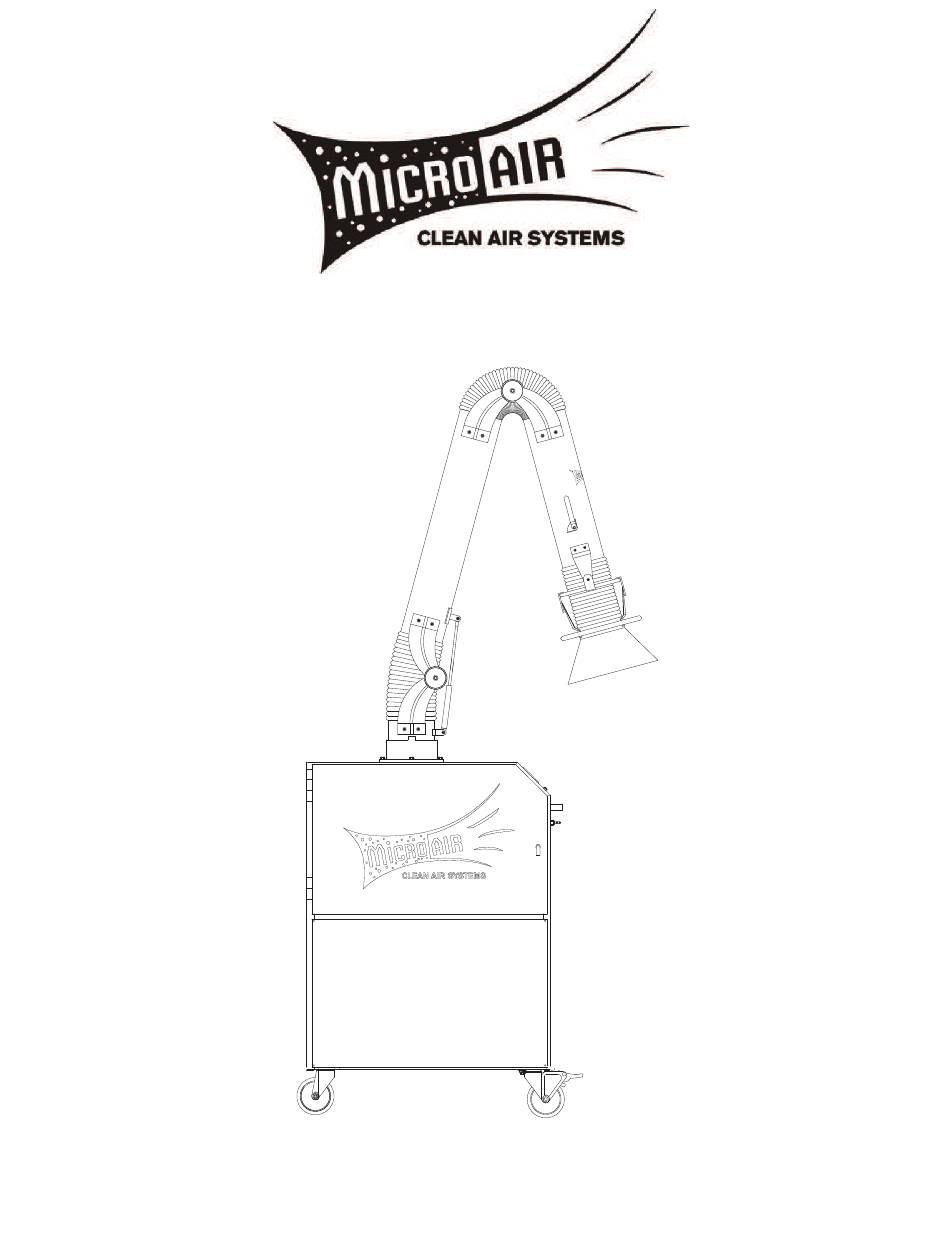

MODEL MC1500
Installation and Operation Manual
Important:
This manual contains specifi c cautionary statements relative to worker safety. Read this manual thoroughly and follow
as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or
systems should be instructed how to operate in a safe manner.
Advertisement
Related Manuals for MICRO-AIR MC1500
Summary of Contents for MICRO-AIR MC1500
- Page 1 MODEL MC1500 Installation and Operation Manual Important: This manual contains specifi c cautionary statements relative to worker safety. Read this manual thoroughly and follow as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or...
- Page 2 2. Remove the MC1500 from the shipping skid and set on The MC1500 has locking wheels at the front handle a level surface.
-
Page 3: Cartridge Cleaning
MINI-HELIC GAUGE OPERATION: 1. As the cartridge fi lters collect airborne pollutants 1. Turn the MC1500 off and open the fi lter access door. they will eventually begin to become loaded with 2. Remove the cartridge fi lters retained by wing nuts. - Page 4 INSTALLATION: 1. Remove the four (4) screws used to attach the lower panel and remove lower panel from the MC1500. 2. Locate fi lter tracks shown in Fig. 2. Filter track is to be located fl ush to front edge of cabinet bottom and centered above the exhaust opening.
- Page 5 INSTALLATION: 1. Remove the four (4) screws used to attach the lower panel and remove the lower panel from the MC1500 unit. 2. Locate the silencer box assembly (Fig. 3). Silencer assembly is to be located fl ush to front edge of cabinet bottom and centered above the exhaust opening.
- Page 6 MICRO AIR MC1500 ® CLEAN AIR SYSTEMS PAGE LEFT INTENTIONALY BLANK...
- Page 7 MC1500 MICRO AIR ® CLEAN AIR SYSTEMS OPTIONAL BIG WHEEL INSTALLATION: KIT CONTENTS: 1 Ea. Big Wheel Assembly 8 Ea. 5/16-18 x 1” Hex Bolt INSTALLATION: 1. Position the unit on its’ side with the bottom exposed. 2. Remove the four (4) bolts, fl at washers and lock washers retaining each fi xed wheel. Retain the hardware for use in step four.
- Page 8 MICRO AIR MC1500 ® CLEAN AIR SYSTEMS MC1500 WIRING DIAGRAMS Fig. 6...
- Page 9 MC1500 MICRO AIR ® CLEAN AIR SYSTEMS MC1500 WIRING DIAGRAMS Fig. 7...
- Page 10 8” Gas Shock P2482 Hood Disc Pad P2483 1/4-20 x 1” Hex Head Bolt P2485 1/4-20 Nylock Hex Nut P2312 Micro Air Decal 37104-01 Damper Handle Stop Plate P2232 Hose Clamp P2206 5/16” Flat Washer P2616 6” Dia. Flex Hose P2484 5/16”...
- Page 11 MC1500 MICRO AIR ® CLEAN AIR SYSTEMS MC1500 PARTS LIST Fig. 10 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 36876-01 Cabinet P1372 Latch 36885-01 Back Panel P2221 Mini-Helic Gauge 34294-02 Filter Door *20. P1367 3/4” x 1” Foam Gasket...
-
Page 12: Troubleshooting Chart
MICRO AIR MC1500 ® CLEAN AIR SYSTEMS TROUBLE SHOOTING CHART CAUTION: BEFORE DISASSEMBLING THE UNIT OR DOING ANY INSPECTING OF THE PARTS, MAKE CERTAIN THAT THE POWER HAS BEEN CUT OFF AND THE BLOWER HAS COME TO A COMPLETE STOP. - Page 13 MC1500 MICRO AIR ® CLEAN AIR SYSTEMS Serial Number: Supply Voltage: Date Installed: Installed By: Notes: L1346 09/18...
