MICRO-AIR TM500 Installation And Operation Manual

Download this manual

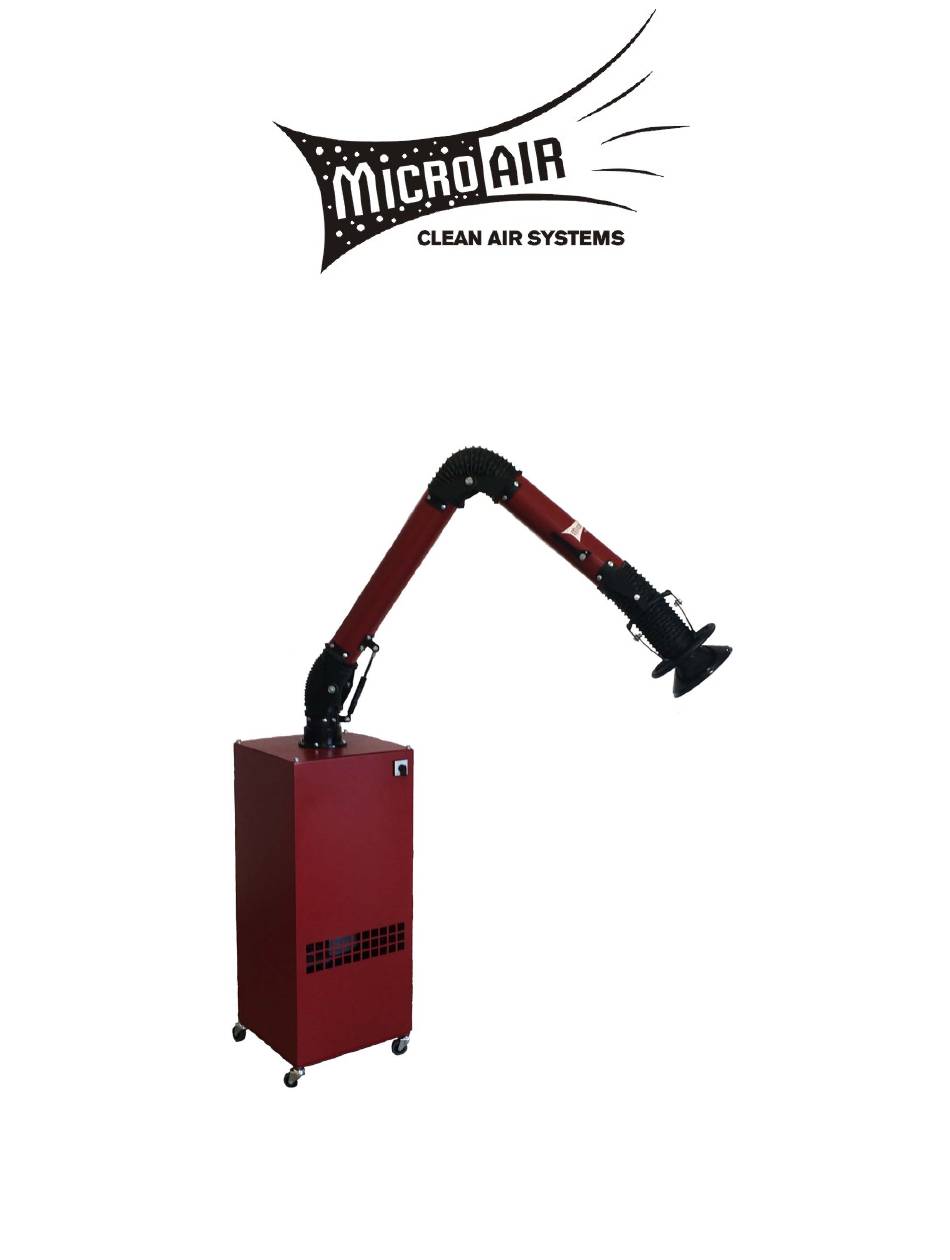

MODEL TM500

Installation and Operation Manual

Important:

This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow

as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or

systems should be instructed how to operate in a safe manner.

Need help?

Do you have a question about the TM500 and is the answer not in the manual?

Page 1 MODEL TM500 Installation and Operation Manual Important: This manual contains specific cautionary statements relative to worker safety. Read this manual thoroughly and follow as directed. It is impossible to list all the hazards of dust control equipment. All persons involved with the equipment or...
Page 2 Periodically adjust the position of the 1. Remove the shipping crate, shipping straps and plastic hood to keep it in maximum capture range. wrapping from the unit. 2. Remove the TM500 from the shipping skid and set on a CHANGING FILTERS: level surface. Caution: 3.
Page 3: General Maintenance
2. No lubrication is required for the motor because it is a permanent pre-lube design. 3. Once per month grease the suction arm base assembly with a bearing grease listed to not react with aluminum. Access Panel Fig. 3 TM500 WIRING DIAGRAM Fig. 4...
Page 4 MICRO AIR TM500 ® CLEAN AIR SYSTEMS 4” DIAMETER ARM ASSEMBLY PARTS LIST Fig. 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION P2463 4” Hood Assembly P2464 Friction Pad P2483 1/4-20 x 1” Hex Head Bolt P2614 5/16-18 x 1” Hex Head Bolt...
Page 5 TM500 MICRO AIR ® CLEAN AIR SYSTEMS TM500 PARTS LIST Fig. 7 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION P2643 95% DOP Filter P3028 Blower Assembly P2644 99.97% Hepa Filter 38907-01 Motor Mounting Plate 38908-01 Access Panel P7122 3/4 HP Motor...
Page 6 MICRO AIR TM500 ® CLEAN AIR SYSTEMS Serial Number: Supply Voltage: Date Installed: Installed By: Notes: L2856 02/21...
