Installing Water heating battery
SAVE VTR 700
GB
Installation instructions
Document in original language | 211599 · A001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVE VTR 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SystemAir SAVE VTR 700

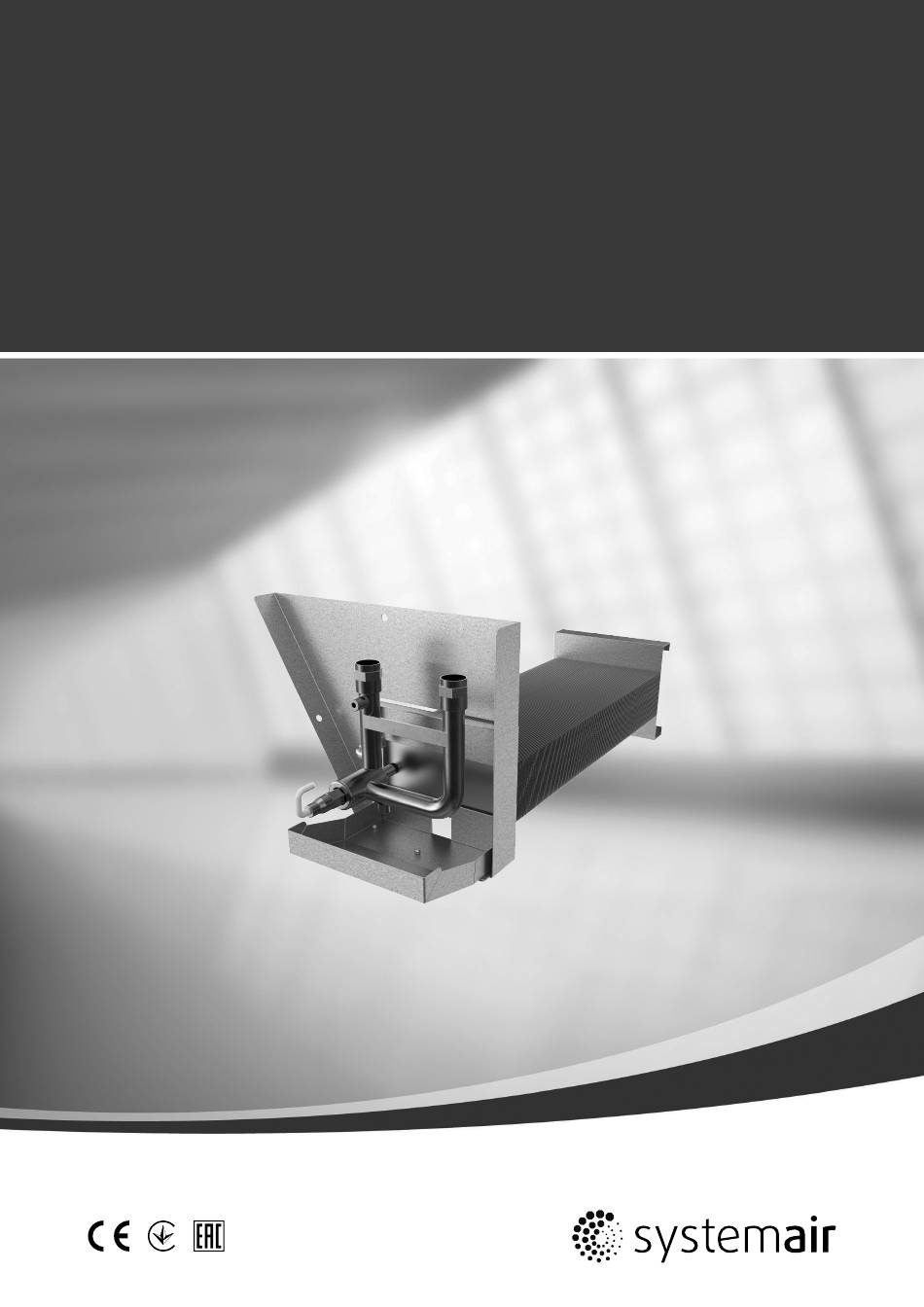

  • Page 1 Installing Water heating battery SAVE VTR 700 Installation instructions Document in original language | 211599 · A001...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service. 211599 | A001...
  • Page 3: Table Of Contents

    Contents Information............1 Installation.............1 Open the front hatch.......1 Remove cover lids ........1 Mount the water heating battery ....2 Connections ...........3 Water system........3 Actuator for valve control......4 Configuration ..........4 211599 | A001...
  • Page 5: Information

    Information | Information A water heating battery, frost protection sensor (already mounted) and instruction are included in this kit. After unpacking, check the contents. If any part is missing or damaged, please contact your place of purchase. Note: Size and design of the water heating battery are different for each SAVE model. Installation Open the front hatch Danger...
  • Page 6: Mount The Water Heating Battery

    | Installation Mount the water heating battery Fig. 2 The water heating battery 1. Outlet 2. Inlet 3. Remove plug and add the frost protection sensor. Tread seal the sensor. 4. Drain screw 5. Bleed screw Installation 1. Pull out inner and outer rubber grommets. Fig.
  • Page 7: Connections

    Connections | Fig. 4 Install the water heating battery 4. Secure the water heater with three previously removed knobs (pos. 1). Lead the frost protection sensor wires through holes in the compartment walls (pos. 2) to the electrical connections compartment. 5.
  • Page 8: Actuator For Valve Control

    | Configuration Max. operating pressure: 0,8 MPa (8 Bar) Important If the water in the water heating battery, then it can burst. If this happens water may leak from the system and cause water damage. If there is a risk of frost the heater must be installed with a circulation pump in a secondary circuit to ensure that a constant flow is achieved in the heater.
  • Page 9 Configuration | 3. Activate the actuator. Go to Components menu, select Heater menu and select type as Water. Choose actuator voltage type. Do advanced settings if necessary. 4. Configure connection of the actuator. Go to Service menu. Select Output menu. In next menu select ANALOG tab. Select the analog output to which the actuator is connected.
  • Page 10 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
