SIM900 Hardware Design
(1) The SIM900 does work, but deviations from the GSM specification may occur.
Table 4 : Coding schemes and maximum net data rates over air interface
Coding scheme
CS-1:
CS-2:
CS-3:
CS-4:

2.2 SIM900 Functional Diagram

The following figure shows a functional diagram of the SIM900 and illustrates the mainly functional part:
The GSM baseband engine
Flash and SRAM
The GSM radio frequency part
The antenna interface
The Other interfaces
SIM900_HD_V1.05
1 Timeslot 2 Timeslot
9.05kbps 18.1kbps
13.4kbps 26.8kbps
15.6kbps 31.2kbps
21.4kbps 42.8kbps

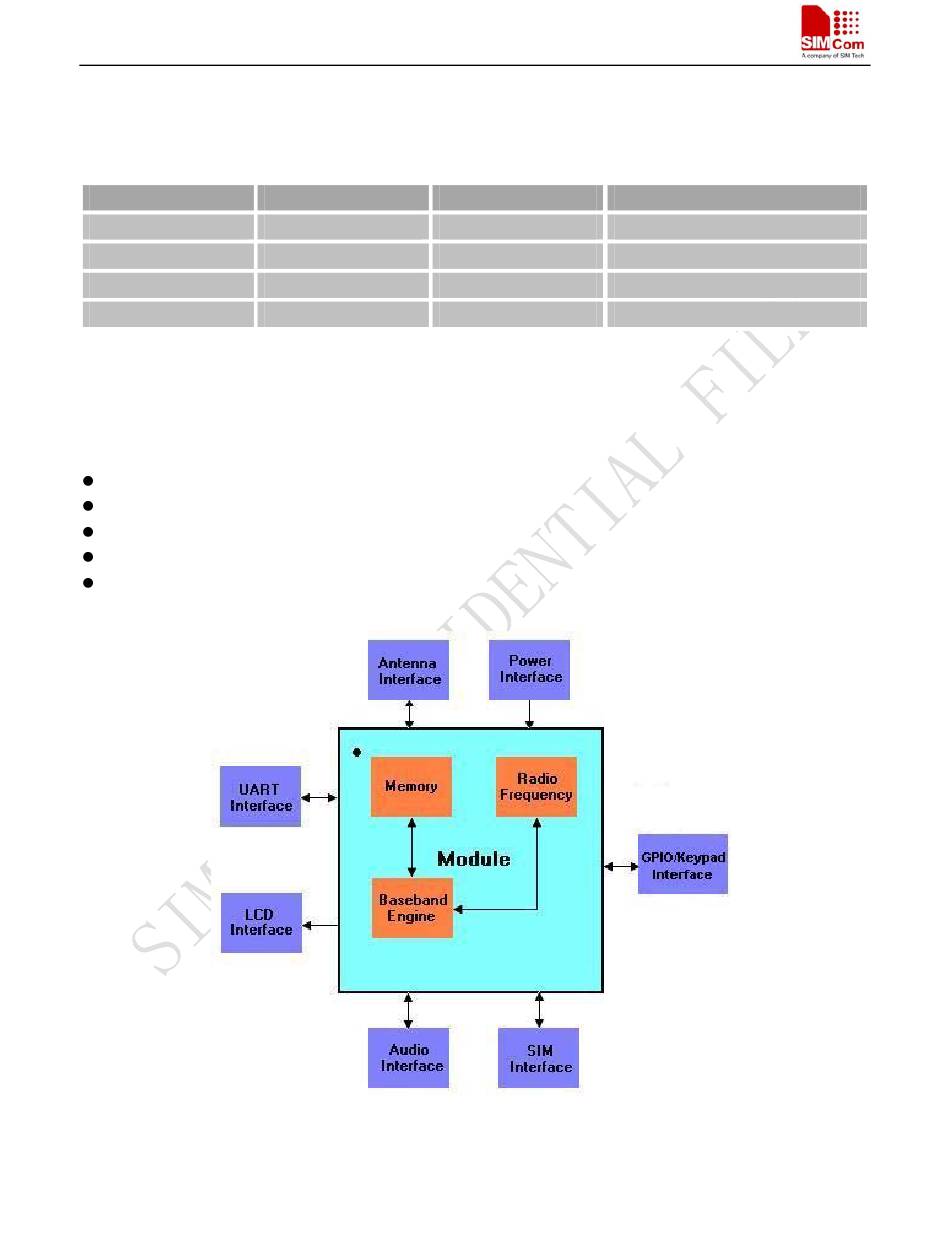

Figure 1: SIM900 functional diagram
4 Timeslot
36.2kbps
53.6kbps
62.4kbps
85.6kbps
