SIM800H Document
Compliance Information
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept
any interference received, including interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause undesired operation. Product that is a radio
transmitter is labeled with FCC ID.
FCC Caution:
(1)Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user authority to operate the equipment.
(5) the modules FCC ID is not visible when installed in the host, or
(6) if the host is marketed so that end users do not have straight forward commonly used methods for access to
remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to
the enclosed module: Contains Transmitter Module FCC ID: UDV-2013072401 or Contains FCC ID:
UDV-2013072401 must be used.
1. SIM800H Description
1.1. Summarize
SIM800H designed by SIMCom is a quad band module which supports GSM/GPRS. The baseband circuit is
based on MTK and RF circuit is based on RFMD. It works at quad bands------GSM850, EGSM900, DCS1800,
and PCS1900. CPU clock is based on 26MHz crystal. The main IC includes MT6260D and RF7176.
1.2. Feature
Quad-Band 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Bluetooth output power class 1
Bluetooth v3.0 with data rates 3.0Mbps
Compliant to GSM phase 2/2+
SIM800H User Manual
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SimCom SIM800H
Summary of Contents for SimCom SIM800H
- Page 1 1. SIM800H Description 1.1. Summarize SIM800H designed by SIMCom is a quad band module which supports GSM/GPRS. The baseband circuit is based on MTK and RF circuit is based on RFMD. It works at quad bands------GSM850, EGSM900, DCS1800, and PCS1900. CPU clock is based on 26MHz crystal. The main IC includes MT6260D and RF7176.
- Page 2 Class 1 (1 W @ 1800/1900MHz) – Dimensions: 15.8*17.8*2.4 mm Weight: 1.25 g Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands) Supply voltage range 3.6~4.2 V Low power consumption Operation temperature:-30~80 88 LGA pads include Interface to external SIM 3V/1.8V...
- Page 3 SIM800H Document 1.3. Pin 33 32 VBAT UART_ VBAT UART UART _DTR _DCD GPIO GPIO PCMIN GPIO ISINK1 STATUS SYNC NETLI BPI_ ISINK0 BUS1 ROW4 COL1 USB_DP ROW0 RESET COL4 VBUS ROW2 ROW3 USB_ SIM_ MIC1P VRTC SPK1P ROW1 COL2...

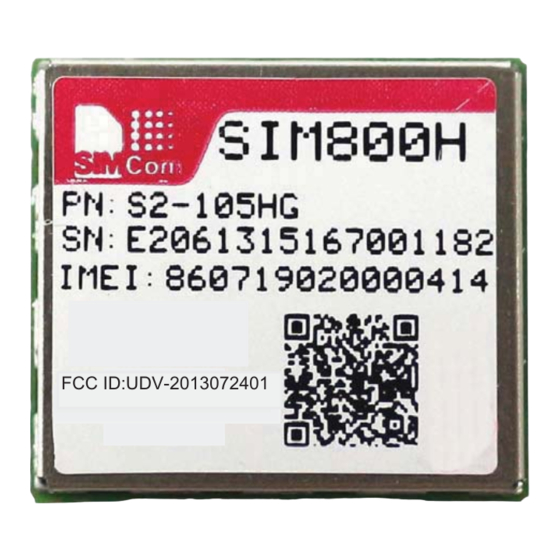

- Page 4 SIM800H Document 1.4. Picture FCC ID:UDV-2013072401 FCC ID:2013-072401 Figure 1: Top and Bottom view of SIM800H 1.5. Dimension Figure 2: Dimention - 4 -...
- Page 5 3. Electrical and Reliability Characteristics 3.1. Absolute Maximum Ratings The absolute maximum ratings stated in following table are stress ratings under non-operating conditions. Stresses beyond any of these limits will cause permanent damage to SIM800H. Table 1: Absolute maximum ratings Symbol...
- Page 6 SIM800H Document Symbol Parameter Unit High-level input current Low-level input current -0.3 High-level input voltage Low-level input voltage * These parameters are for digital interface pins, such as keypad, GPIO, I C, UART, LCD, PWMs and DEBUG. 3.3. SIM Card Interface Characteristics...
- Page 7 SIM800H Document VRTC output current RTC-OUT 3.6. Current Consumption (VBAT = 3.8V) Table 6: Current consumption Symbol Parameter Conditions Value Unit VRTC current VBAT disconnects. Backup battery is 3 V VRTC Power down mode BS-PA-MFRMS=9 Sleep mode BS-PA-MFRMS=5 BS-PA-MFRMS=2 GSM 850...
-
Page 8: Radio Characteristics
VBAT-peak 3.7. Electro-Static Discharge SIM800H is an ESD sensitive component, so more attention should be paid to the procedure of handling and packaging. The ESD test results are shown in the following table. Table 7 : The ESD characteristics (Temperature: 25 , Humidity: 45 %) - Page 9 ±4 ±5 ±6 ±5 ±6 ±5 ±6 19-31 ±5 ±6 Table 9 : SIM800H DCS 1800 and PCS 1900 conducted RF output power DCS1800 PCS1900 Tolerance (dB) for conditions Nominal output power (dBm) Normal Extreme ±2 ±2.5 ±3 ±4 ±3 ±4...
-
Page 10: Antenna Interface
5.1 GSM Antenna Interface There is a GSM antenna pad named RF_ANT for SIM800H the connection of the antenna must be decoupled from DC voltage. This is necessary because the antenna connector is DC coupled to ground via an inductor for ESD protection. - Page 11 SIM800H Document Figure1: GSM antenna matching circuit R101 C101 C102 are the matching circuit, the value should be defined by the antenna design. normally R101 is 0 , C101 C102 are not SMD. The RF connector is used for conducted 5.2 Bluetooth antenna interface...
