Summary of Contents for SimCom GL100
-
Page 1: User Manual
GL100 User Manual GL100 A-GPS Locator User Manual... -
Page 2: Table Of Contents
5 Product Overview......................5 5.1 Appearance........................5 5.2 Button/MINI USB interface Description ................5 5.3 Two three-color LEDs Description.................6 6 GL100 Manager Setup Wizard..................7 7 Device Operation ......................9 7.1 Turn on/ Turn off.......................9 7.2 Select Operating Mode ....................9 8 Displaying the location on map ..................10... -
Page 3: Introduction
GL100 is a powerful A-GPS Locator with mini size, light weight, anti-water and superior sensitive receiving ability, fast TTFF which works on GSM frequencies 850/900/1800/1900. GL100 is designed for many applications such as pets or human body, the specific target to be tracked, the management for specific purpose and target. -
Page 4: Parameters
GL100 User Manual 3 Parameters Technical Specifications Quad-Band:GSM850/900/1800/1900MHz Compliant to GSM phase 2/2+ Class 4 (2W @ 900MHz) Class 1 (1W @ 1800/1900MHz Max out RF power: 33.0dBm±2dBm Dynamic input range: -15 ~ -102dBm Receiving delicacy: Class П RBER≤2％（-102dBm） Stability of frequency: Superior to 2.5ppm Max frequency error: ±0.1ppm... -
Page 5: Gl100 Start-Up
During charging, the red LED 2 is blinking slowly. When the charge is completed, the green LED 2 is lighting. You can also charge the battery by USB cable which connects GL100 with the PC. Charging about 3 hours. Note: Before your first time using the GL100, please full charge the battery. -

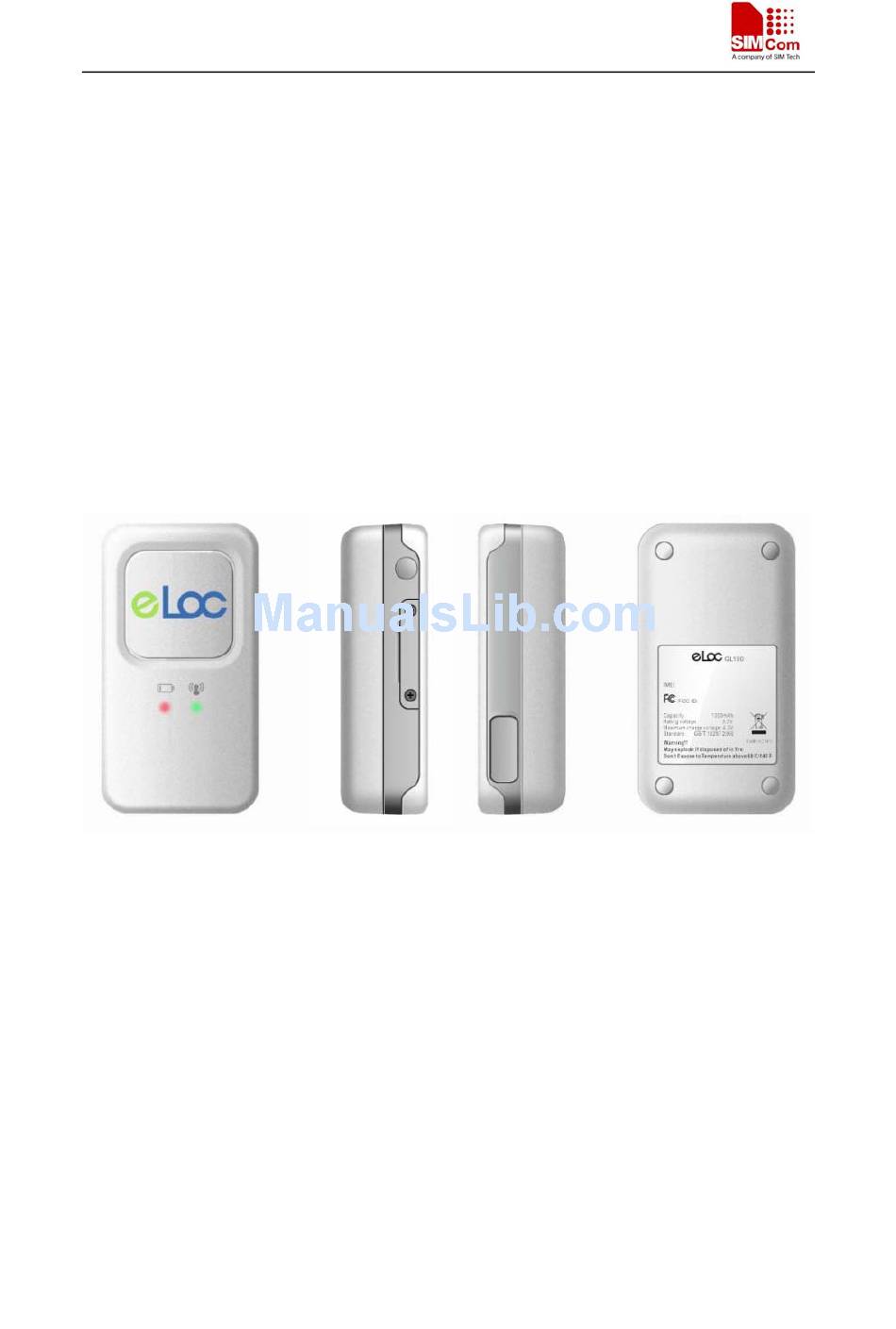

Page 6: Product Overview
Keep pressing the key for 3 sec. to enter the SOS mode MINI USB interface description • Mini Plug in the AC power adapter to this interface for charging battery. • interface By using USB cable to connect GL100 to PC, you can setup its functions from software. -
Page 7: Two Three-Color Leds Description
There are two three-color LEDs in GL100. Each LED shows red, green and blue 3 colors for indicating different state of GL100. In order to be easier to understand the 6 lights, we call them Red LED 1, Green LED 1, Blue LED 1 and Red LED 2, Green LED 2, Blue LED 2. -
Page 8: Gl100 Manager Setup Wizard
GL100 User Manual 6 GL100 Manager Setup Wizard 1. Double click“Pl2303 drive.exe” to install USB-Serial driver. 1. Use Mini USB cable to connect GL100 and PC. 2. Turn on GL100. Double click “GL100 Manager.exe”, 3. Set right Com Number and Baud rate. - Page 9 [Upload]：Read and display the parameters of the terminal. [DownLoad]：Download the parameters to the terminal. Notice: you must select the “Enable Download This Function” selection before you click the “Download” button. [Exit]：Exit the software. Note： For more information, please refer to document “GL100 Manager User Guide”...
-
Page 10: Device Operation
7.1 Turn on/ Turn off • Turn on: Press the Power key at least 3 seconds and release to turn on the GL100. At this time, Red LED 1 will light on for 2~3 seconds. Then Green LED 1 starts to blink quickly to search the GSM network. -
Page 11: Displaying The Location On Map
GL100 User Manual 8 Displaying the location on map When receiving the location information of GL100, you can display the location on map. Open the IE Browser and input http://maps.google.com to link the Google Map website, enter the Latitude and Longitude information which received, you will see the... -
Page 12: Troubleshooting And Safety Info
Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use GL100 on the airplane or near medical equipment.
