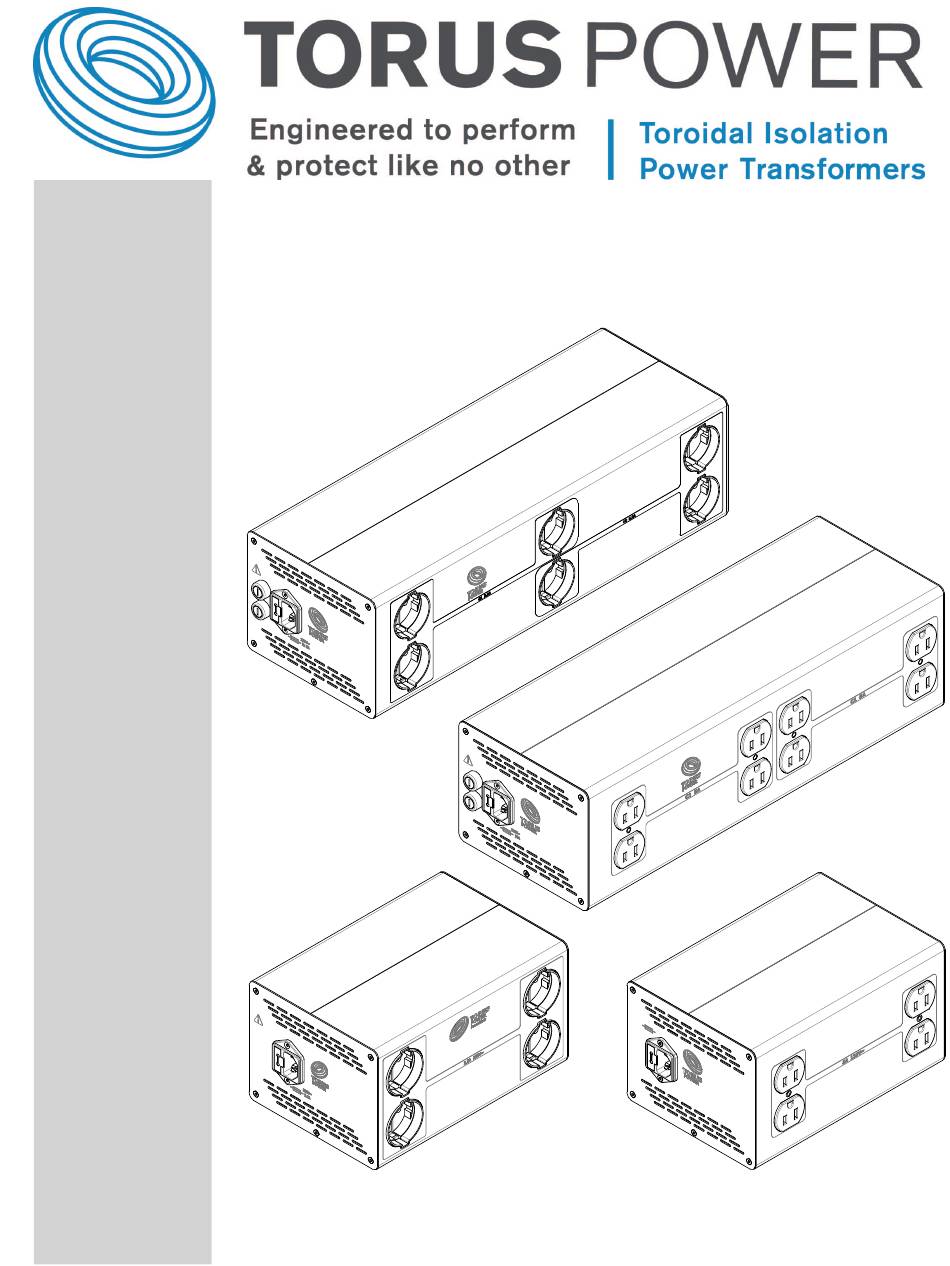

  • Page 1 PowerBlock Series Manual North American and European PowerBlock Models...
  • Page 2 (blank page)
  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions Page 1 Description Page 2 Shipping Carton & Packing Material Page 2 Placement & Ventilation Page 2 Warranty Page 2 Front Panel Layout Page 3 Rear Panel Layout Page 3 Electrical / Mechanical Specifications Page 4 Circuit Protection Page 4...
  • Page 4: Important Safety Instructions

    15. The power switch should be in the “off” position when placed on them or against them. Special attention should connecting or disconnecting equipment from a Torus Power be paid to areas where the plug enters a socket or fused unit.
  • Page 5: Description

    Warranty coverage is not transferrable and original proof of purchase is required for warranty claims. In the event of a warranty claim, Torus Power Inc. will remedy the issue by repair or replacement, as we deem necessary, to restore the product to full performance.
  • Page 6: Front Panel Layout

    Front Panel Layout All European PB CE models (without an added Faceplate Kit) All North American PB models (without an added Faceplate Kit) Rear Panel Layout International PowerBlock Models - CE - Continental Europe Model PB 2 CE Model PB 4 CE North American PowerBlock Models Model PB 5 120V~...
  • Page 7: Electrical / Mechanical Specifications

    Region Specific Power Cords Circuit Protection Thermal Protection Torus Power PB 5 & PB 10 models come with a replaceable Torus PowerBlock models will shutdown if the internal fast acting fuse 5mm x 20mm on the input side of the unit.
  • Page 8: Circuit Schematic: European Pb 2 Ce & Pb 4 Ce

    Circuit Schematic - European Model PB 2 CE PowerBlock Circuit Schematic Power Outlet ( Schuko CEE 7/4 Circuit Schematic - European Model PB 4 CE PowerBlock Circuit Schematic Power Outlet ( Schuko CEE 7/4 www.TorusPower.com Owner’s Manual Power Conditioners Audio / Video Power Isolation Units PB 5-15R Series Manual rev.2019/04/25...
  • Page 9 Circuit Schematic North American Model PB 5 Circuit Schematic North American Model PB 10 www.TorusPower.com Owner’s Manual Power Conditioners Audio / Video Power Isolation Units PB 5-15R Series Manual rev.2019/04/25...
  • Page 10 Layout: models PB 2 CE & PB 5 TOP VIEW Power LED Indicator ON/OFF Power Switch SIDE VIEW - RECEPTACLE SIDE REAR VIEW Power Outlet Power Inlet Schuko CEE 7/4 (Dual fuse for CE models) BOTTOM VIEW This is an installation drawing for the PB 2 CE and PB 5. The four rubber feet at the base of the unit are removable to bolt the unit to a surface.
  • Page 11 Layout: models PB 4 CE & PB 10 Receptacle and Rear Panel of European PB 4 CE model Receptacle and Rear Panel of North American PB 10 model REAR VIEW SIDE VIEW - RECEPTACLE SIDE PB 4 CE BOTTOM VIEW This is an installation drawing for the PB 4 CE and PB 10.
  • Page 12 Torus Power products are marketed worldwide by Torus Power Inc. For sales contact: sales@toruspower.com Phone: (+1) 416-477-4799 Toll free: 1-877-337-9480 Torus Power 2861 Sherwood Heights Drive Technical inquiries: Suite 26 ™ ™ ™ Oakville, ON L6J 7K1 tech@toruspower.com Phone: (+1) 416-477-4799 Toll free: 1-877-337-9480 www.TorusPower.com...
