Leckey Therapy Bench User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Therapy Bench
User Manual
Supporting
Children

Advertisement

Table of Contents
loading

Related Manuals for Leckey Therapy Bench

Summary of Contents for Leckey Therapy Bench

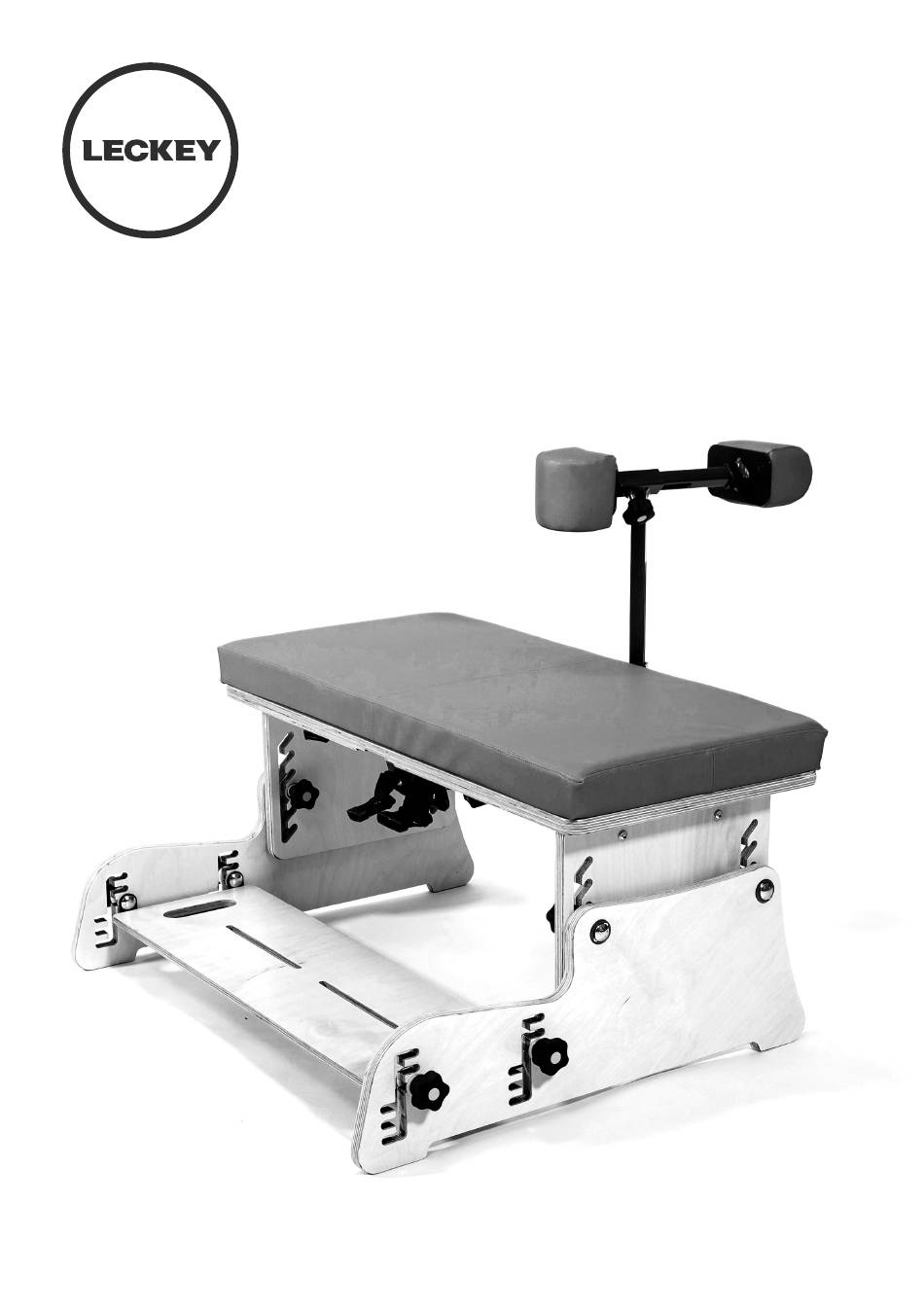

  • Page 1 Therapy Bench User Manual Supporting Children...

  • Page 2: Table Of Contents

    Leckey Therapy Bench Manual CONTENTS 01 Intended Use p.03 02 Declaration of Conformity p.04 03 Terms of Warranty p.04 04 Safety Information p.05 05 Cleaning & Care Information p.06 06 Product Inspection and Servicing p.07 07 Important Guidelines p.08 08 Re-issuing Leckey Products p.08...

  • Page 3: Intended Use

    Section 06 of this user manual to ensure the product is safe to use. James Leckey Design Ltd. cannot accept any responsibility if the product is used outside of its intended use. If in doubt please...

  • Page 4: Declaration Of Conformity

    Bench has been CE marked as a Class 1 medical device. SECTION 03: TERMS OF WARRANTY The warranty for Leckey Therapy Bench applies only when the product is used according to its intended use, following all manufacturer’s specifications. A one year warranty is provided with this James Leckey Design Ltd.

  • Page 5: Safety Information

    – including sources of heat including naked toggles and straps. flames, cigarettes, electric and gas heaters. 6. Do not modify Leckey Therapy Bench or use components other than 12. Do not place hot objects greater Lecky approved components with than 40°C.

  • Page 6: Cleaning & Care Information

    Leckey Therapy Bench Manual SECTION 05: CLEANING & CARE How to Maintain: Height Adjustable Legs and Height adjustable Footrest: • When cleaning Leckey Therapy Bench we recommend that you 1. Ensure the bottom of the use only warm water and a Leckey Therapy Bench base unit non-abrasive detergent.

  • Page 7: Product Inspection And Servicing

    Therapy Back Support are fixed correctly at the desired heights/ depths and ensure the Leckey Therapy Bench is stable and secure before placing the user on. 3. Ensure the Activity cradle is securely fixed to the Leckey Therapy Bench before placing the user in.

  • Page 8: Important Guidelines

    Please exercise caution and monitor the user closely whilst alterations are being made to the Activity cradle. Lifting a user on and off of the Leckey Therapy Bench is an activity which could cause injury to your back. We would recommend you seek...

  • Page 9: Instructions For Use

    Measure the hip for to the correct size before use. Activity Cradle, Asis to Asis Hip circumference. • Make sure the Leckey Therapy Bench and Activity cradle are clean, dry and free from anything that may cause ham to the user before use.
  • Page 10 Ensure that the seat base and for storage. has slotted into the desired position resulting in the bench being level at • To adjust the Leckey Therapy Bench all four points before re-tightening seat base height, simply loosen all four knurled knobs securing the the four knurled knobs on the inner seat base in place.
  • Page 11 Leckey Therapy Bench Manual p11 09.4 Adjusting the seat base height and angle The seat base can be angled both • To angle the bench posteriorly/ laterally and anteriorly/posteriorly anteriorly, tighten the two knurled accommodating any deformities knobs nearest the back of the bench (e.g.
  • Page 12 • The footplate can be completely • To adjust the Leckey Therapy Bench removed if needed. footplate height, simply loosen the four knurled knobs on the outer...
  • Page 13 09.6 Attaching the back support The back support can be attached • To attach the back support, insert to the Leckey Therapy Bench to aid two knurled knobs through the therapists with controlling the bottom arm of the back support...
  • Page 14 Leckey Therapy Bench Manual 09.7 Attaching user in activity cradle and the activity cradle to the seat base There are 4 straps which secure the activity cradle to the bench. Two straps have no buckle and come from the side and attach to the back.
  • Page 15 Leckey Therapy Bench Manual p15 3. Place the child back into the cradle with their bottom over the white stitched line. 4. Fasten the front velcro pad and the front strap around the child’s tummy.
  • Page 16 Leckey Therapy Bench Manual 5. Thread the padded central strap 6. Fold over the added central strap between the front buckle and so that the buckle is now hidden. the child and tighten the buckle This material will protect the child securely.
  • Page 17 Leckey Therapy Bench Manual p17 8. Take hold of the two large buckle straps The harness should be which come from the rear of the corset. tight and hold pelvis Pull them over the child’s inner thigh in neutral. and secure to the buckles at the front of the bench.

  • Page 18: Sizing Information

    Leckey Therapy Bench Manual SECTION 10: SIZING INFORMATION Technical Details Max User Weight 80kg 1-14 Bench Footprint 620mm x 740mm Seat Base Height (from ground) Min 330mm Max 460mm Seat Base Width 620mm Seat Base Depth 360mm Footplate Height (from ground)
  • Page 19 Leckey Therapy Bench Manual p19 NOTES...
  • Page 20 Leckey, 19c Ballinderry Road Lisburn, BT28 2SA (+44) 28 9260 0750 Northern Ireland hello@leckey.com leckey.com LS910-01...
