Leckey MyWay Pedal User Manual

With leckey connect
Hide thumbs Also See for MyWay Pedal:
Table of Contents

Advertisement

Quick Links

Download this manual

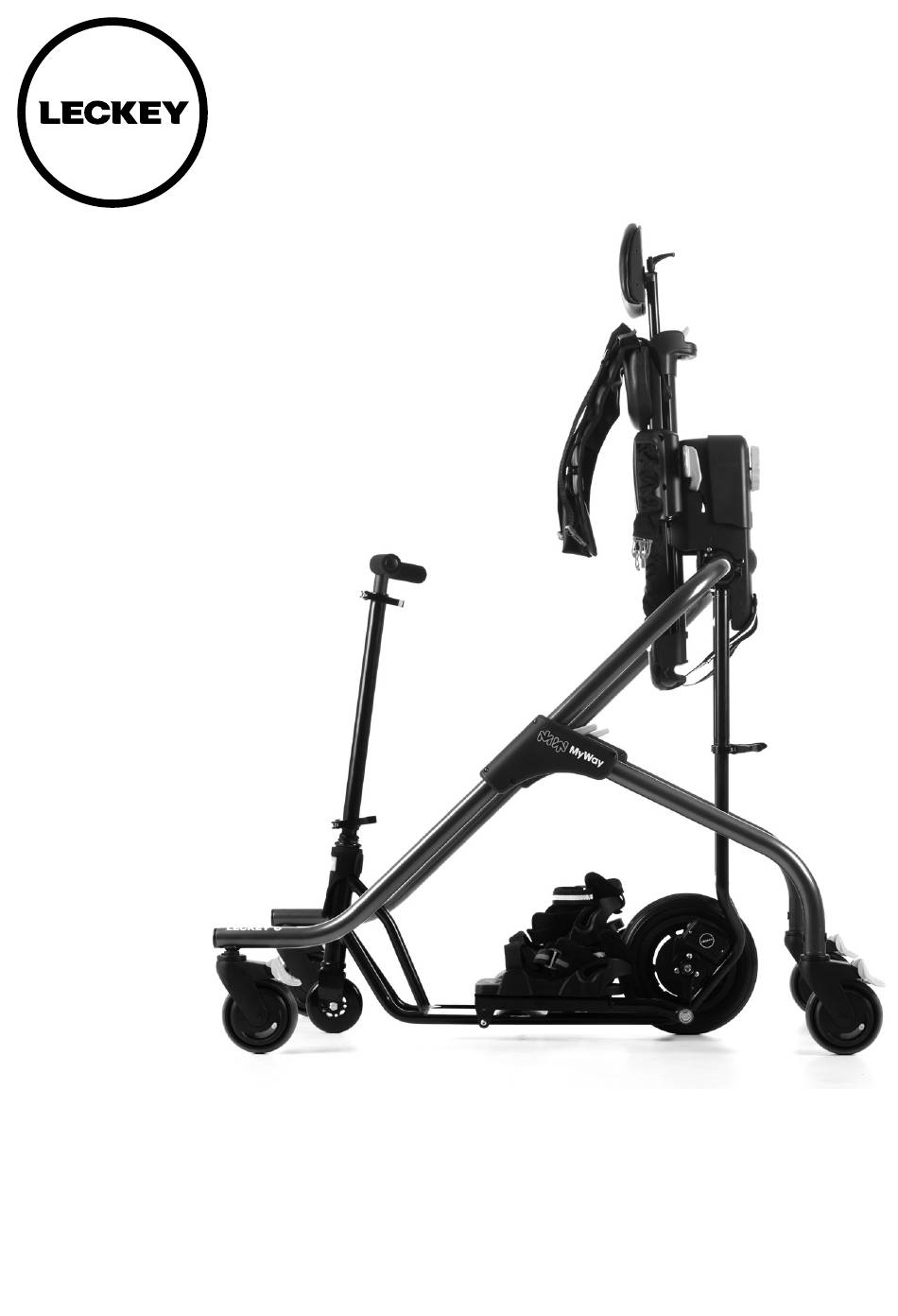

MyWay Pedal
with Leckey Connect
User Manual
Supporting
Children

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MyWay Pedal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leckey MyWay Pedal

Summary of Contents for Leckey MyWay Pedal

  • Page 1 MyWay Pedal with Leckey Connect User Manual Supporting Children...

  • Page 2: Table Of Contents

    07 Contra-indications & cautions p.06 08 Attaching pedal to MyWay & setting up for user p.07 09 Removing user & detaching MyWay Pedal from MyWay p.15 10 Using pedals for the first time p.16 11 Leckey Connect Setup p.17 12 Conduct Endurance Session p.20...

  • Page 3: Intended Use

    GMFCS levels A three year warranty is provided for the II-IV (and possible level V depending on MyWay Pedal, and a one year warranty for range of movement); children displaying the Leckey Connect device. crouch gait involving muscle imbalance/ anti-gravity weakness;...

  • Page 4: Product Training Record

    Leckey MyWay Pedal 5. PRODUCT TRAINING RECORD (Parents, Teachers & Carers) Your Leckey product is a prescribed Class 1 Medical Device and as such Leckey recommend that parents, teachers and carers using the equipment should be made aware of the following...

  • Page 5: Safety Information

    6.2 Users should not be left unattended at 6.11 Leckey products comply with fire safety any time whilst using Leckey equipment. regulations in accordance with EN12182. MyWay Pedal satisfies the requirements of 6.3 Only use Leckey approved components...

  • Page 6: Contra-Indications & Cautions

    • Ensure child does not initially over-use the MyWay Pedal without build-up of tolerance as this presents a risk of muscle strain. • Review use of MyWay Pedal for children with significant learning disability or behavioural issues with risk of possible injury to the child and/or carer.

  • Page 7: Attaching Pedal To Myway & Setting Up For User

    Leckey MyWay Pedal p7 SECTION 08: ATTACHING PEDAL TO MYWAY & SETTING UP FOR USER SECTION 8.1: ATTACH SANDAL Unfasten the knob and remove washers from sandal bolts. For size 2 sandals – feed the bolts through the holes numbered ‘2’ on the MyWay Pedal.
  • Page 8 Leckey MyWay Pedal SECTION 8.2: REMOVE HANDLEBAR Release quick clamp and lift handlebar upwards to remove. If doing with child in product, ensure to protect their face from contacting the handlebar. SECTION 8.3: APPLY COVER TO HANDLE RECEIVER Remove cover from steering column and turn upside down.
  • Page 9 Leckey MyWay Pedal p9 SECTION 8.4: RELEASE H–BRACKET Release the two quick clamps. Slide the h-bracket to its minimum position. SECTION 8.5: TRANSFERRING USER INTO MYWAY There are two scenarios for transferring the user into the MyWay. 1. Transfer user into MyWay before pedals are attached (recommended) 2.
  • Page 10 MyWay frame. (When attaching to S2 MyWay, you will have to slightly lift the MyWay Pedal at the front for the clamps to fit under the MyWay frame horizontal.) Raise H-bracket so that the MyWay frame horizontal nestles in the clamp.
  • Page 11 Leckey MyWay Pedal p11 Ensure the 4 wheels of the MyWay frame and the 2 wheels of the MyWay Pedal are on the ground. If all the MyWay wheels are not, push down on the MyWay frame horizontal to correct .
  • Page 12 Leckey MyWay Pedal SECTION 8.8: ADJUST SANDAL POSITION Loosen the two knobs under the sandal plate. Slide the sandal to the desired position for optimum ease of pedalling. Tighten the two knobs. Ensure the brakes are applied on all wheels of the MyWay frame and the user’s legs are being held...
  • Page 13 Leckey MyWay Pedal p13 SECTION 8.10: ATTACHING SANDAL STRAPS Repeat with the white strap, feeding it over the bridge of the user’s foot. Place the toe strap over the front of the user’s foot and secure the Velcro. The user may require...
  • Page 14 Leckey MyWay Pedal SECTION 8.12: ATTACHING HANDLEBAR Feed the handle bar on to the receiver, aligning the key and slot so that it feeds fully on. Fasten in place by tightening the lever. If doing with child in product, ensure to protect their face from being hit.

  • Page 15: Removing User & Detaching Myway Pedal From Myway

    Leckey MyWay Pedal p15 SECTION 9: REMOVING USER & DETACHING MYWAY PEDAL FROM MYWAY Removing Handlebar Apply cover to handle reciever Remove User Apply the brakes on all 4 wheels. Remove the sandal straps from around the user’s feet. Detach the user from the MyWay and transfer out.

  • Page 16: Using Pedals For The First Time

    Leckey MyWay Pedal SECTION 10: USING PEDALS FOR THE FIRST TIME It’s recommended that you perform a If child displays passive revolution once the child is set up – to ensure all positioning (user height, considerable resistance to sandals, sandal straps) is suitable for movement or shows severe that child.

  • Page 17: Leckey Connect Setup

    Slow Red = LOW Fast Red = EXHAUSTED The battery life is also displayed by the app when you are connected to the MyWay Pedal and running a live session. To ensure optimal performance, we recommend using Duracell Plus AAA batteries.
  • Page 18 Leckey MyWay Pedal SECTION 11.2: Check the Google Play DOWNLOAD APP Store regularly to ensure you’re using the most recent version of the app. Visit the Google Play Store and search for the Leckey Connect app. The Leckey Connect App is...
  • Page 19 Leckey MyWay Pedal p19 SECTION 11.4: CREATE / DELETE CHILD ACCOUNT Once logged in, select add a new child Enter the child’s name and a parent/ guardian’s email address. The parent/guardian will receive an email requesting their consent. Until consent...

  • Page 20: Conduct Endurance Session

    MyWay Pedal device. • When Leckey Connect appears on the screen, select it. • When the calibrating screen appears, rotate the MyWay Pedal wheel a short distance until this screen disappears. The app and MyWay Pedal are now connected. • To begin recording data, press start.
  • Page 21 Your mobile device needs to stay within 10 metres of the MyWay Pedal. If you exceed this distance, the app will lose connection and your session data will be lost. To perform an endurance session with a child for whom you don’t yet have...

  • Page 22: Conduct Sprint Session

    MyWay Pedal device. • When Leckey Connect appears on the screen, select it. • When the calibrating screen appears, rotate the MyWay Pedal wheel a short distance until this screen disappears. The app and MyWay Pedal are now connected. • To begin the session, press yes when prompted.

  • Page 23: Review Previous Sessions

    Leckey MyWay Pedal p23 SECTION 14: REVIEW PREVIOUS SESSIONS • Open the app and enter your login details. • Press select an existing child. • Search for child by scrolling or using the search bar. • Select the child. • Select review a session.
  • Page 24 3. The data can also be effected by the user being positioned asymmetrically in the MyWay, or the MyWay Pedal being positioned off-centre to the MyWay frame. Ensure everything is aligned to get clearer data.

  • Page 25: Logout

    Leckey MyWay Pedal p25 SECTION 15: SECTION 16: LOGOUT RESET PASSWORD On the login screen select trouble Select the menu icon in the top left and select logout. logging in and follow the instructions. SECTION 17: DELETE CHILD ACCOUNT Open the app and enter your login details.

  • Page 26: Reassign Child's Therapist

    Leckey MyWay Pedal SECTION 18: REASSIGN CHILD’S THERAPIST To change a child from one therapist account to another, please contact connectsupport@leckey.com. SECTION 19: DELETE THERAPIST ACCOUNT To delete a therapist account, please contact connectsupport@leckey.com. SECTION 20: WEB PORTAL LOGIN Visit www.leckeyconnect.com,...

  • Page 27: Review Data

    Download the latest version from the Google Play Store and install it. • If you can’t establish a connection between the app and the MyWay Pedal or the connection keeps dropping out, - Ensure the batteries have sufficient power.

  • Page 28: Cleaning And Care Information

    • Make sure the product is dry before use. • Remove staining as quickly as possible with an absorbent cloth, towel or • Do not hose or immerse Leckey Connect sponge. Soap and warm water sponging device. Ensure battery compartment is...

  • Page 29: Daily Inspection

    • Check all adjustment quick-clamps are dealer as soon as possible. securely tightened. • Check handlebar securely attaches to the MyWay Pedal and the adjustment quick-clamp is sufficiently tightened. • Check the wheel and pedal assembly is free moving. • Check the sandal straps for signs of wear and tear.

  • Page 30: Annual Inspection

    Care team or your local dealer as soon as possible. • Check handlebar securely attaches to the MyWay Pedal and the adjustment quick-clamp sufficiently tightens. • Check the wheel and pedal assembly is free moving, without obstruction or noise.

  • Page 31: Re-Issuing

    Leckey MyWay Pedal p31 SECTION 26: RE-ISSUING Most Leckey products are assessed and Warning – If in any doubt ordered to meet the needs of an individual user. Before reissuing a product we to the continued safe use recommend that the therapist prescribing...

  • Page 32: Servicing

    Height 810mm–1050mm trained in the use of the product. Width 310mm In the UK & ROI please contact the Leckey Length 795mm Service Centre on +44 (0) 2892 600750 and our Customer Care Team will be Weight...
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35 NOTES...
  • Page 36 Leckey, 19c Ballinderry Road Lisburn, BT28 2SA (+44) 28 9260 0750 Northern Ireland hello@leckey.com leckey.com LS905-01...
