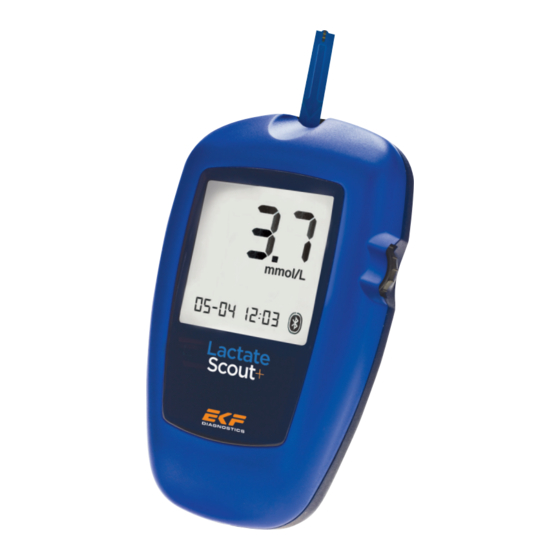

EKF Lactate Scout+ User Manual

Lactate measurement
Hide thumbs
Table of Contents

Advertisement

Quick Links

Lactate Scout+
NEW
Compensated
for hematocrit
Integrated
Bluetooth
TM
Technology
Lactate Scout+
Fast, accurate and reliable
Lactate measurement
Results in 10 seconds
Only 0.2 μl sample volume
Simple to use
Mobile and ergonomic
Diagnostics
for life

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lactate Scout+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EKF Lactate Scout+

Summary of Contents for EKF Lactate Scout+

  • Page 1 Lactate Scout+ Lactate Scout+ Compensated Fast, accurate and reliable for hematocrit Lactate measurement Integrated Bluetooth Technology Results in 10 seconds Only 0.2 μl sample volume Simple to use Mobile and ergonomic Diagnostics for life...
  • Page 2 Easy to use • Insert/remove sensor to turn on/off • Jog dial navigation • Only 0.2 µl of capillary blood required • Pre-calibrated sensors • Device calibrated by simple coding • Lactate measurement, date/time, mode, temperature and memory ID on a single display •...
  • Page 3 Fax: +49 (0) 39203-785-24 EKF-diagnostic GmbH www.ekfdiagnostics.com Ebendorfer Chaussee 3 info@ekfdiagnostics.com 39179 Barleben Manufacturer: Phone: +49 (0) 341-234-18-41 SensLab GmbH User Manual Fax: +49 (0) 341-234-18-40 An EKF Diagnostics Company Bautzner Str. 67 www.senslab.de 04347 Leipzig info@senslab.de Part number 7023-9012-2350 Rev. 2.0–11/2013...
  • Page 4 Lactate Scout+ User Manual Fax: (+49) 0341 - 234 18 40 Valid from serial no. XXXXX02135 www.senslab.de Sales and Support: EKF-diagnostic GmbH Ebendorfer Chaussee 3 D-39179 Barleben Germany This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1, second edition,...
  • Page 5 • O nly undamaged and unused lancets Intended use and safety guidelines and sensors may be used. Used sensors, • T he Lactate Scout+ may only be used lancets and cellulose cloths pose a risk of with the Lactate Scout sensors to infection. These must be safely disposed of determine the lactate concentration in as household waste following use.

  • Page 6: Table Of Contents

    READ INSTRUCTIONS PRIOR TO USE Only use the device for the purpose described in this manual. Do not use any other accessories than those supplied by the manufacturer. Do not use the device in case of malfunction or damage. In case of non-intended use the safety measures for the device may become ineffective. KEEP INSTRUCTIONS FOR USE Not conforming to cautions may lead to serious health damage.
  • Page 7 3. Performing step tests Settings for step tests Afterload timer Timing functions for step tests Test results Turning the device off Deactivate the step test mode 4. Settings Selecting and modifying settings 5. Data storage Transferring data to the PC 6.

  • Page 8: Getting Started

    Getting started Lactate Scout+ analyzer · Insertion slot for the sensor · Display window for the display of test readiness, the blood lactate concentration, warnings and setting options · Scroll wheel for easy operation of the analyser. Scroll up and down to view menu options.

  • Page 9: Inserting The Batteries

    Inserting the batteries Batteries are included with your Lactate Scout+. Two LR03 / AAA (1.5 V) batteries must be inserted prior to the initial use of your Lactate Scout+. Alkaline or zinc carbon batteries can be used. Only use batteries of the same type. If the time to replace the batteries exceeds one minute, the date and time setting will be lost and must be re-entered (see page 20).

  • Page 10: Code Setting

    Getting started Code setting The first time the Lactate Scout+ is used, a two-digit code must be set. This code is printed on the label of the sensor vial. · Turn on the Lactate Scout+ device by pressing the scroll wheel for two seconds. The request to set the code appears on the display (blinking) “set CODE” (1).

  • Page 11: Temperature Sensor

    Temperature sensor Attention: Ensure that the measuring device In order to be able to achieve equally reliable and sensors do not vary considerably from test values under different climatic conditions, each other in temperature prior to a test (e.g. the Lactate Scout+ is equipped with a for winter sports or after storing the sensors in temperature sensor.

  • Page 12: Care And Cleaning, Disposal

    Getting started Care and cleaning The Lactate Scout+ measuring device is an Never insert foreign objects or sensors electronic precision measuring device and must other than Lactate Scout sensors into the be handled and stored with care. It must be insertion slot.

  • Page 14: Taking A Measurement

    Taking a measurement Inserting a sensor Remove a sensor from the dessicant vial. The sensor must be inserted into the insertion slot of the device with the black connection contact surfaces facing up (see right) (1). Regardless of whether the device was on or off before, the test mode is automatically started upon inserting the sensor.
  • Page 15 Attention: Sensors, once removed from the container, must Store the sensors only in the original be used immediately. The sensors must be kept at container and within the specified temperature room temperature with the measuring device at range of -18°C to +8°C. Only remove the sensors least 20 minutes (at least two hours when stored for the purpose of testing.

  • Page 16: Blood Sampling

    Taking a measurement Blood sampling and analysis circular symbol with a progress bar appear Produce a drop of blood with a sterile single on the display as well as the assigned memory use lancet approved for capillary blood space number (4).

  • Page 18: Performing Step Tests

    Performing step tests Settings for step tests Lactate Scout+ allows for the recording of values for step tests. The general procedure for preparation, sampling and measurement is the same as the individual test (see pages 12 - 15). After inserting a sensor and confirmation of test readiness (blinking drop) select the appropriate step test phase for the subject.
  • Page 19 The number of the lactate concentrations recorded per step test phase correlates to the number of conducted tests. The count of tested values occurs separately for every step test phase and is automatically displayed on the screen to the right of the respective step test phase symbol (4).

  • Page 20: Afterload Timer

    Performing step tests Afterload timer Using the Countdown function “COUNT DOWN” preceded by the step duration “DUR”, If you select the test mode “AFL” for an it is possible to set times of up to 10 minutes afterload test, the time in minutes and seconds and to set a signal as they elapse (page 20). elapsed from the last measurement in the step test phase “LOAD” will appear below on the display instead of the time.

  • Page 21: Test Results

    Detailed information on how to perform step Deactivate the step test mode tests can be found in the Lactate Scout+ In order to prevent accidental switching Compendium on the Lactate Scout Info CD or on into the step test mode or if step test the website www.lactatescout.com measurements should always be recorded as single measurements the step test function...

  • Page 22: Settings

    Settings Selecting and modifying settings by activation of this submenu (COUNT DOWN): the count down for the previously selected Settings are made in the "Settings and storage step duration is started. A short signal tone will mode“. The settings are only accessible when sound after each minute and at every second no sensor is inserted.
  • Page 23 Exit settings mode Press for 2 s Enter settings mode Press for 2 s Scroll wheel...
  • Page 24 Settings settings for data transfer, see instructions (set) page 23-25. he speaker volume can be selected (set) using the scroll wheel as described above. The signal intensity is indicated by the speaker symbol being full with three hemispheres (loud), full with one hemisphere (medium) or empty (muted) settings for performing a (set) (CTRL D+S):...

  • Page 25: Data Storage

    Data storage Transferring data to the PC The Lactate Scout+ is capable of the wireless transfer of data to a PC using “Bluetooth ”. The data transfer menu is activated in the setting and storage mode. Press the scroll wheel for two seconds and scroll until “set”...
  • Page 26 Advanced software solutions like the Lactate Scout Assistant software including data management and chart functions for performance analysis are available for purchase from EKF Diagnostics. Attention: The activated Bluetooth module is permanently A detailled description for the initial setup of the Bluetooth TM connection displayed in the setting and storage mode as an is available on the website www.lactatescout.
  • Page 27 In addition to the possibility of transferring in the setting and storage mode, a data transfer is also possible in the test mode with an activated Bluetooth module. Following the test, the Bluetooth module is turned on while the test Display during a test with an (5, 6) values are displayed...

  • Page 28: Troubleshooting

    Troubleshooting Functionality check in dSC mode Activate the submenu Ctrl D+S as described A functionality check should be performed if under settings. In the display the letters "dSC" there are any doubts regarding the accuracy are shown blinking. Insert sensor. The code of the test result or the correct function of the display appears briefly and switches to the device or sensors.Test solutions are available in...
  • Page 29 For test solutions of 10 mmol/L the result is Attention: Never hold the opening of the test evaluated by the device: solution bottle directly up to the sensor as its “OK”: the test result is within the specified contents will become contaminated and unusable. limits, see label of the test solution bottles.

  • Page 30: Error Description, Potential Causes And Solutions

    Troubleshooting Error description, potential causes and solutions Error Description and potential cause Solution Sensor error Use a new sensor from a correctly stored container Faulty sensor due to damage, incorrect storage or sample uptake prior to test readiness Repeat the test with a new sensor. If Error when filling the sensor necessary promote...
  • Page 31 Ensure that the ambient temperature is (+blinking Temperature error within the specification of the device. The temperature is outside the operating range. temperatur symbol) Electronic error inside the device Turn the device off and restart. If the error continues to appear please contact Lactate Scout+ Service.
  • Page 32 Troubleshooting Date bar Blinking date/time bar on the display Set date and time The date/time settings are lost. Battery Battery error Replace batteries symbol, The batteries are nearly empty. blinking Replace batteries. Use only quality Battery error The batteries are empty or expired or low quality batteries.
  • Page 33 Turn on Device fails to turn on Replace batteries. Press scroll wheel > 2 seconds. If the problem persists please contact LactateScout+ Service. No test No drop symbol displayed Insert sensor until it is noticeable in readiness Sensor not inserted properly place with the black contact surface facing up.

  • Page 34: Technical Specifications

    Technical specification Parameter Specification Type of device Lactate Scout+ handheld device for measuring blood lactate (model from SN 0000101115) Sample material Fresh capillary whole blood Sample volume 0.2 μl Measurement range 0.5 mmol/L – 25.0 mmol/L Precision ± 3 % (minimal standard deviation: ± 0.2 mmol/L) for Hct range 35 –...

  • Page 35: Explanation Of Symbols

    Explanation of symbols Symbols on containers and device labels, on instructions included in the packaging and in the operating instructions Symbol Meaning In-vitro diagnostic Product meets the requirements of the Directive regarding in-vitro diagnostics 98/79/EC Manufacturer Follow the operating instructions, read the package information leaflet Intended only for single use Expiration date Batch designation...

  • Page 36: Accessories

    Accessories Purchasing accessories The following accessories are available at EKF diagnostic GmbH or at specialist retailers, as listed on the product website www.lactatescout.com. Item Item no. BigPack 72+: 3 x 24 Lactate Scout+ sensors in sensor containers 7023-3405-0846 BigPack 48+: 2 x 24 Lactate Scout+ sensors in sensor containers...
