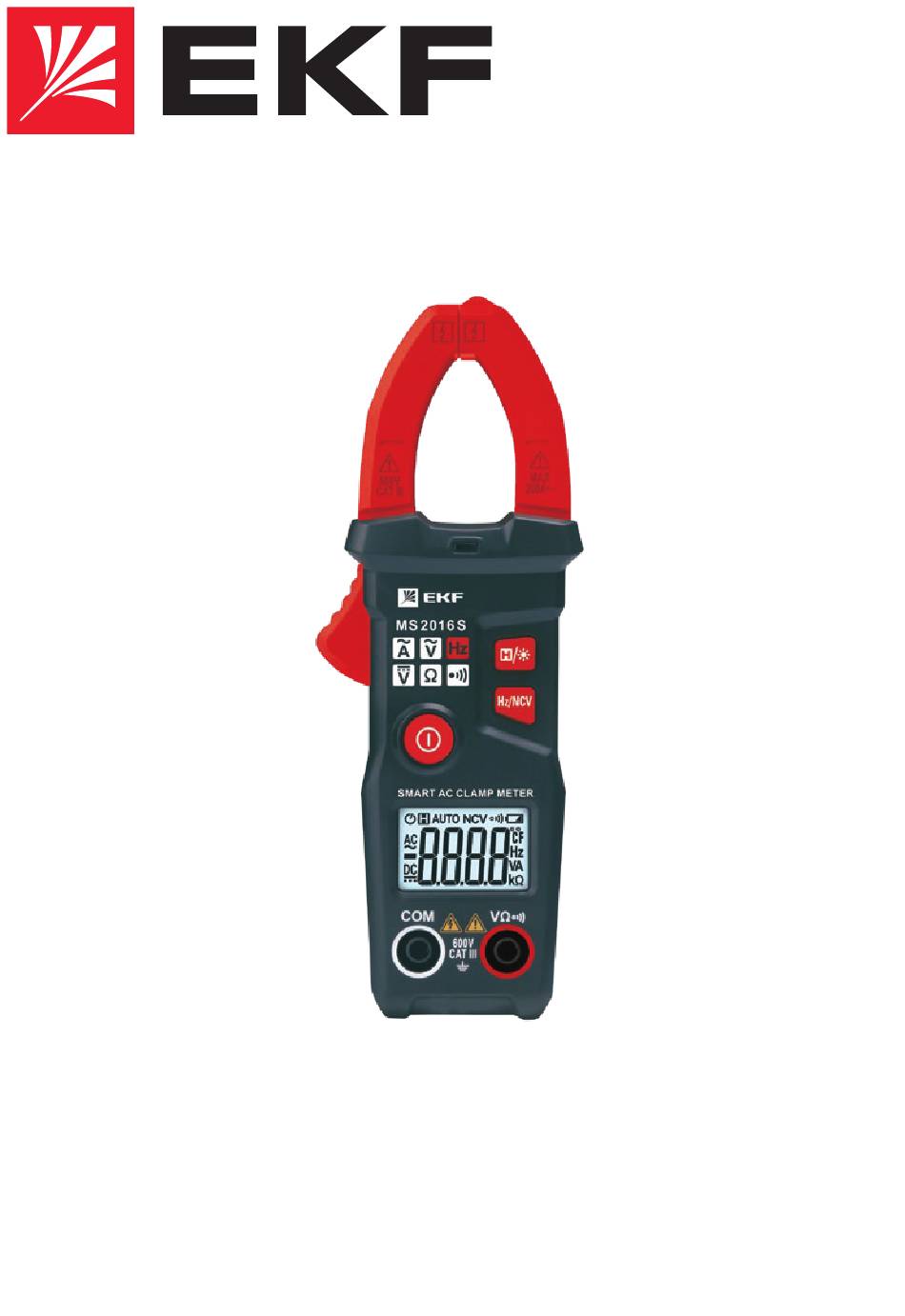

- Page 1 TECHNICAL MANUAL Digital clamp meter MS2016S EKF EXPERT...
-
Page 2: Safety Information
SAFETY INFORMATION The digital clamp meter MS2016S EKF EXPERT complies with IEC 61010-1:2001 in terms of safety requirements, and IEC 61326-2-1:2005 and IEC 61326-2-2:2005 in terms of electromagnetic compatibility. To ensure safe operation of the device, follow the instructions herein. - Page 3 1 DESCRIPTION The digital clamp meter MS2016S EKF EXPERT is a high-quality measuring instrument with a wide range of functions for everyday use: – DC voltage measurement DCV ( ); – AC voltage measurement ACV ( ); – AC measurement (no break in circuit) ACA ( );...
-
Page 4: Front Panel Elements

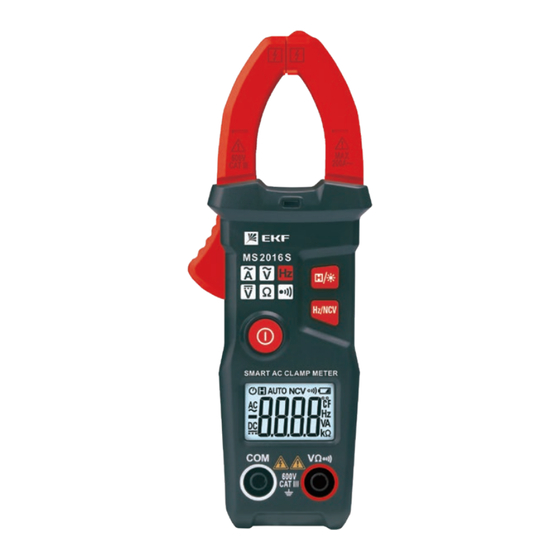

2 FRONT PANEL ELEMENTS MS 2016 S Hz/NCV SMART AC CLAMP METER 600V CATIII Fig. 1 - front panel elements 1. Non-contact voltage tester 6. «ON/OFF» button to power on/off the 2. « » button for data hold / backlight device 3. -
Page 5: Technical Data
3 TECHNICAL DATA Table 2 Parameter Value Maximum display value 6000 with automatic polarity detection Measurement method Double-integrated ADC Measuring rate 3 measurements per second Overload indicator «OL» or «-OL» on LCD-display Low battery indicator Symbol on LCD display Polarity indicator symbol «... -
Page 6: Alternating Current
ALTERNATING CURRENT FREQUENCY Range Resolution Accuracy Range Resolution Accuracy 6 А 0,001 А 60 Hz 0,1 Hz ±1,0% ± 5D 60 А 0,01 А ±2,5% ± 8D 1000 Hz 1 Hz 200 А 0,1 А Frequency range: 40 Hz – 1000 Hz Range for input signal ≥... -
Page 7: Non-Contact Voltage Detection
ALTERNATING CURRENT( ) / FREQUENCY (Hz) MEASUREMENT 1. Press the clamp opening trigger, and place the target between clamps. 2. If the measured current is 0,01 A or more, the display shows the measured current value. Press the button «Hz/NCV» to display the frequency value (Hz) of the measured current. Note: The device can measure frequency only if the current exceeds 0,2 A. -
Page 8: Scope Of Delivery
5 SCOPE OF DELIVERY 1. Clamp meter – 1 pc.; 2. Set of probes (red/black)- 1pc.; 3. Battery 1.5 V – 2 pcs.; 4. Case – 1 pc.; 5. Technical and operation manual – 1 pc. 6 TRANSPORTATION AND STORAGE The product shall be transported in compliance with the transportation regulations applicable to each means of transport. -
Page 9: Manufacturer's Warranty
Importer and EKF trademark service representative: EKF ELECTRICAL SOLUTION – FZCO, Dubai Silicon Oasis, DDP, Building A2, Dubai, United Arab Emirates. Importer and EKF trademark service representative on the territory of the Russian Federation: OOO «Electroresheniya», Otradnaya st., 2b bld. 9, 5th floor, 127273, Mos- cow, Russia. -
Page 10: Certificate Of Acceptance
9 CERTIFICATE OF ACCEPTANCE The digital clamp meter MS2016S EKF EXPERT has been manufactured in compliance with laws and regulations in force and has been approved for operation. Quality control stamp Date of manufacture: For information, refer to the product package.
