23780042
Keypad Deadbolt
Contents
Keypad Deadbolt (BE365) .................................... 2
Lock Parts........................................................2
Standard Operation .........................................2
Replacing the Battery ......................................3
Emergency Key Override ..................................3
Emergency Lock Override ................................3

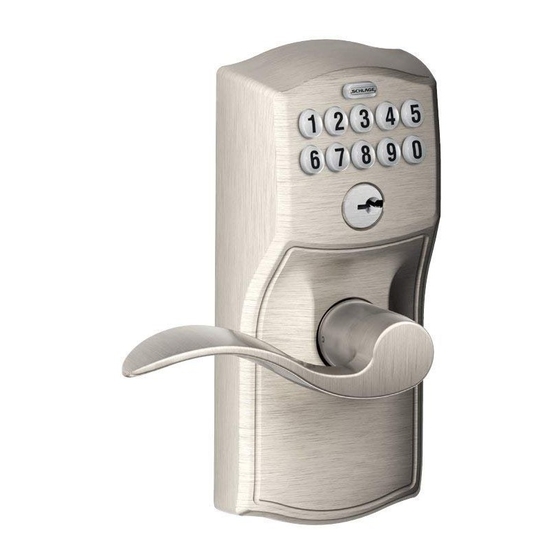

Keypad Lock (FE575 and FE595) ..........................4
Lock Parts........................................................4
Standard Operation .........................................4
Emergency Key Override ..................................5
Replacing the Battery ......................................5
Restore Factory Settings ...................................... 6
Troubleshooting .................................................... 6
Glossary ................................................................. 7
My Codes ............................................................... 8
Keypad Locks
User Guide
(BE365)
Keypad Lock
(FE575, FE595)
Need Help?
Visit our web site for videos, FAQs and more. Please
contact Customer Service before returning the lock.
keypad.schlage.com
Calling From:
U.S.A.: (888) 805-9837
Canada: (800) 997-4734
Mexico: 018005067866
©2011 Schlage Lock Company
23780042 Rev. 01/11-a
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand Schlage BE365
Summary of Contents for Ingersoll-Rand Schlage BE365
- Page 1 Keypad Locks User Guide 23780042 Keypad Deadbolt Keypad Lock (BE365) (FE575, FE595) Contents Need Help? Keypad Deadbolt (BE365) ........2 Visit our web site for videos, FAQs and more. Please contact Customer Service before returning the lock. Lock Parts............2 Standard Operation .........2 keypad.schlage.com Replacing the Battery ........3 Calling From:...
- Page 2 Keypad Deadbolt (BE365) Lock Parts Keypad Keypad • Used to enter codes for programming and unlocking. See the Keypad Locks Programming Guide for more information. Outside Thumbturn Outside Thumbturn • Used to unlock the lock after a valid User Code has been entered, or to lock the lock after the Schlage button has Cylinder been pressed.
- Page 3 Replacing the Battery 2. Replace the battery. 3. Re-tuck wires so they will not be 1. Remove the inside cover. crimped. Replace the cover. Emergency Key Override Emergency Key Override can be used to gain access when the battery is completely dead, when no valid User Code is known or when Emergency Lock Override is engaged.
- Page 4 Keypad Lock (FE575 and FE595) Lock Parts Keypad Keypad • Located on the outside of the lock. • Used to enter codes for programming and unlocking. Lever Lever • The inside lever can be rotated at any time to retract Cylinder the latch.
- Page 5 Emergency Key Override Emergency Key Override can be used when the battery is completely dead, or when no valid User Code is known. 2. Rotate key 270° to unlock. 3. Rotate knob/lever to open 1. Insert key. door.* * Rotate the key back to starting position to relock. The key cannot be removed from the cylinder while the lock is unlocked. See Replacing the Battery on page 5 or Restore Factory Settings on page 6 for more information.
- Page 6 Restore Factory Settings WARNING: Locate the default programming and User Codes on the front of the Keypad Locks Programming Guide or the back of the keypad before beginning! Default programming and User Codes will be restored. All existing User Codes and current Programming Code will be erased. Customer Service cannot retrieve lost default codes! Do not restore factory settings unless you can locate the default codes.
- Page 7 Problem Beeps* Lights Solution Cannot add a new User Code. 19 User Codes already exist. Delete a User Code before adding High/Low a new one. See the Keypad Locks Programming Guide. Second User Code entered did not match first User Code entered.
- Page 8 My Codes Use these tables to record programming and User Codes that you program into the lock. For programming instructions and default codes, see the Keypad Locks Programming Guide. Use a pencil to enter the codes in the boxes so you can easily change them later. Programming Code Date Programming Code...
